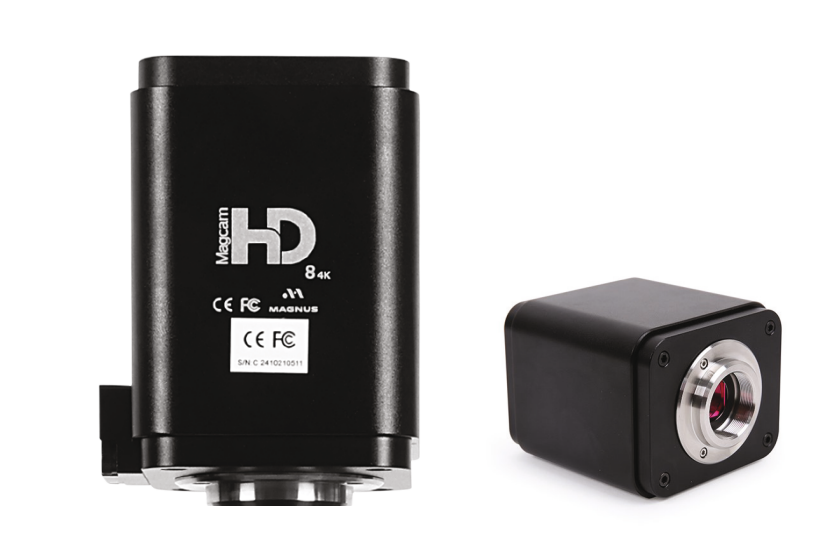

Magnus MagCam HD 8 (4K HDMI) Digital Microscope Camera, 8MP Sony back-illuminated CMOS sensor
Catalog No :
CAS Number :
Brand :
In Stock
Standard package includes:
8MP 4K HDMI Camera
HDMI cable
4GB SD card
Calibration slide
MagVision Software
Mouse
0.5× C-mount adapter
Specifications:
| Application | microscopy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscope Accessory | ||
| Product Brand | Magnus | ||
| Product Grade | Analytical grade | ||
The Magnus MagCam HD 8 (4K HDMI) Digital Microscope Camera is a high-definition imaging solution designed for digital teaching, live microscopy demonstration, and high-resolution documentation. Featuring an advanced Sony back-illuminated CMOS sensor, this camera provides ultra-clear 4K output directly to an HDMI monitor without requiring a PC, making it ideal for classrooms, training laboratories, and research environments.
With multiple output interfaces (HDMI, USB, SD card), high frame rates, and included MagVision software for measurement and analysis, the MagCam HD 8 offers a complete imaging package for modern microscopy workflows.
Key Features
- High-definition 4K HDMI microscope camera for live teaching and imaging
- Direct HDMI monitor connection without PC requirement
- High-resolution 8MP Sony back-illuminated CMOS sensor
- Ultra-smooth live video output up to 75 fps
- Multiple output options: HDMI, USB, SD card recording
- Includes 0.5× C-mount adapter for wide field imaging
- Supplied with MagVision software for measurement and annotation
- Supports calibration, scale bars, image comparison, and enhancement tools
Camera Specifications
| Parameter | Specification |
|---|---|
| Camera Type | HDMI CMOS Digital Microscope Camera |
| Model | MagCam HD 8 (4K HDMI) |
| Sensor | Sony Back-Illuminated CMOS |
| Resolution | 3840 × 2160 (4K UHD) |
| Megapixels | 8 MP |
| Frame Rate Output | 75 fps (Video), 60 fps (HDMI 2.0), 30 fps (USB 3.0) |
| Exposure Time | 0.048 – 1000 ms |
| Output Slots | USB 3.0 / HDMI / SD Card |
| Storage Included | 4GB SD Card |
Optical Interface
| Feature | Specification |
|---|---|
| Mount Type | C-Mount |
| Adapter Included | 0.5× C-Mount Adapter |
Software & Imaging Tools
The camera is supplied with MagVision Software, offering:
- Point-to-point measurement
- Calibration and micrometry
- Scale bar insertion
- Image comparison tools
- Auto white balance
- Brightness, contrast, and gamma adjustment
Packing Contents
Standard package includes:
- 8MP 4K HDMI Camera
- HDMI cable
- 4GB SD card
- Calibration slide
- MagVision Software
- Mouse
- 0.5× C-mount adapter
System Requirements
For PC-based operation via USB:
- CPU: Core 2 / i3 / i5 / i7
- Minimum RAM: 2 GB
- Compatible with Windows and Mac (USB interface)
Additional requirements:
- C-mount or eyepiece mount microscope interface
- Monitor or computer/laptop for display and capture
Operating Conditions
| Parameter | Specification |
|---|---|
| Operating Temperature | +10°C to +50°C |
Applications
The MagCam HD 8 is ideal for:
- Digital classroom microscopy and teaching labs
- Live specimen demonstration on HDMI monitors
- Research documentation and imaging workflows
- Cell biology, parasitology, histology, and materials science
- High-resolution photo and video capture in microscopy
The Magnus MagCam HD 8 (4K HDMI) Digital Microscope Camera is a powerful solution for laboratories and institutions seeking high-resolution imaging, smooth real-time display, and professional measurement capabilities. With direct HDMI output, advanced CMOS sensor technology, and complete software support, it is an excellent choice for digital teaching, research documentation, and modern microscopy imaging applications.
