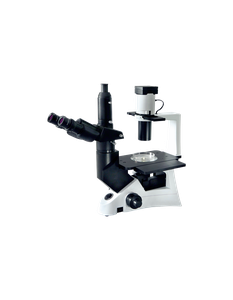

Magnus Inverted Tissue Culture Trinocular Microscope
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Cell culture, microscopy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Cell Culture | ||
The Magnus INVI Inverted Tissue Culture Trinocular Microscope is a high-performance microscope designed for brightfield and phase contrast observation of living cells in culture vessels. With its inverted optical configuration, long working distance objectives, and pre-centered phase contrast system, the INVI is ideally suited for routine cell culture monitoring, biomedical research, and advanced tissue culture applications.
Equipped with a trinocular port for camera attachment, this microscope supports both visual observation and digital documentation, making it an excellent choice for research laboratories, IVF centers, and cell biology facilities.
Key Features
- Inverted trinocular microscope for tissue culture applications
- Suitable for brightfield and phase contrast microscopy
- Ergonomic binocular head with 30° inclination
- Trinocular port integrated as standard for camera attachment
- Long working distance Plan Infinity objectives for culture vessels
- Pre-centered phase annulus for accurate phase contrast imaging
- Quintuple revolving nosepiece for multiple objective configurations
- Coaxial coarse and fine focusing with smooth precision control
- Large plain stage with glass insert and auxiliary stage support
- Excellent field flatness and sharp contrast across the viewing area
Optical & Mechanical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Inverted Tissue Culture Trinocular Microscope |
| Model Options | INVI (HL) / INVI (LED) |
| Observation Methods | Brightfield, Phase Contrast |
| Head Type | Trinocular, 30° inclined |
| Interpupillary Distance | 48 – 75 mm |
| Nosepiece | Quintuple revolving |
Illumination Options
| Model | Light Source |
|---|---|
| INVI (HL) | 6V 30W Halogen illuminator |
| INVI (LED) | LED illumination (replaces halogen) |
LED illumination offers longer life, lower heat output, and energy efficiency.
Focusing System
| Feature | Specification |
|---|---|
| Coarse Focus Stroke | 37.7 mm per rotation |
| Fine Focus Stroke | 0.2 mm per rotation |
| Control Type | Coaxial coarse and fine adjustment |
Stage & Condenser
| Component | Specification |
|---|---|
| Plain Stage Size | 160 × 250 mm with glass insert |
| Auxiliary Stage | 70 × 180 mm |
| Condenser | LWD 72 mm (Long Working Distance) |
Objective Configuration (Standard Set)
Brightfield Plan Infinity Objectives
- 4× / 0.10 (W.D. 18 mm)
- 40× / 0.60 (W.D. 2.6 mm, Cover Glass 1.2 mm)
Phase Contrast Objectives
- 10× / 0.25 (W.D. 10 mm)
- 20× / 0.40 (W.D. 5.1 mm)
Phase Annulus Plate
- Supports phase contrast for 10×, 20×, and 40×
Eyepieces
- High eyepoint extra widefield eyepiece
- EW 10× (Field Number 22 mm)
Applications
The Magnus INVI microscope is ideal for:
- Routine tissue culture monitoring
- Live cell imaging in flasks and culture plates
- Cell biology and biomedical research
- IVF and reproductive medicine laboratories
- Phase contrast observation of unstained living cells
- Research documentation using microscope cameras
Ordering Information
| Model | Description | Illumination |
|---|---|---|
| INVI (HL) | Inverted Tissue Culture Trinocular Microscope | Halogen (6V 30W) |
| INVI (LED) | Inverted Tissue Culture Trinocular Microscope | LED illumination |
The Magnus INVI Inverted Tissue Culture Trinocular Microscope is a robust and versatile platform for brightfield and phase contrast observation of live cells in culture. With long working distance infinity optics, pre-centered phase contrast components, a trinocular imaging port, and optional LED illumination, it is an excellent choice for modern cell culture laboratories requiring reliable performance, excellent image clarity, and documentation capability.
- Illumination Type: LED illumination Halogen (6V 30W)
