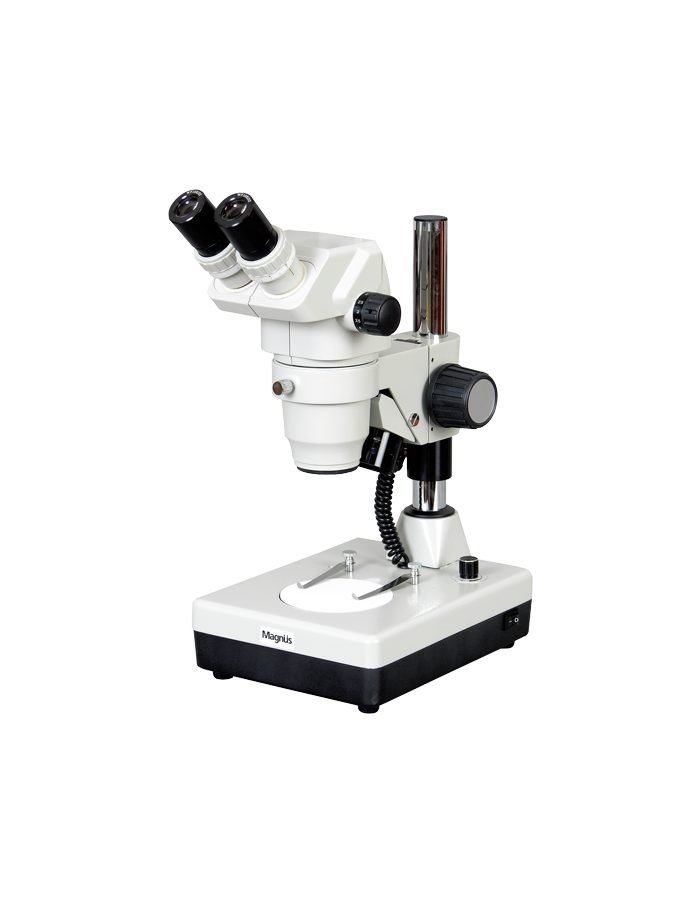

The Magnus MSZ-BI Zoom Stereo Binocular Microscope is a high-performance stereoscopic microscope designed for precision observation, inspection, and dissection applications. Featuring a wide zoom range, large visual field, and comfortable binocular viewing, this instrument delivers sharp three-dimensional images ideal for laboratory, industrial, and educational environments.
With a 1:7 zoom ratio and integrated incident and transmitted illumination, the MSZ-BI is well suited for medical applications, gem inspection, electronics assembly, and precision mechanical component analysis.
Key Features
- High-quality stereo binocular microscope for true 3D observation
- 45° inclined binocular head for ergonomic and fatigue-free viewing
- Smooth zoom magnification with 1:7 zoom ratio
- Magnification range 6.5× to 45× (with 10× eyepieces)
- Paired widefield eyepieces SWF 10×/22 mm
- Large visual field with high diopter adjustment
- Long working distance of 100 mm for easy sample handling
- Integrated illumination stand with incident and transmitted lighting
- Suitable for medical, industrial, and research inspection workflows
Optical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Zoom Stereo Binocular Microscope |
| Model | MSZ-BI |
| Viewing Head | Binocular, 45° inclined |
| Zoom Ratio | 1:7 |
| Objective Zoom Range | 0.65× – 4.5× |
| Total Magnification Range | 6.5× – 45× (with 10× eyepieces) |
| Eyepieces | SWF 10× / 22 mm widefield |
| Working Distance | 100 mm |
| Visual Field | Large field, high diopter adjustment |
Illumination System
The MSZ-BI is supplied with an integrated light stand featuring both reflected and transmitted illumination:
- Incident illumination: 6V 15W Halogen lamp with reflector
- Transmitted illumination: 5W fluorescence lamp
This dual lighting configuration supports surface inspection as well as transmitted-light specimen observation.
Applications
The Magnus MSZ-BI is widely used for:
- Medical and biological dissection work
- Parasitology and specimen observation
- Gemstone and jewelry inspection
- Electronics component examination
- Precision machinery inspection and quality control
- Educational and research laboratory use
Ordering Information
| Model | Description | Illumination Type |
|---|---|---|
| MSZ-BI | Zoom Stereo Binocular Microscope, standard configuration | Halogen + Fluorescence lighting |
| MSZ-BI (LED) | Zoom Stereo Binocular Microscope, LED version | LED illumination (replaces standard light source) |
LED Version Advantages
The MSZ-BI (LED) model offers the same optical performance as the standard MSZ-BI, with upgraded illumination providing:
- Longer operational lifetime
- Lower heat generation
- Reduced energy consumption
- Stable, uniform brightness
The Magnus MSZ-BI Zoom Stereo Binocular Microscope is a versatile and reliable solution for laboratories and industries requiring high-quality stereoscopic magnification, ergonomic viewing, and integrated illumination. With its wide zoom range, long working distance, and optional LED upgrade, the MSZ-BI is an excellent choice for detailed inspection, dissection, and precision observation across medical, research, and industrial applications.
No resources are currently available for this product.
