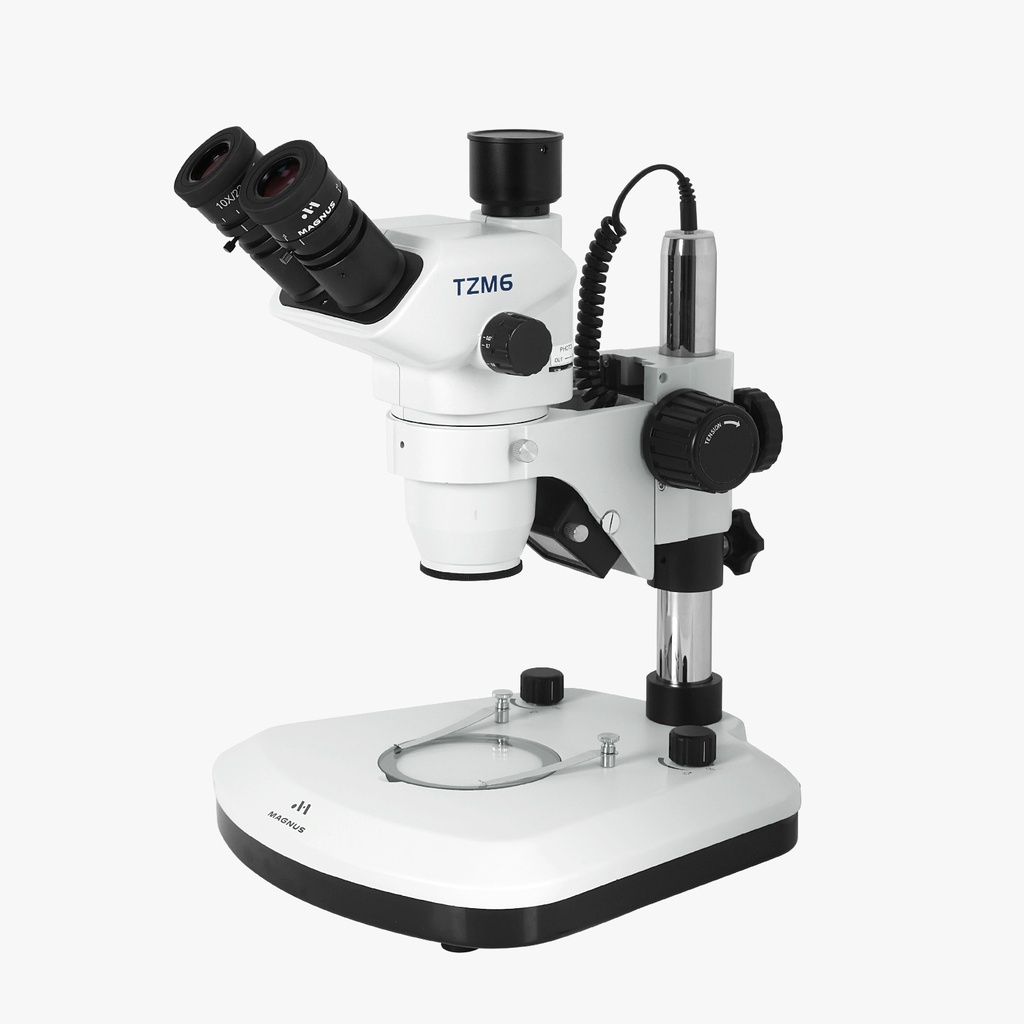

MagZoom TZM 6 Trinocular Stereo Zoom Microscope for IVF, Nematodes & Zebrafish Applications
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | microscopy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Analytical grade | ||
The MagZoom TZM 6 Trinocular Stereo Zoom Microscope is a precision stereomicroscope designed for advanced life science applications requiring both stereoscopic observation and imaging documentation. Optimized for IVF procedures, nematode handling, and zebrafish research, the TZM 6 features a trinocular viewing head for camera attachment, smooth zoom magnification, and transmitted halogen illumination for excellent contrast when working with transparent specimens.
With ergonomic design, stable focusing, and a wide magnification range, the TZM 6 is an ideal solution for embryology laboratories, developmental biology research centers, and model organism facilities.
Key Features
- Trinocular stereo zoom microscope for observation and imaging
- Designed for IVF workflows and model organism research
- Smooth zoom system with 1:6.7 zoom ratio
- Magnification range 6.7× to 45×
- Ergonomic 45° inclined trinocular observation tube
- Camera-ready trinocular port for documentation
- Adjustable interpupillary distance (IPD) for user comfort
- Diopter adjustment for precise visual correction
- Built-in 1× objective with long working distance
- Transmitted halogen illumination with reflector mirror and glass plate
- Rack-and-pinion coarse focusing drive for stable specimen manipulation
- Supplied with widefield eyepieces and dust cover
Optical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Trinocular Stereo Zoom Microscope |
| Model | MagZoom TZM 6 (IVF / Nematodes / Zebrafish) |
| Viewing Head | Trinocular, 45° inclined |
| Zoom Ratio | 1:6.7 |
| Objective | Built-in 1× objective |
| Magnification Range | 6.7× – 45× (with 10× eyepieces) |
| Eyepieces | Paired Widefield WF 10× / 22 mm |
| Interpupillary Distance (IPD) | 54 – 76 mm |
| Diopter Adjustment | ±5 mm |
Illumination System
| Feature | Specification |
|---|---|
| Lighting Type | Transmitted illumination |
| Light Source | 6V 20W Halogen with reflector mirror |
| Stage Component | Glass plate for transmitted-light observation |
This illumination configuration is ideal for embryos, larvae, and other transparent biological specimens.
Focusing System & Accessories
- Rack-and-pinion coarse focusing drive
- Stable focusing for micromanipulation workflows
- Dust cover included for protection when not in use
Typical Applications
The MagZoom TZM 6 is ideal for:
- IVF and embryology procedures with imaging support
- Zebrafish embryo observation and documentation
- Nematode (C. elegans) screening and handling
- Developmental biology and genetics research
- Transparent specimen manipulation and preparation
- Teaching and training laboratories requiring stereoscopic imaging
The MagZoom TZM 6 Trinocular Stereo Zoom Microscope is a reliable and versatile solution for IVF laboratories and research facilities working with nematodes, zebrafish embryos, and other delicate model organisms. With its trinocular imaging capability, smooth zoom magnification, and high-contrast transmitted halogen illumination, it provides the clarity, stability, and documentation support required for advanced life science research and embryology workflows.
