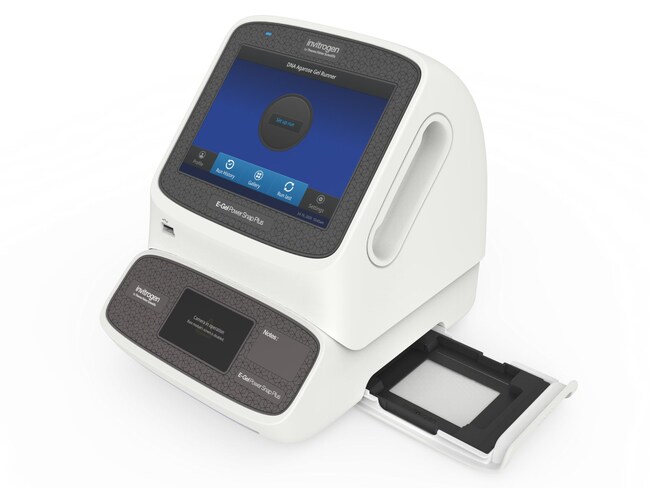

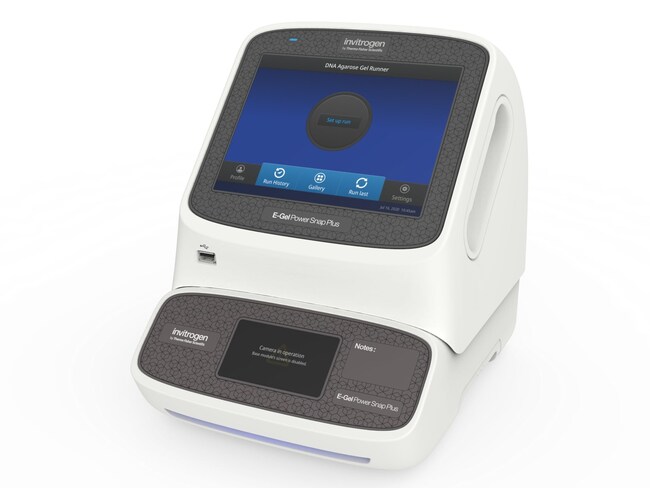

Invitrogen™ E-Gel™ Power Snap Plus Electrophoresis System
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Protein Electrophoresis & Western Blotting | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Molecular Biology | ||
The Invitrogen™ E-Gel™ Power Snap Plus Electrophoresis System is an integrated, all-in-one benchtop solution for high-throughput DNA gel electrophoresis and real-time imaging. Designed for speed, simplicity, and safety, this compact horizontal gel electrophoresis system combines electrophoresis, real-time sample visualization, and image capture into a single streamlined workflow.
Ideal for molecular biology labs conducting PCR analysis, genotyping, cloning, or routine DNA fragment analysis, the Power Snap Plus system delivers rapid, high-quality separation and documentation with minimal user setup.
✅ Key Features & Benefits
🧲 All-in-One System
- Combines electrophoresis power supply, blue-light transilluminator, real-time imaging, and camera in a single unit.
- Requires no separate gel documentation system or power unit.
💡 Blue Light & SYBR Stain Compatibility
- Uses safe blue light illumination to visualize nucleic acids stained with SYBR Safe or SYBR Gold II.
- Compatible with E-Gel precast agarose gels (11- to 96-well formats).
🕒 Fast Sample Separation
- Run DNA samples in as little as 10 minutes.
- Pre-programmed protocols available for various E-Gel agarose gel formats.
📷 Integrated Camera & Real-Time Imaging
- Built-in high-resolution camera allows live monitoring and capture of electrophoresis results.
- Exports images via WiFi, Ethernet, or USB.
- Compatible with Thermo Fisher Connect and local network drives.
☁️ Cloud-Enabled Data Access
- Store gel images locally or in the Thermo Fisher cloud for secure access and sharing.
- Features onboard touchscreen and intuitive software interface.
⚠️ Safer Workflows
- Uses blue light instead of UV for safer nucleic acid visualization.
- Amber filter provides high-contrast visualization while preserving sample integrity.
🧪 Wide Gel Compatibility
-
Compatible with:
- E-Gel 96 and E-Gel 48 gels (SYBR Safe)
- E-Gel EX, CloneWell II, SizeSelect II with adapter
- Ethidium bromide-stained gels (for electrophoresis only; not for camera imaging)
🧬 Recommended Applications
- PCR fragment analysis
- Genotyping
- Cloning workflows
- CRISPR fragment detection
- DNA quality checks
- Real-time monitoring of DNA migration
📦 System Includes
- E-Gel Power Snap Plus Electrophoresis Device
- E-Gel Power Snap Plus Camera
- WiFi dongle
- Adapter for 11–22 well gels
- 1-year standard warranty
Note: Precast E-Gel agarose gels sold separately.
🔧 Specifications
| Feature | Details |
|---|---|
| Catalog Number | G9311 |
| Type | Horizontal Gel Electrophoresis System |
| Detection Method | Fluorescence (Blue Light) |
| Compatible Gel Types | E-Gel agarose gels with SYBR Safe or SYBR Gold II |
| Running Time | 8 to 40 minutes (varies by gel type) |
| Gel Well Formats | 11-, 22-, 48-, and 96-well formats |
| Imaging | Integrated camera, real-time capture |
| Data Export | WiFi, Ethernet, USB |
| Software | Onboard touch interface with pre-loaded protocols |
| Light Source | Blue light transilluminator |
| Filter | Amber filter included |
| Safety Features | UV-free imaging, safe for user and samples |
| Warranty | 1-Year Standard Warranty |
| Unit Size | Each (1 system) |
📊 Why Choose the E-Gel Power Snap Plus System?
✅ Integrated DNA separation and imaging in one unit
✅ Real-time sample monitoring with no need for gel post-staining
✅ Fast turnaround—run, view, and export results in minutes
✅ Cloud and network connectivity for seamless data handling
✅ Ideal for high-throughput labs and routine analysis
✅ Blue light illumination ensures user and sample safety
