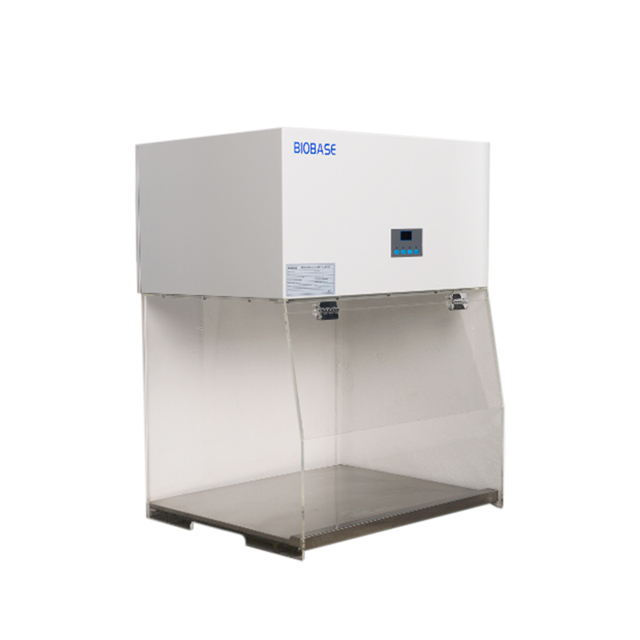

BIOBASE Class I Biological Safety Cabinet, 680 mm wide

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

Sales Description
External Size(WxDxH): 700x550x900mm
Internal Size(WxDxH): 680x550x500mm
HEPA Filter: 99.999% efficiency at 0.3 μm
Airflow Velocity: 0.75~1.0m/s
Illuminating Lamp: 8W LED Lamp
Standard Accessory: LED lamp, UV lampx2

This combination does not exist.

Specifications:

Application	Microbiology, molecular biology	Warranty	1 Year
Material	Stainless steel
Storage Temperature	Room Temperature
Product Type	Biological Cabinets & Clean Benches
Product Brand	BIOBASE
Product Grade	Laboratory grade

Overview
Resource

Compact & Energy-Efficient Biosafety Cabinet for Operator and Environmental Protection

The BIOBASE Class I Biological Safety Cabinet (BYKG-II, 680mm Wide) is a compact, high-efficiency containment unit designed for operator and environmental protection during microbiological work. Equipped with a 99.999% efficiency HEPA filter, UV sterilization system, soft-touch LCD control panel, and low-noise airflow system, this cabinet is an ideal solution for laboratories, pharmaceutical testing, and research applications.

This Class I biosafety cabinet ensures safe handling of biohazardous materials by providing negative airflow containment, making it suitable for pathogen handling, forensic research, and microbiological applications.

Key Features & Benefits

✅ Class I Containment Protection – Safeguards personnel & environment from hazardous aerosols

✅ HEPA Filtration (99.999% Efficiency at 0.3µm) – Removes airborne contaminants & particulates

✅ UV Sterilization System (253.7 nm) – Provides efficient decontamination before & after use

✅ LCD Digital Display & Soft-Touch Control Panel – Allows real-time monitoring of cabinet functions

✅ Energy-Saving, Low-Noise Operation (≤55dB) – Ensures quiet & efficient lab performance

✅ Memory Function for Power Failure Recovery – Restores previous settings after power outage

✅ Durable Stainless Steel Work Surface (304 Grade) – Easy to clean and corrosion-resistant

✅ Stable Airflow System – Maintains uniform air velocity to prevent contamination leaks

✅ Compact 680mm Width Design – Space-saving solution for small laboratories

Technical Specifications

Attribute	Details
Model	BYKG-II
External Dimensions (W × D × H)	700 × 550 × 900 mm
Internal Work Zone (W × D × H)	680 × 540 × 500 mm
HEPA Filter Efficiency	99.999% at 0.3µm
Airflow Velocity	0.75 - 1.0 m/s
Noise Level	≤55dB
Lighting System	8W LED Lamp
UV Lamp (253.7 nm)	20W × 1 (Efficient Sterilization)
Power Consumption	160W
Main Body Construction	Cold-rolled steel with antibacterial powder coating
Work Table Material	304 Stainless Steel
Power Supply	AC 220V ±10%, 50/60Hz; AC 110V ±10%, 60Hz (Optional)
Interlock Features	Prevents simultaneous activation of UV lamp & fan
Caster Wheels	Not included for BYKG-II model

Standard Accessories

✔ 8W LED Lamp (1 pc)

✔ UV Lamp (20W, 1 pc)

✔ Base Stand (Included)

Optional Accessories

✔ Electric Height Adjustable Base Stand

Applications

🔬 Microbiology & Biotech Research – Ensures operator and environmental safety

🦠 Clinical & Diagnostic Laboratories – Designed for safe handling of infectious materials

🧪 Pharmaceutical & Drug Development – Provides controlled workspace for microbiological testing

⚗️ Food & Beverage Microbiology – Supports pathogen detection in food safety testing

🛠 Forensic & Veterinary Labs – Ensures biosafety compliance for research & sample processing

Usage Guidelines

Activate UV sterilization before and after use to ensure optimal decontamination
Monitor LCD display for airflow velocity and HEPA filter status
Adjust working height for ergonomic use (optional electric base stand available)
Regularly clean stainless steel work surface to maintain sterile conditions
Replace HEPA filters as recommended to maintain biosafety compliance
