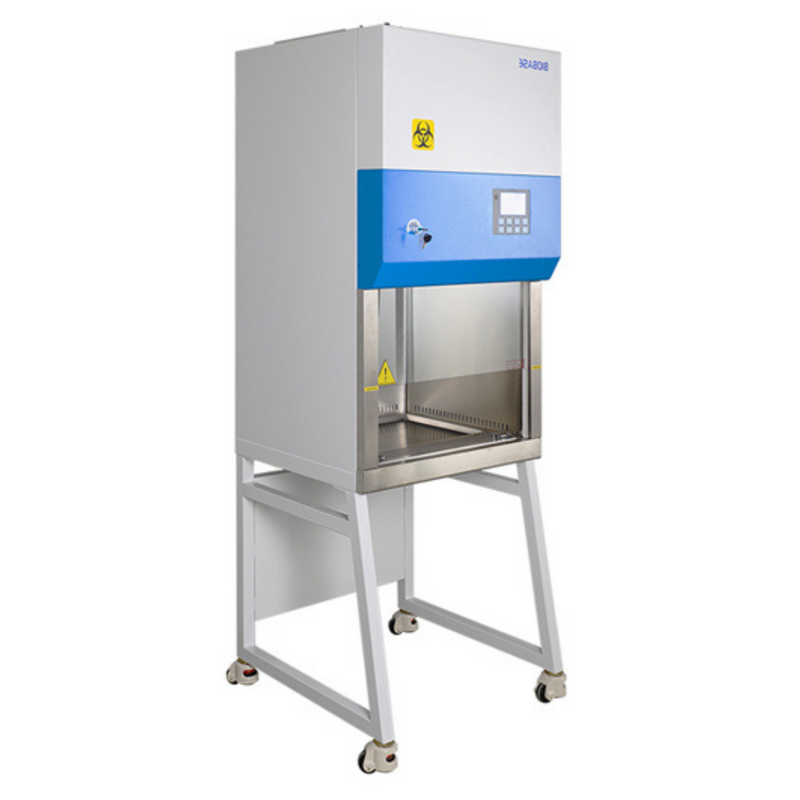

BIOBASE Class II A2 Biological safety Cabinet With Base Stand & Remote Control, 700mm Wide

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

External Size(WxDxH): 700x650x1230 mm
Internal Size(WxDxH): 600x500x540mm

This combination does not exist.

Specifications:

Application	Microbiology, molecular biology	Warranty	1 Year
Material	Stainless steel
Storage Temperature	Room Temperature
Product Type	Biological Cabinets & Clean Benches
Product Brand	BIOBASE
Product Grade	Laboratory grade

Overview
Resource

Advanced Protection for Operators, Samples, and Laboratory Environments

The BIOBASE Class II A2 Biological Safety Cabinet (BSC-700IIA2-Z) is a compact, high-performance containment system designed to provide triple protection for the operator, sample, and laboratory environment. Featuring 70% air recirculation and 30% air exhaust, this cabinet is ideal for microbiological research where volatile or toxic chemicals and radionuclides are not used.

Equipped with an H14 HEPA filter (99.995% efficiency at 0.3μm), motorized front window, real-time monitoring via LCD display, and remote control functionality, this cabinet enhances safety, usability, and operational efficiency.

Key Features & Benefits

✅ Class II A2 Airflow System – 70% air recirculation, 30% air exhaust for enhanced containment

✅ Compact Design – Small 700mm width conserves space without compromising safety

✅ H14 HEPA Filters – 99.995% efficiency at 0.3μm, with filter life indicator

✅ Motorized Front Window – Single-layer 5mm toughened glass with UV resistance

✅ Real-Time LCD Display – Monitors airflow velocity, filter pressure, temperature, and humidity

✅ Visual & Audio Alarms – Alerts for filter replacement, airflow disruption, and window height

✅ Time-Reserve Function – 30-minute activation delay ensures decontamination before operation

✅ Interlock Safety System – Prevents accidental activation of conflicting functions (e.g., UV lamp & blower)

✅ Remote Control Operation – Allows control from up to 6 meters away for enhanced user safety

✅ Memory Function for Power Failures – Automatically resumes settings after power restoration

✅ Quiet & Energy-Efficient Operation – ≤67dB noise level with 700W power consumption

Technical Specifications

Attribute	Details
Model	BSC-700IIA2-Z / 11231 BBC 86
External Dimensions (W×D×H)	700 × 650 × 1230 mm (without base stand)
Internal Work Zone (W×D×H)	600 × 500 × 540 mm
Tested Opening	Safety Height: 200mm (8")
Maximum Opening	370mm (15")
Inflow Velocity	0.53 ± 0.025 m/s
Downflow Velocity	0.33 ± 0.025 m/s
HEPA Filters	Two, 99.995% efficiency at 0.3μm
Front Window	Motorized, single-layer toughened 5mm glass, anti-UV
Noise Level	≤67dB
UV Lamp	15W × 2 (UV timer, UV life indicator, 253.7 nm emission)
LED Lamp	8W × 2 (≥1000 Lux illumination)
Power Consumption	700W
Socket Load Capacity	500W (Two waterproof sockets)
Work Surface Height	750mm with base stand (optional)
Control System	Microprocessor with LCD display
Alarm Systems	Filter replacement, window over-height, abnormal airflow, high filter pressure
Material	Work Zone: 304 Stainless Steel Main Body: Cold-rolled steel with antibacterial coating
Power Supply	AC 220V ±10%, 50/60Hz AC 110V ±10%, 60Hz (Optional)

Airflow System & Protection

70% Recirculated Air, 30% Exhaust Air – Ensures safe containment
H14 HEPA Filters – High-efficiency filtration of airborne particles
Interlocking Safety Features – Prevents accidental activation of incompatible functions
Sterilization & Decontamination – UV lamps (253.7nm emission) for efficient sterilization

Package & Weight Details

Without Base Stand

Packaging Type	Dimensions (W×D×H) mm	Gross Weight
Carton	757 × 820 × 1280 mm	121 kg
Carton (Alternative)	730 × 787 × 1450 mm	120 kg
Wooden Crate	860 × 780 × 1420 mm	140 kg

With Base Stand

Packaging Type	Dimensions (W×D×H) mm	Gross Weight
Carton	860 × 800 × 1450 mm	141 kg
Carton (Alternative)	850 × 787 × 1450 mm	140 kg
Wooden Crate	860 × 970 × 1420 mm	160 kg

Standard & Optional Accessories

Included Accessories

✔ LED Lamps (2 pcs)

✔ UV Lamps (2 pcs)

✔ Remote Control (1 pc)

✔ Waterproof Sockets (2 pcs)

Optional Accessories

✔ Stainless Steel Water Tap

✔ Stainless Steel Gas Tap

✔ Base Stand

Applications

🔬 Microbiological Research – Provides safe handling of biohazardous materials

🦠 Clinical & Diagnostic Labs – Ensures sterile environments for pathogen studies

🧪 Pharmaceutical & Biotechnology Industry – Ideal for drug formulation & R&D

⚗️ Food & Beverage Microbiology – Supports quality control and safety testing

🛠 Forensic & Veterinary Laboratories – Ensures contaminant-free sample processing

Usage Guidelines

Activate UV Sterilization Before Use – Ensures decontamination before experiments
Monitor LCD Display for Filter & Airflow Status – Prevents unsafe conditions
Use Remote Control for Safe Operation – Reduces direct exposure to hazardous materials
Perform Regular Filter Replacements – Ensures consistent airflow and protection
Always Maintain Proper Window Height – Prevents contamination risks
