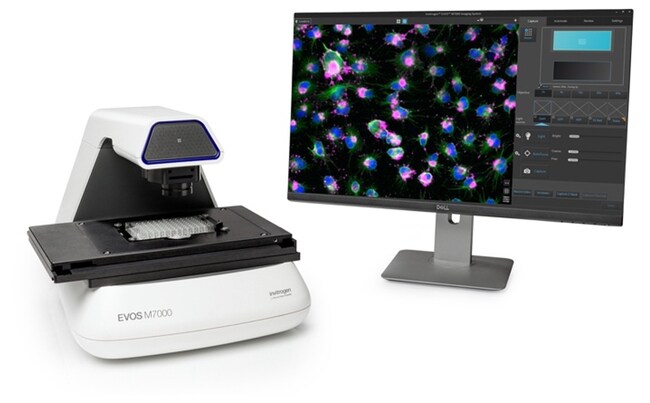

Invitrogen™ EVOS™ M7000 Imaging System, High-Content Analysis Package
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Cell Analysis | Warranty | 2 Years |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™, Invitrogen | ||
| Product Grade | Molecular Biology | ||
The Invitrogen™ EVOS™ M7000 Imaging System is a fully automated, high-performance inverted fluorescence and transmitted light microscope designed for advanced imaging in life sciences research, cell biology, and high-content analysis. Engineered for speed, precision, and ease of use, the EVOS™ M7000 delivers publication-quality images with minimal user intervention.
Featuring multi-channel fluorescence imaging, automated stage movement, advanced autofocus, and high-speed acquisition, this system enables researchers to perform complex imaging workflows such as time-lapse live-cell imaging, Z-stacking, and multi-well plate scanning. Its integrated software and powerful hardware architecture provide a seamless, efficient imaging experience for modern laboratories.
Key Features
- Fully Automated Imaging System – Automated X/Y stage, focus, exposure, and filter switching
- Multi-Channel Fluorescence Imaging – 4 fluorescence channels + transmitted light
- 5-Position Objective Turret – Flexible magnification from 1.25× to 100×
- High-Sensitivity Dual CMOS Cameras – Capture both color and monochrome images
- Advanced Autofocus Algorithms – Ensures sharp, reproducible imaging
- High-Speed Acquisition – Supports high-throughput workflows and large datasets
- Time-Lapse & Live Cell Imaging – Compatible with onstage incubation system
- Z-Stacking & Tile Stitching – Enables 3D imaging and large-area scans
- LED Light Source (>50,000 hours) – Stable, mercury-free illumination
- Intuitive Software Interface – Simplifies acquisition, visualization, and analysis
Applications
- Live Cell Imaging & Time-Lapse Studies
- Immunofluorescence & Immunohistochemistry (IHC)
- Neurobiology & Cancer Research (Immuno-Oncology)
- 3D Cell Imaging & Z-Stack Analysis
- High-Resolution Tile Scanning & Montage Imaging
- Cell Counting, Segmentation, and Quantification
- Multi-Well Plate Screening & High-Throughput Assays
Technical Specifications
| Parameter | Specification |
|---|---|
| Imaging Modes | Fluorescence, Brightfield, Color Brightfield, Phase Contrast |
| Magnification Range | 1.25× – 100× |
| Objective Capacity | 5-position turret |
| Cameras | Dual 3.2 MP CMOS (Color & Monochrome) |
| Pixel Resolution | 2048 × 1536 |
| Stage | Motorized X/Y (120 mm × 80 mm travel) |
| Focus | Automated, sub-micron resolution |
| Illumination | LED light cubes (>50,000 hours) |
| Fluorescence Channels | 4 + Brightfield |
| Display | 27” 4K Monitor (3840 × 2160) |
| Imaging Methods | Multi-color, Z-stack, Time-lapse, Tile Stitching |
| Software | EVOS Analysis (included), Celleste (optional) |
| Computer | Dell XE4, Intel Core i9, 128 GB RAM, 4 TB SSD |
| GPU | NVIDIA Quadro RTX A4000 (8 GB) |
| Operating System | Windows 10 |
| Light Source Lifetime | >50,000 hours |
| Shipping Condition | Room Temperature |
System Components
- EVOS™ M7000 Imaging System
- 27” 4K LCD Monitor
- High-performance workstation (Intel Core i9, 128 GB RAM, 4 TB SSD)
- Dual CMOS cameras (color & monochrome)
- Motorized stage and autofocus system
- EVOS M7000 accessory kit
- Calibration slide and vessel holders (slides & plates)
- Software suite (EVOS Analysis)
- Power supply, cables, and installation accessories
Optional Accessories & Expansion
- EVOS Onstage Incubator – For live-cell imaging with temperature, gas, and humidity control
- Celleste™ Image Analysis Software – Advanced segmentation and quantification
- Wide range of objectives (achromat, fluorite, apochromat)
- LED light cubes for different fluorophores
- Custom vessel holders (plates, flasks, dishes)
Unique Advantages
- True walk-away automation for complex imaging workflows
- High-throughput capability for multi-well plate and large-area scanning
- Exceptional image quality with advanced optics and LED illumination
- Integrated analysis tools for rapid data interpretation
- Reduced operating costs with long-life LED light source
- User-friendly interface suitable for both experts and new users
The Invitrogen™ EVOS™ M7000 Imaging System is a state-of-the-art automated imaging platform designed to meet the demands of modern life science laboratories. With its combination of automation, flexibility, and powerful imaging capabilities, it is an ideal solution for advanced research, high-content screening, and live-cell imaging applications.
