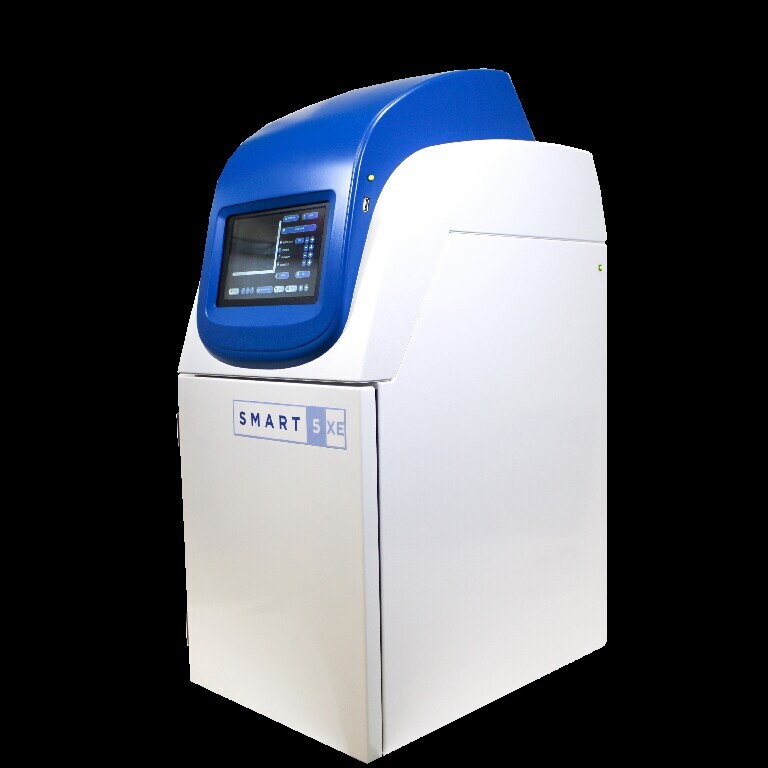

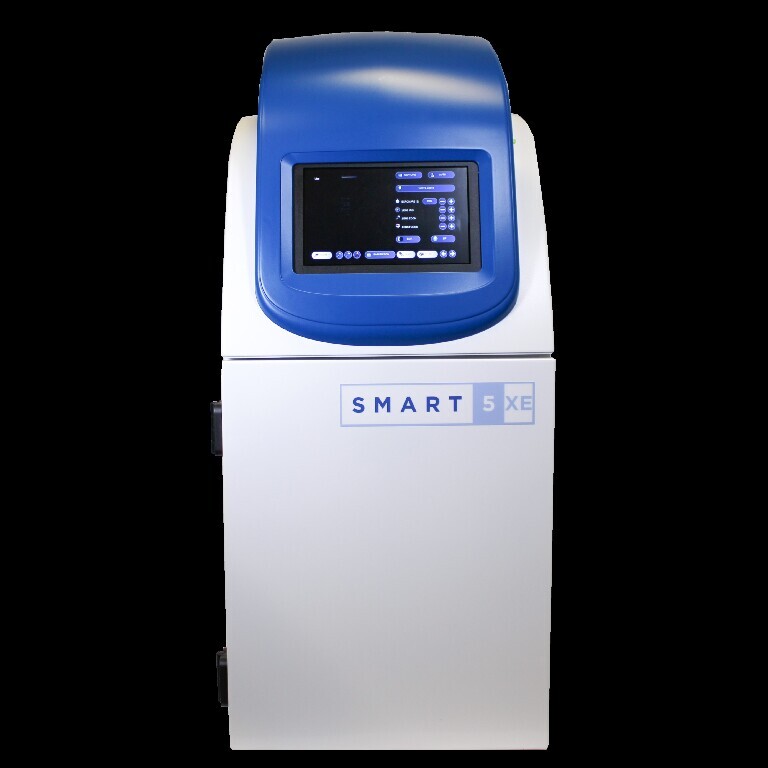

VWR® SMART5 XE Gel Documentation System

The VWR® SMART5 XE is an advanced, compact gel documentation system designed for high-resolution imaging and analysis of DNA and protein gels, blots, and autoradiograms. Built as a stand-alone workstation, it features a 17.8 cm touch screen, integrated processor, and GeneTools software, allowing users to capture, edit, and analyze gel images without the need for an external PC.

Equipped with a 5 MP CCD camera and motorized f/1.2 zoom lens, the SMART5 XE delivers high sensitivity and image quality across a wide dynamic range. The unit supports multiple illumination modes including UV, blue, and white light, making it suitable for a wide range of stains such as Ethidium bromide, SYBR dyes, Coomassie Blue, Silver Stain, and Ponceau Red. Its generous 200 × 240 mm imaging area supports standard and large format gels, making it ideal for high-throughput labs.

Key Features

• 5 MP, 12/16-bit CCD camera for high-resolution, sensitive imaging
• Motor-driven f/1.2 zoom lens (8–48 mm) for precise control and focus
• Large 17.8 cm integrated touchscreen with intuitive interface
• Built-in processor and Windows® 10 Enterprise LTSC OS

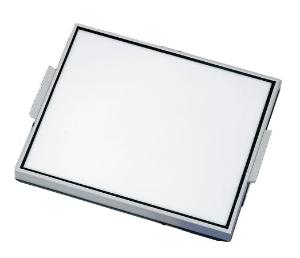

• Lighting options: Epi-white light, UV, and blue light (converter screens sold separately)
• GeneTools software for capture and quantitative gel analysis
• Large imaging area (200 × 240 mm) for wide gel formats
• High dynamic range (3.6/4.8 extended) for optimal contrast and detail
• Full networking capability (LAN, USB 3.0 ×3, USB 2.0 ×2, HDMI output)
• 80 GB internal hard drive with auto-save and USB export options

Applications

• DNA and RNA gel documentation (e.g. Ethidium bromide, SYBR Safe)
• Protein gel analysis (Coomassie, Silver stain, Ponceau Red)
• Blot imaging (e.g. Western blots)
• Teaching and demonstration labs (via HDMI output)
• Research labs requiring quantifiable gel data

Technical Specifications

Delivery Includes

• SMART5 XE gel documentation system
• 5 MP CCD camera with motorized zoom lens
• Epi white light for sample positioning
• UV032 emission filter
• GeneTools software (image capture + analysis)
• Multilingual user instructions
• Calibration documents
• Power cord

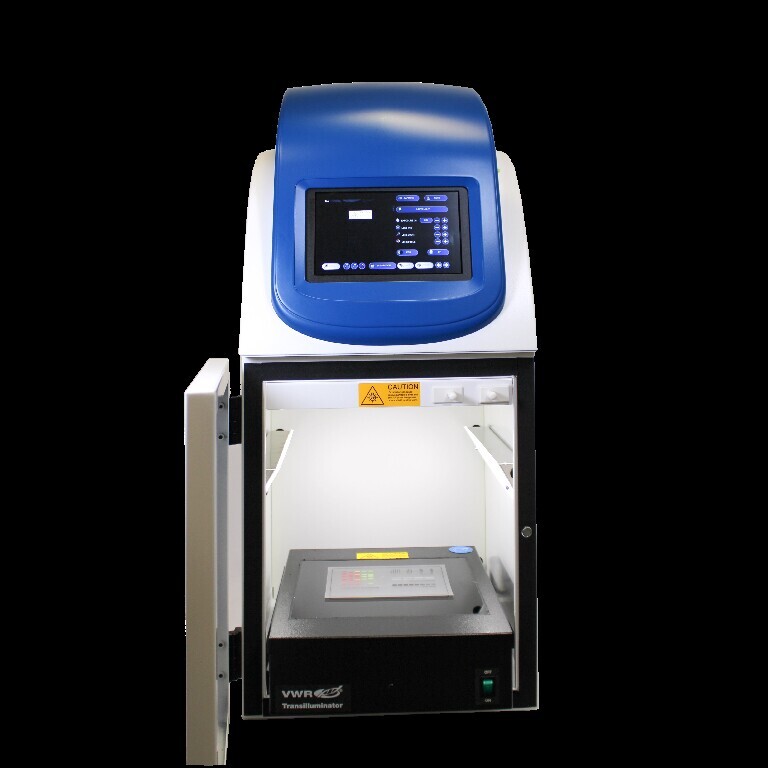

• Note: Transilluminator and converter screens sold separately

The VWR® SMART5 XE is a robust, all-in-one gel documentation system that combines image capture, analysis, and networking capabilities in a compact footprint. With powerful optics, versatile lighting, and intuitive software, it is an excellent solution for molecular biology labs, educational facilities, and core imaging platforms requiring precise and reproducible gel documentation.
