Specifications:
| Application | Cell Analysis | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Microscopes, Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™, Invitrogen | ||
| Product Grade | Cell Culture | ||

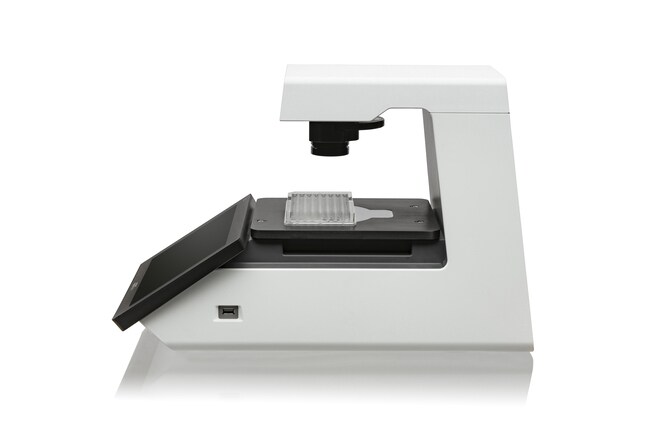

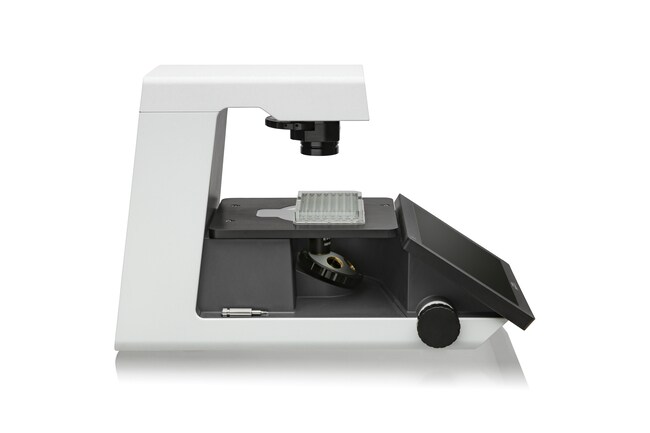

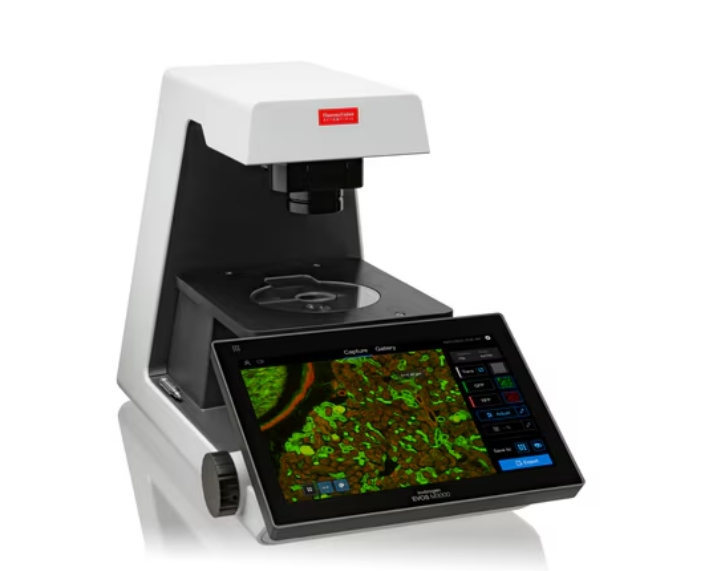

The Invitrogen™ EVOS™ M3000 Imaging System is a fully integrated digital inverted benchtop microscope designed for high-quality two-color fluorescence, transmitted light, phase contrast, and color imaging. Optimized for routine cell and tissue culture imaging, this compact system combines an intuitive user interface with advanced machine learning–based real-time confluency analysis, allowing rapid verification of cell appearance, quality, and growth.
The EVOS M3000 delivers precision imaging with plug-and-play simplicity, requiring no assembly, maintenance, alignment, or calibration. Its space-saving design fits easily on laboratory benches or inside cell culture hoods, while its network capability ensures seamless data transfer.
Key Features & Benefits
- Plug-and-Play Setup – No warm-up, calibration, or alignment required.
- Real-Time Confluency Analysis – Machine learning algorithm provides immediate, accurate confluency values as you move the sample.
- Dual Fluorescence Channels – Supports user-defined two-color fluorescence imaging with EVOS Light Cubes (sold separately).
- Compact Design – 12 x 19 x 13 in. footprint fits easily on a bench or in a biosafety cabinet.
- Network & Storage Options – Save directly to USB, onboard SSD, or transfer wirelessly to OneDrive™/Thermo Fisher Connect.

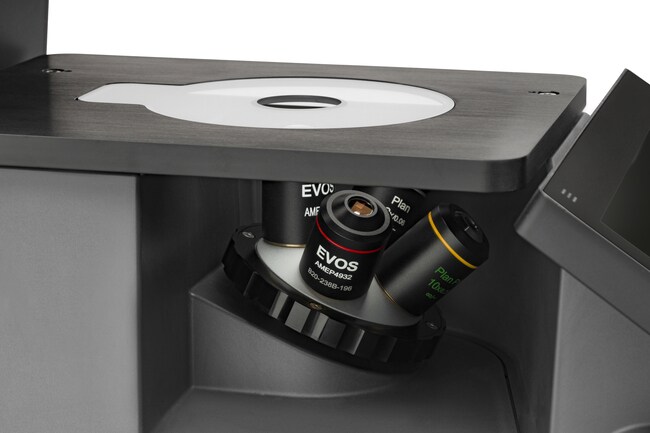

- Versatile Imaging – Four-position turret supports 1.25–60X magnification objectives for transmitted light, phase contrast, fluorescence, and color imaging.

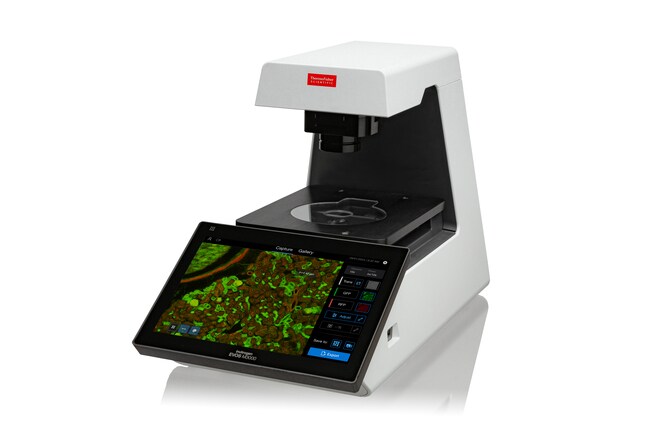

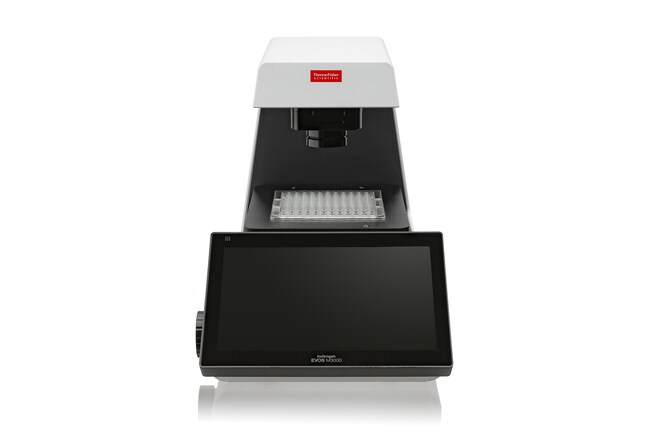

- High-Quality Display & Camera – Integrated 10.1-inch LCD touchscreen and sensitive CMOS camera capture publication-ready images and videos.
- Cleanroom Compatible – Withstands standard disinfection protocols, including UV and hydrogen peroxide treatments.
Technical Highlights
- Imaging Modes: Two-color fluorescence, transmitted light, phase contrast, color imaging
- Magnification: 1.25–60X (objectives sold separately)
- Camera: High-sensitivity color CMOS, 2,064 x 1,536 pixels (3.2 MP)
- Image Formats: TIFF, PNG, JPG (8-bit monochrome or color)
- Video Capture: MP4 format
- Data Transfer: USB, onboard SSD (128 GB), wireless network capability

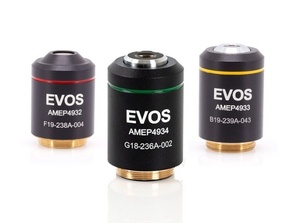

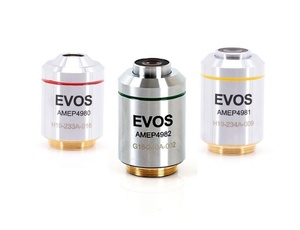

- Objectives: Four-position turret, compatible with achromat, fluorite, or apochromat correction lenses
Specifications
| Parameter | Detail |
|---|---|
| Catalog Number | AMF3000 |
| Model | EVOS M3000 Imaging System |
| Dimensions (W x D x H) | 11.7 x 12.7 x 19.1 in. |
| Display | 10.1 in. LCD touchscreen (1920 x 1080 pixels) |
| Light Source | LED |
| Magnification Range | 1.25–60X |
| Objectives | 4-position turret |
| Stage | Fixed (mechanical optional, Cat. No. AMEP5011) |
| Resolution | 1920 x 1200 pixels |
| Camera | CMOS |
| Weight | 18.4 lb (8.3 kg) |
| Product Line | EVOS |
| Type | Cell Imaging System |
| Unit Size | Each |
| Intended Use | For research use only |
Applications
- Live cell imaging
- Cell culture quality control
- Tissue imaging and documentation
- Quantitative confluency monitoring
- Fluorescence and phase contrast imaging for research
The Invitrogen™ EVOS™ M3000 Imaging System offers unmatched convenience, flexibility, and performance for everyday cell imaging workflows. Its integrated design, AI-assisted confluency analysis, and compatibility with multiple imaging modes make it an ideal choice for research laboratories seeking reliable, high-quality imaging without the complexity of traditional microscope setups.
