VWR Digital incubator, Natural Convection
Catalog No :
CAS Number :
Brand :
In Stock
Temperature range (°C): +5 ~ 70
Temp. fluctuation(°C): ±0.5 at 37 °C
Specifications:
| Application | Microbiology | Warranty | 1 Year |
| Storage Temperature | Room Temperature | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | VWR | ||
| Product Grade | Microbiology grade | ||

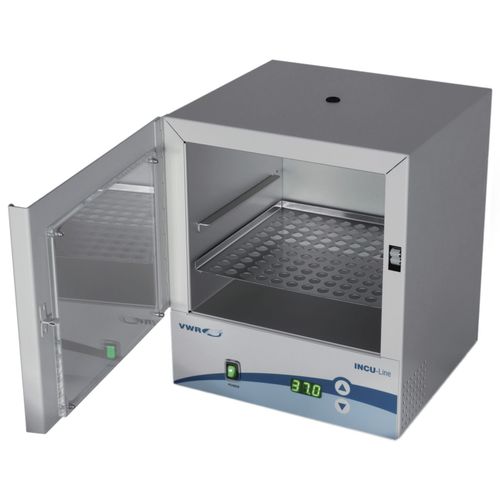

The VWR® INCU-Line® IL Series Digital Incubators (models IL 10, IL 23, IL 56) offer a compact, economical, and highly accurate solution for general incubation needs in microbiology, haematology, and other laboratory applications requiring stable, controlled thermal environments. Designed with natural convection, digital PID control, and uniform heat distribution, these units ensure reliable and reproducible incubation.
Key Features
- 🔹 Digital PID Temperature Control with PT100 sensor for precise thermal regulation
- 🔹 Adjustable Temperature Range: Ambient +5 °C to 70 °C in 0.1 °C increments
- 🔹 Uniform Heat Distribution via integrated heating elements in chamber base and walls
- 🔹 Compact Footprint ideal for space-limited labs
- 🔹 Transparent or Tinted Plexiglas® Window Options (IL 10 only) for visibility or light protection
- 🔹 Durable Construction: Epoxy-coated mild steel housing with Plexiglas® window
- 🔹 Factory Test Certificate Included (measured at 37 °C at chamber center)
- 🔹 Supplied with Stainless Steel Shelves – IL 10 (1 shelf), IL 23 & IL 56 (2 shelves)
Model Comparison Table
| Model | Catalog No. | Window Type | Capacity (L) | Shelves Supplied (Max) | Internal Dimensions (W×D×H, mm) | External Dimensions (W×D×H, mm) | Power (W) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| IL 10 (clear) | 390-0384 | Transparent Plexiglas® | 10 L | 1 (max 2) | 230×220×200 | 285×280×335 | 70 W | 8.3 kg |
| IL 10 (tinted) | 390-0385 | Painted/Tinted Plexiglas® | 10 L | 1 (max 2) | 230×220×200 | 285×280×335 | 70 W | 8.3 kg |
| IL 23 | 390-0482 | Transparent Plexiglas® | 23 L | 2 (max 3) | 290×290×270 | 340×360×400 | 160 W | 12.8 kg |
| IL 56 | 390-0999 | Transparent Plexiglas® | 56 L | 2 (max 5) | 390×360×400 | 453×420×546 | 220 W | 23.6 kg |
Performance Specifications (All Models)
| Temperature Range | Ambient +5 °C to 70 °C |
|---|---|
| Temperature Fluctuation | ±0.5 °C at 37 °C (time-based)* |
| Temperature Variation | ±0.5 to ±1.0 °C at 37 °C (spatial)* |
| Convection Type | Natural convection |
| Max Load per Shelf | IL 10 & IL 23: 3 kg, IL 56: 10 kg |
*Measured with an empty chamber.
Applications
- Microbiology – Cultivation of bacterial and fungal cultures
- Haematology – Incubation of slides, reagents, and media
- Food & Water Testing – Reliable temperature-controlled incubation for QC
- Research & Education – Suitable for laboratories with space and budget limitations
Optional Accessories
- Aluminium Tube Racks for IL 10 – Accommodates up to 24 dip slide tubes (vertical incubation)
- UK Plug– Add RSCOA50505000 (free UK plug) when ordering
- Test Certificates & UK Plug Adapters included as required
The VWR INCU-Line® IL 10, IL 23, and IL 56 digital incubators combine compact design, reliable performance, and operational simplicity. Whether you require a space-saving unit for small-scale applications or a larger chamber for higher-throughput work, the IL series offers dependable solutions tailored to laboratory needs.
- Capacity: INCU-Line® IL 10 with transparent window, 10L with 1 shelf INCU-Line® IL 10 with tinted Plexiglas® window, 10L with 1 shelf INCU-Line® IL 23 with transparent window, 23L with 2 shelves INCU-Line® IL 56 with transparent window, 56L with 2 shelves
