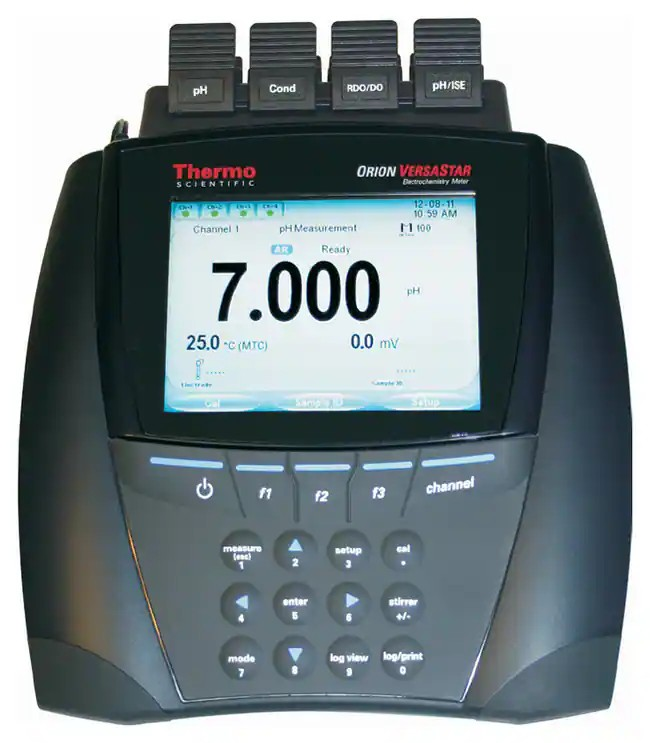

Thermo Scientific™ Orion™ Versa Star Pro™ Conductivity Benchtop Meter with Modules
Catalog No :
CAS Number :
Brand :
In Stock
Conductivity, TDS, Salinity, Resistivity with Temperature
Specifications:
| Application | Electrochemistry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Benchtop meters | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
High-Precision Benchtop Systems for Conductivity, TDS, Salinity, and Resistivity Analysis
The Thermo Scientific™ Orion™ Versa Star Pro™ Conductivity Benchtop Meters deliver unmatched flexibility, accuracy, and functionality for laboratories performing complex electrochemical measurements. Designed to measure conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature, these benchtop systems support advanced calibration, data management, and modular customization to meet evolving lab requirements.
Available in three versions, each system includes the Versa Star Pro meter with conductivity module (VSTAR-CND). The VSTAR22 includes a general-purpose 4-cell conductivity sensor, the VSTAR23 includes a low-conductivity pure water cell with flow cell, while the VSTAR20 is supplied without a sensor for use with custom configurations.
Key Features and Benefits
- Modular System Design: Supports up to four interchangeable measurement modules
- Color Graphic Display: Intuitive interface with adjustable text size and visual feedback
- Advanced Read Modes: Auto-Read, Timed, Continuous, and Single-Shot read options
-
Smart Calibration and Logging:
- 6-point calibration with editing
- Logs up to 2000 data sets with time/date stamps
- Stores 30 calibration logs per parameter
- Extensive Temperature Compensation Options: Linear, non-linear ultra-pure (nLFn/nLFu), and EP modes
- Flexible Output and Data Transfer: USB and RS232 ports for PC/printer connectivity
- Secure Access Control: Set admin rights and user accounts with password protection
- IP54 Housing: Dust- and splash-resistant design for rugged lab environments
- Warranty: 3-year coverage for both meter and module
Kit Comparison Overview
| Model | Description | Includes |
|---|---|---|
| VSTAR20 | Meter with Conductivity Module | Versa Star Pro meter, VSTAR-CND module, stand, power supply, accessories (no probe) |
| VSTAR22 | Standard Kit | Includes 013005MD 4-cell DuraProbe (K=0.475), 1413 µS/cm standard |
| VSTAR23 | Pure Water Kit | Includes 013016MD pure water sensor (K=0.1) with flow cell, 100 µS/cm standard |
Technical Specifications
| Attribute | Specification |
|---|---|
| Measurement Modes | Conductivity, TDS, Salinity, Resistivity with Temperature |
| Conductivity Range | 0.001 µS/cm to 3000 mS/cm |
| Resistivity Range | 2 Ω to 100 MΩ |
| Salinity Range | 0.06 to 80.00 psu, 0.05 to 42.00 ppt |
| TDS Range | 0.001 ppm minimum, up to 1000 ppt or 200 g/L (auto-ranging) |
| Temperature Range | -5°C to +105°C |
| Resolution (Conductivity) | 0.001 µS (auto-ranging up to 4 digits) |
| Accuracy (Conductivity) | ±0.5% of reading ±1 digit (>3 µS); ±0.5% ±0.01 µS (≤3 µS) |
| Temperature Compensation | Linear, non-linear pure water (nLFn, nLFu), EP, or off |
| Calibration Points | Up to 6 with calibration editing |
| Memory | 2000 data points + 30 calibration records |
| Outputs | USB (2), RS232 |
| Inputs | MiniDIN (sensor), 2 × stirrer probes |
| Display | Color graphic LCD with user-customizable layout |
| Power Supply | 100–240 V AC adapter (included), 9V DC input |
| IP Rating | IP54 (dust/splash-resistant) |
| Dimensions | 28 × 24 × 10 cm (modules add ≤2 cm) |
| Weight | 1.2 kg (modules add 0.2 kg each) |
| Warranty | 3 years (meter and module) |
Applications
-
Water Quality & Environmental Labs
- Monitoring conductivity, TDS, and salinity in drinking water, surface water, and wastewater
-
Pharmaceutical and Industrial QC
- Conductivity validation in process water and manufacturing pipelines
-
Food & Beverage Testing
- Salinity and TDS control in product and ingredient analysis
-
Power & Energy Sector
- Pure water resistivity measurement in boilers and steam condensate lines
-
Academic and Research Laboratories
- Multi-parameter electrochemical studies with flexible module integration
Ordering Information
| Catalog Number | Product Description | Included Probe | Conductivity Standard |
|---|---|---|---|
| VSTAR20 | Meter with Conductivity Module Only | None | None |
| VSTAR22 | Standard Kit (DuraProbe 4-cell, K = 0.475) | 013005MD | 011007 (1413 µS/cm) |
| VSTAR23 | Pure Water Kit (Flow cell, K = 0.1) | 013016MD | 011008 (100 µS/cm) |
The Thermo Scientific™ Orion™ Versa Star Pro™ Conductivity Benchtop Meters offer premium accuracy, scalability, and ease-of-use for laboratories measuring conductivity, TDS, salinity, and resistivity. With customizable configurations, real-time data logging, and smart calibration options, Versa Star Pro meters are built to support high-precision electrochemical workflows in regulated, research, and industrial environments.

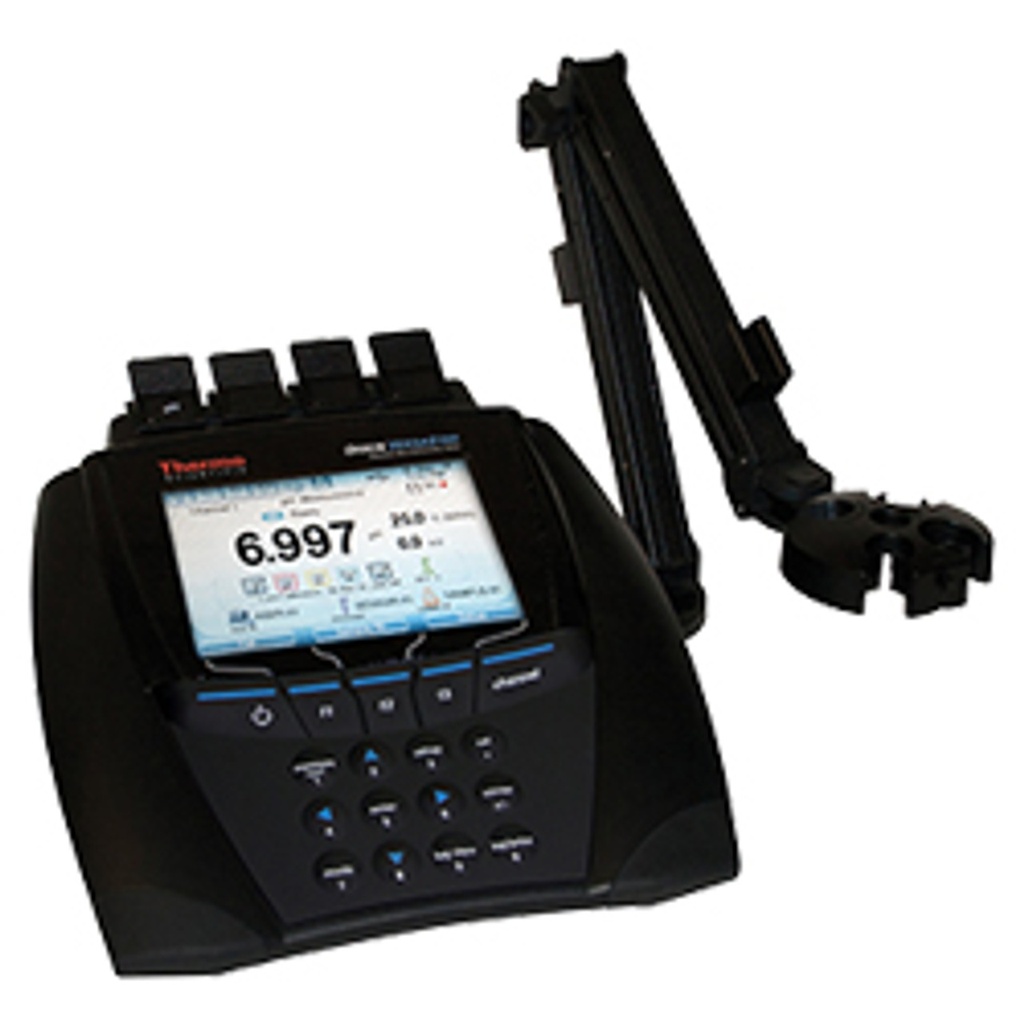

- Module: Meter with conductivity module, electrode stand & Accessories Meter with Pure Water Kit (electrodes & Standards) Meter with Standard Kit (electrodes & Standards)
