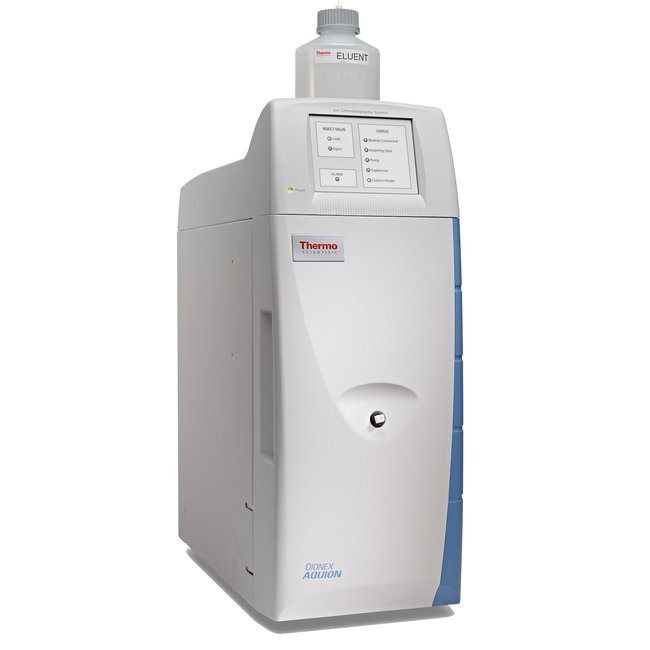

Thermo Scientific™ Dionex™ Aquion™ Ion Chromatography (IC) System
Catalog No :
CAS Number :
Brand :
In Stock
Max. Pressure: 35 MPa (5000 psi)
Type: IC System without Degas
Detector Type: Microprocessor-Controlled Digital Signal Processor Conductivity Detector
Flow Rate: 0.00 to 5.00 mL/min
Pressure Range: 0 to 35 MPa (0 to 5000 psi)
Specifications:
| Application | Ion Exchange Chromatography | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
The Thermo Scientific™ Dionex™ Aquion™ Ion Chromatography (IC) System is a robust, compact platform designed for routine anion and cation analysis in laboratories with budget-conscious needs. Ideal for environmental, food safety, and academic laboratories, the Aquion IC system provides dependable results with simplified operation and easy maintenance.
Offering PEEK flow paths, electrolytic suppression support, and a dual-piston pump for high pressure applications, the Dionex Aquion system is engineered to deliver high-quality analytical performance at an accessible entry point. System bundles are available with and without inline degassing and include hardware, software, columns, suppressors, and standards for rapid deployment.
Key Features
- PEEK flow path—chemically inert and metal-free for enhanced analyte compatibility
- Serial dual-piston pump—flow rates from 0.01 to 5.0 mL/min with up to 5000 psi max pressure
- Electrically actuated 6-port Rheodyne injection valve for precise and reproducible sample injection
- Support for both electrolytic and chemical suppressors for flexibility in eluent compatibility
- High-sensitivity conductivity detector with digital signal processing (0–15,000 µS)
- Temperature-controlled conductivity cell ensures stability and repeatability
- Optional inline vacuum degas module for eluent degassing
- Optional column heater for temperature-sensitive applications
- Controlled via Thermo Scientific™ Chromeleon™ Chromatography Data System (CDS) software
System Options
| Catalog # | Description | Degasser | System Type |
|---|---|---|---|
| 22176-60002 | System without Degas | Not included | IC System without Degas |
| 22176-60004 | System with Degas | Included | IC System with Degas |
Bundled System Inclusions
- Dionex™ Aquion™ IC system
- Power cable
- Chromeleon™ SE software license
- Dionex™ Aquion Analysis Kit (Anion or Cation specific)
- 3-year limited warranty (1 year full coverage; parts-only coverage in years 2–3)
- Optional extended warranty includes labor and travel coverage in years 2–3
Analysis Kit Contents
Anion Analysis Kit (for AS22 chemistry):
- Dionex™ IonPac™ AG22 (4 × 50 mm) guard column
- Dionex™ IonPac™ AS22 (4 × 250 mm) analytical column
- Dionex™ AERS™ 500 Carbonate suppressor (4 mm)
- Dionex™ Seven Anion Standard II (concentrate)
Note: Eluent concentrate (e.g., AS22 carbonate/bicarbonate) sold separately
Cation Analysis Kit (for CS12A chemistry):
- Dionex™ IonPac™ CG12A (4 × 50 mm) guard column
- Dionex™ IonPac™ CS12A (4 × 250 mm) analytical column
- Dionex™ CDRS™ 600 suppressor (4 mm)
Note: Cation eluent concentrate and standards sold separately
Technical Specifications
| Parameter | Specification |
|---|---|
| Flow Rate Range | 0.00 to 5.00 mL/min |
| Max Operating Pressure | 35 MPa (5000 psi) |
| Injection Valve | Electrically actuated 6-port Rheodyne valve (PEEK) |
| Suppressor Support | Electrolytic and chemical suppressors |
| Detector Type | Digital conductivity detector with DSP |
| Conductivity Range | 0–15,000 µS |
| Control Software | Thermo Scientific Chromeleon™ CDS |
| Degasser Option | Available (Model 22176-60004) |
| System Dimensions | Compact benchtop footprint |
| Unit Size | Each |
Applications
- Drinking and wastewater anion/cation analysis (EPA 300.0, 300.1 compliant)
- Food and beverage anion monitoring (e.g., chloride, nitrate, sulfate)
- Environmental monitoring of ionic contaminants
- Academic laboratory training in chromatography methods
- Basic QC workflows in chemical manufacturing
The Dionex™ Aquion™ IC System delivers dependable ion chromatography with the flexibility, accuracy, and ease-of-use expected from Thermo Scientific™. Whether used for routine ion analysis, regulatory testing, or educational instruction, this compact platform provides essential performance features in a fully bundled, scalable solution.
- Model: System without Degas System with Degas
