BIO-RIDGE TD5 Tabletop Low-Speed Centrifuge, 5000 RPM, Without Rotor
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Sample Processing | Warranty | 1 Year |
| Max Speed | 5000 RPM | ||
| Storage Temperature | Ambient | Max RCF | 4390 × g |
| Product Type | Centrifuge | ||
| Product Grade | Laboratory grade | ||
The TD5 Tabletop Low-Speed Centrifuge is a compact, programmable benchtop centrifuge designed for reliable and efficient sample separation in clinical medicine, biochemistry, genetic engineering, and immunology. It is ideal for hospitals, research institutes, and universities, providing precise control, quiet operation, and consistent performance for routine laboratory centrifugation tasks.
The TD5 replaces the older TD25-WS model, incorporating enhanced safety features, digital programmability, and improved mechanical stability.
Technical Performance
- Microcomputer control with a DC brushless motor ensures stable rotation, high accuracy, and long service life.
- Touch panel and programmable operation: Time, speed, and RCF can be preset and automatically stored according to specific experimental demands.
- User interface: Equipped with a LED or LCD digital display for easy operation and real-time monitoring of speed, RCF, and run time.
-
Safety features:
- Self-locking lid with automatic safety interlock.
- Imbalance detection and automatic shutdown system.
- Overspeed and overtemperature protection alarms.
- Silastic sealing ring ensures gas-tight operation and compliance with GMP and FDA safety standards.
- Noise optimized design (≤58 dB) provides a quieter laboratory environment.
Specifications
| Parameter | Specification |
|---|---|
| Model | TD5 |
| Maximum Speed | 5000 rpm |
| Maximum RCF | 4390 × g |
| Maximum Capacity | 15 mL × 32 (or equivalent rotors/adapters) |
| Speed Accuracy | ±30 rpm |
| Timer Range | 1 min – 99 min |
| Noise Level | ≤58 dB(A) |
| Power Supply | 220 V / 50 Hz |
| Dimensions (W × D × H) | 475 × 405 × 340 mm |
| Packing Size (L × W × H) | 550 × 530 × 430 mm |
| Net Weight | 28 kg |

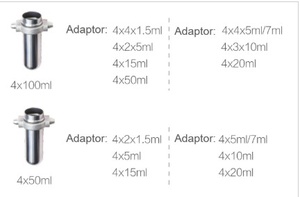

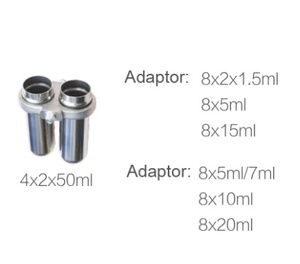

Rotor Options and Compatibility
The TD5 supports multiple swing-out rotors and fixed-angle adapters for various laboratory applications.
| Rotor No. | Rotor Type | Capacity | Max Speed (rpm) | Max RCF (× g) | Adapters Available |
|---|---|---|---|---|---|
| No.1 | Swing rotor | 50 mL × 4 | 5000 | 4390 | 10 mL × 4, 15 mL × 4, 20 mL × 4 |

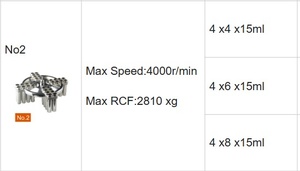

| No.2 | Swing rotor | 50 mL × 8 | 4000 | 2810 | 1.5 mL × 8, 5 mL × 8, 10 mL × 8, 15 mL × 8, 20 mL × 8 |
| No.3 | Swing rotor | 15 mL × 48 | 4000 | 2810 | 1.5 mL, 5 mL, 7 mL adapters |
| No.4 | Swing rotor | 7 mL × 48 | 4000 | 2810 | 7 mL × 12 buckets |
| No.5 | Swing rotor | 8 × 96-well plates | 4000 | 2200 | 8 × 96-well microplate adapters |
Each rotor and adapter set is precision-balanced for smooth rotation and interchangeable use across multiple sample formats (tubes, vials, or plates).
Applications
The TD5 centrifuge is widely applicable for:
- Clinical diagnostics: Serum, plasma, and cell separation.
- Biochemical and genetic research: Nucleic acid, protein, and enzyme assays.
- Immunology and pathology: Preparation of antigen-antibody complexes.
- Industrial and academic labs: Routine sedimentation and microplate centrifugation.
Advantages
- Compact design with high-speed stability.
- Programmable digital control with real-time RCF and RPM readout.
- Versatile rotor system for tubes, bottles, and microplates.
- Enhanced safety with automatic imbalance detection and lid-lock system.
- Low-noise and maintenance-free DC brushless motor.
- FDA- and GMP-compliant construction for laboratory-grade reliability.
The BIO-RIDGE TD5 Tabletop Low-Speed Centrifuge delivers reliable, programmable centrifugation with multiple rotor configurations for clinical, academic, and industrial laboratories.
Its 5000 rpm maximum speed, high RCF of 4390 × g, and broad rotor compatibility make it an excellent choice for laboratories handling routine sample processing, microplate centrifugation, and blood sample separation.
This centrifuge offers quiet operation, intelligent control, and maximum safety, providing dependable performance across a wide range of biological and chemical research applications.
