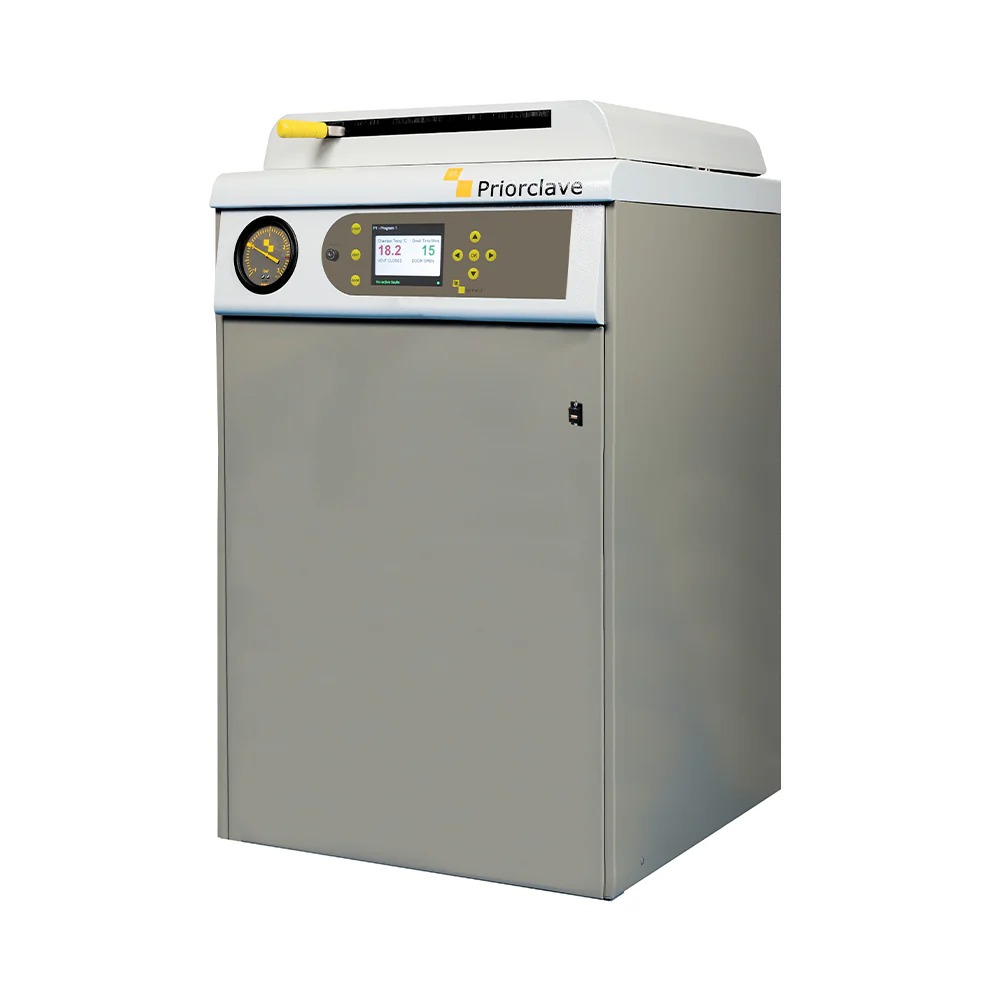

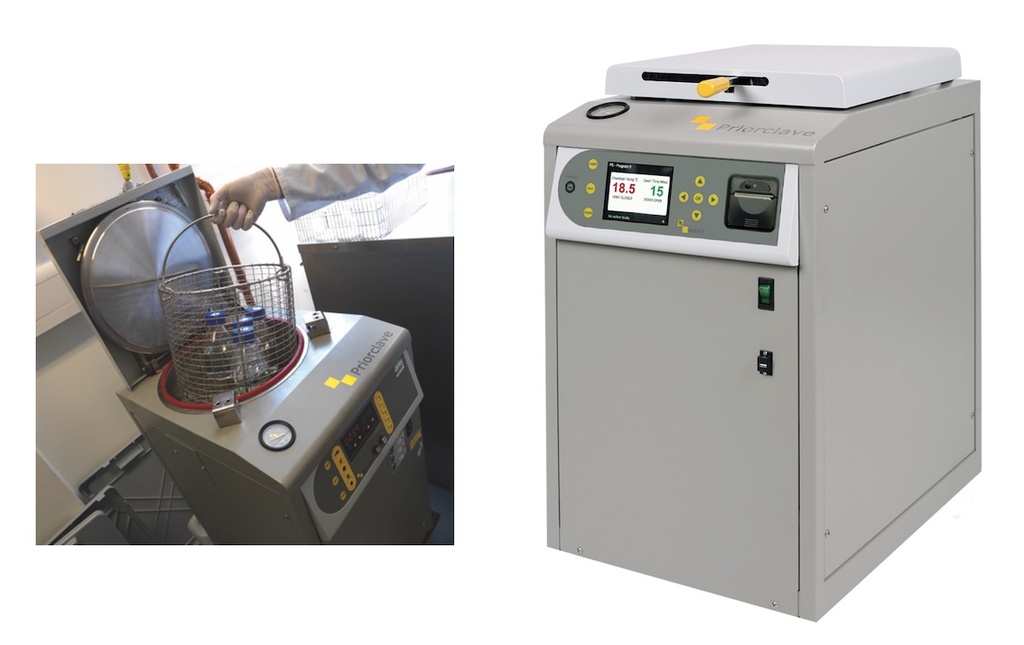

Priorclave™ EV150-BASE Top Loading Research Grade Laboratory Autoclave, Electrically Heated, 400V, 150L
Catalog No :
CAS Number :
Brand :
In Stock
This Unit will be supplied with;
Cooling Free-steam
Pulsed Free-Steam
5 Program Memory
USB Port
Auto-Waterfill
Drain Protection (Condenser)
Manual Drain with external valve
3 Baskets
Specifications:
| Application | sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Autoclave | ||
| Product Brand | Priorclave™ | ||
| Product Grade | Analytical grade | ||
The Priorclave™ EV150-BASE Top Loading Laboratory Autoclave is a high-capacity, research-grade steam sterilization system designed for demanding laboratory environments. With a 150-liter chamber capacity, this electrically heated autoclave provides reliable sterilization of laboratory media, glassware, instruments, biological waste, and large vessels such as fermentors and bioreactors.
Manufactured in Britain using robust engineering standards, the EV150-BASE features a durable cylindrical pressure vessel, advanced programmable controls, and energy-efficient operation. Its vertical loading configuration allows efficient sterilization of tall and bulky loads while maintaining a compact footprint and reducing operating costs compared to front-loading sterilizers.
Key Features
- Large 150-liter working capacity for high-volume sterilization
- Electrically heated system with 400V power supply
- Fully programmable Tactrol® 2 microprocessor control system
- Vertical top-loading design ideal for tall laboratory vessels
- Durable 316L stainless steel sterilization chamber
- Quickseal™ interlocking safety lid for safe operation
- Biomaster™ antimicrobial surface protection
- Stainless steel load support plate and loading baskets included
- Energy-efficient and water-efficient sterilization performance
Principle of Operation
The autoclave sterilizes laboratory materials using saturated steam under pressure, reaching temperatures up to 138°C and pressures up to 2.4 bar. Steam penetrates materials and destroys microorganisms, including bacteria, viruses, fungi, and spores.
The integrated Tactrol® 2 control system provides precise control over sterilization temperature, pressure, and cycle duration, ensuring reliable and reproducible sterilization results.
Applications
The Priorclave™ EV150-BASE is ideal for:
- Microbiology and research laboratories
- Biotechnology and pharmaceutical laboratories
- Cell culture and molecular biology laboratories
- Academic and university laboratories
- Environmental and food microbiology laboratories
- Clinical and diagnostic laboratories
Typical sterilization applications include:
- Culture media sterilization
- Glassware sterilization
- Biological waste decontamination
- Fermentor and bioreactor sterilization
- Sterilization of laboratory instruments and equipment
Standard Features
- Programmable Tactrol® 2 control system with one-touch operation
- Freesteaming, load cooling, media warming, and delayed start functions
- ASME-certified 316L stainless steel chamber and lid
- Quickseal™ interlocking safety lid
- Biomaster™ antimicrobial surface protection
- Stainless steel load support plate and mesh baskets
- Compact vertical design with large sterilization capacity
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EV150-BASE |
| Product Code | PS-VSEE-150-400 |
| Type | Top Loading Laboratory Autoclave |
| Working Volume | 150 Liters |
| Heating Type | Electrically Heated |
| Power Supply | 400V |
| Heater Power | 7 kW (single phase) / 10.5 kW (three phase) |
| Maximum Temperature | 138°C |
| Maximum Pressure | 2.4 Bar |
| Chamber Material | 316L Stainless Steel |
| Chamber Dimensions | 500 mm diameter × 720 mm depth |
| External Dimensions | 660 × 840 × 1020 mm (W × D × H) |
| Loading Height | 935 mm |
| Weight | 165 kg |
| Control System | Programmable Tactrol® 2 |
| Country of Manufacture | United Kingdom |
Available Options
Optional accessories and features include:
- Internal steam generator
- Load sensed process timing
- Thermal printer and data logger
- Vacuum drying system
- Automatic water filling system
- Air filtration and exhaust systems
- Installation and validation documentation (IQ/OQ)
Advantages
- High capacity sterilization for demanding laboratory workflows
- Ideal for large and tall laboratory vessels
- Durable stainless steel construction for long service life
- Fully programmable sterilization cycles
- Energy-efficient operation with reduced operating costs
- Reliable and safe sterilization performance
- Compact footprint relative to chamber capacity
The Priorclave™ EV150-BASE Top Loading Laboratory Autoclave is a robust, high-capacity sterilization solution designed for research, biotechnology, and industrial laboratories. Its programmable control system, durable construction, and efficient vertical loading design ensure reliable sterilization performance, making it an ideal choice for laboratories requiring dependable, high-volume sterilization capability.
