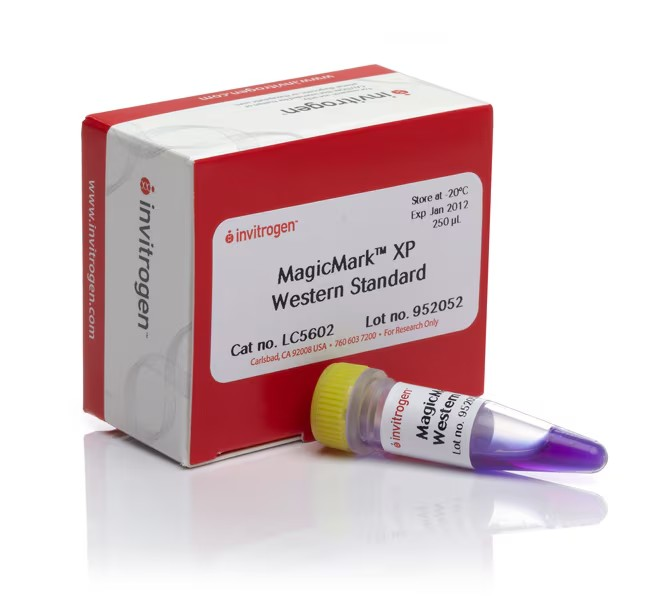

Invitrogen™ MagicMark™ XP Western Protein Standard
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Protein Electrophoresis & Western Blotting | ||
| Storage Temperature | -15°C to -25°C | ||
| Product Type | Protein Standards | Forms | Liquid |
| Product Brand | Thermo Fisher Scientific™, Invitrogen | ||
| Product Grade | Molecular Biology | ||
IgG-binding, unstained protein standard for western blot detection and protein sizing
The Invitrogen™ MagicMark™ XP Western Protein Standard contains nine recombinant proteins ranging from 20 to 220 kDa, each engineered with an IgG binding site. These binding sites allow the proteins to be detected directly on a western blot using the same primary or secondary antibodies as the target protein.
This direct visualization capability eliminates the need for separate stain visualization and ensures accurate protein size estimation within western blot workflows. The standard is supplied in a ready-to-use format, requiring no heating, reducing, or buffer addition before loading.
MagicMark™ XP is compatible with a wide range of western blot detection methods—including chemiluminescent, chromogenic, and fluorescent substrates—making it versatile for different imaging platforms (note: not recommended for fluors in the 500–550 nm channel).
Key Features & Benefits
- IgG-Binding Proteins – Directly detected by the same antibodies used for the target protein.
- Unstained Protein Standard – Ideal for use in western blot detection workflows.
- Broad Molecular Weight Range – Nine markers spanning 20–220 kDa.
- Versatile Detection – Compatible with chemiluminescent, chromogenic, and most fluorescent methods.
- Ready-to-Use – No additional preparation required before loading.
- Multi-Gel Compatibility – Works with multiple gel systems, including Bolt™, Novex™, NuPAGE™, and SDS-PAGE formats.
Applications
- Western blot detection of IgG-binding protein standards
- Protein size estimation on SDS-PAGE and western blots
- Quality control for protein transfer efficiency in blotting workflows
- Comparative molecular weight analysis alongside experimental samples
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Protein Standard |
| Product Line | MagicMark™ |
| Number of Markers | 9 |
| Size Range | 20–220 kDa |
| Molecular Weights | 20, 30, 40, 50, 60, 80, 100, 120, 220 kDa |
| Stain Type | Unstained |
| Detection Methods | User-defined system (compatible with chemiluminescent, chromogenic, and fluorescent secondary antibodies except 500–550 nm channel) |
| Gel Compatibility | Bolt™ Bis-Tris Plus, Novex™ Tricine, Novex™ Tris-Glycine, NuPAGE™ Bis-Tris, NuPAGE™ Tris-Acetate, SDS-PAGE |
| Ready to Load | Yes |
| Unit Sizes | LC5602 – 250 μL, LC5602X4 – 4 × 250 μL, LC5603 – 50 μL |
| Shipping Condition | Dry ice |
| Storage Conditions | −20°C |
| Loading Buffer | 125 mM Tris-HCl (pH 6.8), 10 mM DTT, 17.4% glycerol, 3% SDS, 0.025% bromophenol blue |
The Invitrogen™ MagicMark™ XP Western Protein Standard is a high-performance molecular weight marker designed for direct antibody-based detection in western blot workflows. With its IgG-binding protein markers, broad size range, and compatibility with multiple detection chemistries, it ensures precise size estimation and seamless integration into any western blotting workflow.
- Pack Size: 250 μL 50 μL 4 x 250 μL
