HANNA Free and Total Chlorine Portable Photometer
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Water Quality Analysis | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Photometer | ||
| Product Brand | HANNA Instruments | ||
| Product Grade | Analytical grade | ||

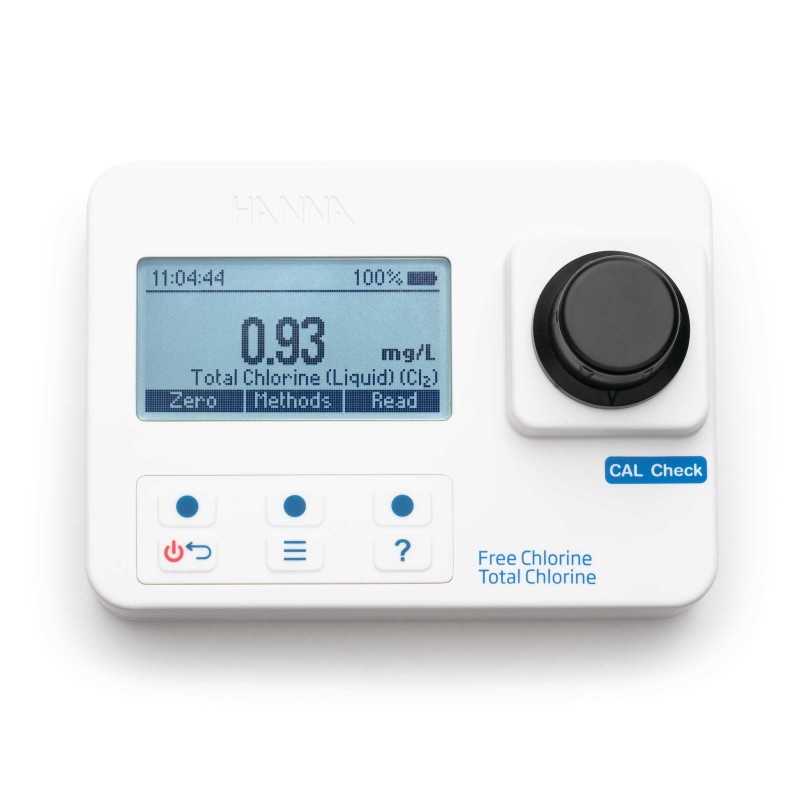

The HANNA HI-97711 Free and Total Chlorine Portable Photometer is a high-precision handheld colorimeter designed for fast, accurate measurement of chlorine concentrations in water. Built with an advanced optical system featuring a reference detector and narrow band interference filters, this instrument delivers exceptional accuracy, repeatability, and reliability for both field and laboratory applications. It is ideal for monitoring chlorine levels in drinking water, swimming pools, wastewater, food processing, and industrial water treatment systems.
This rugged, waterproof photometer measures free and total chlorine from 0.00 to 5.00 mg/L (ppm) using the internationally recognized DPD colorimetric method (EPA 330.5). The built-in reference detector ensures consistent light output by compensating for temperature fluctuations and power variations, resulting in stable and reproducible measurements. Its LED light source provides superior efficiency, low heat generation, and extended instrument life.
The HI-97711 features an intuitive backlit graphical LCD with virtual keys and tutorial mode, guiding users step-by-step through calibration and measurement procedures. The integrated reaction timer ensures proper reaction time, improving measurement consistency across different users and environments. The meter supports both powder and liquid reagents, offering flexibility and cost efficiency for routine chlorine testing workflows.
Designed for durability and portability, the HI-97711 is fully waterproof (IP67 rated) and suitable for field use. Its ergonomic design fits comfortably in the hand, while the sealed optical chamber protects against contamination and damage. Automatic data logging stores up to 50 measurements, and the GLP (Good Laboratory Practice) feature records calibration data for traceability and quality assurance.
Key Features and Benefits
- Measures free and total chlorine from 0.00 to 5.00 mg/L
- Uses EPA-approved DPD colorimetric method
- Advanced optical system with reference detector for superior accuracy
- High-efficiency LED light source with narrow band interference filter
- CAL Check™ functionality for instrument verification and calibration
- Waterproof (IP67 rated) for field and laboratory use
- Built-in tutorial mode for easy operation
- Automatic reaction timer ensures consistent results
- Backlit graphical LCD display with intuitive interface
- Automatic data logging with storage for 50 measurements
- Compatible with both powder and liquid chlorine reagents
Applications
- Drinking water quality monitoring
- Swimming pool and recreational water testing
- Municipal and industrial water treatment
- Wastewater treatment plant monitoring
- Food and beverage processing sanitation control
- Environmental water analysis
- Field water testing and compliance monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Parameters | Free Chlorine, Total Chlorine |
| Measurement Range | 0.00 to 5.00 mg/L (ppm) |
| Resolution | 0.01 mg/L |
| Accuracy | ±0.03 mg/L ±3% of reading |
| Measurement Method | DPD colorimetric method (EPA 330.5) |
| Light Source | LED |
| Light Detector | Silicon photocell with interference filter |
| Filter Bandwidth | 8 nm |
| Wavelength Accuracy | ±1 nm |
| Cuvette Type | Round, 24.6 mm diameter |
| Display | 128 × 64 pixel backlit LCD |
| Logging Capacity | 50 measurements |
| Calibration | CAL Check™ with NIST traceable standards |
| Power Supply | 3 × 1.5V AA batteries |
| Battery Life | >800 measurements |
| Auto Shut-Off | After 15 minutes of inactivity |
| Waterproof Rating | IP67 |
| Operating Temperature | 0 to 50°C |
| Dimensions | 142.5 × 102.5 × 50.5 mm |
| Weight | 380 g |
Ordering Information
| Product | Description | Included Accessories |
|---|---|---|
| HI-97711 | Free and Total Chlorine Portable Photometer | Meter, cuvettes (2), caps (2), plastic inserts (2), AA batteries (3), instruction manual, instrument quality certificate |
| HI-97711C | Free and Total Chlorine Photometer Kit | Meter, CAL Check standards, cuvettes, cleaning cloth, reagents, accessories |
The HANNA HI-97711 Free and Total Chlorine Portable Photometer provides laboratory-grade accuracy in a rugged handheld format, making it an essential tool for water quality professionals. With advanced optics, reliable calibration verification, and user-friendly operation, it ensures precise chlorine measurement for regulatory compliance, process control, and environmental monitoring.
- Model: Meter with accessories Meter Kit with CAL Check standards, cuvettes, cleaning cloth, reagents, accessories
