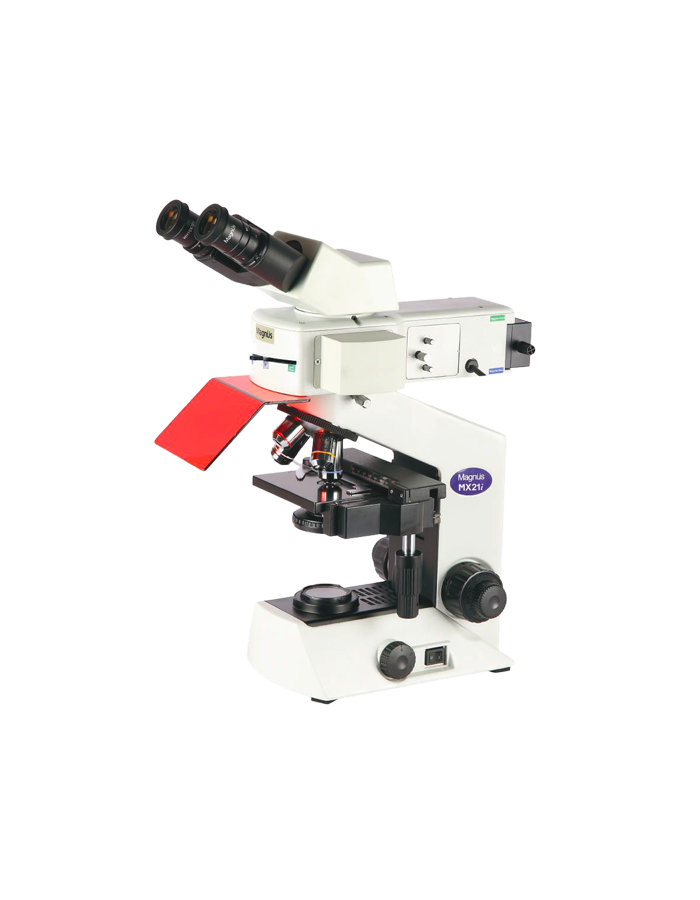

Magnus EpiLed Reflected LED Fluorescence attachment (Without Microscope)
Catalog No :
CAS Number :
Brand :
In Stock
Emission Filters: 2-position front sliding filter carrier, with iris diaphragm for high contrast and sharpness.
Blue: 480nm
Green: 535 nm
Application:
Detection of MALARIA after staining with acridine orange
Alexa 488, FITC ( Blue Excitation), Rhodamine, TRITC ( Green Excitation)
Autoimmune Diseases.
Specifications:
| Application | microscopy | Warranty | 1 Year |
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Molecular Biology | ||
Reflected LED Fluoroscence Microscope
LED Source
Microscope with built-in LED fluorescence source with low power consumption of 3W
No lamp replacement required (lamp life > 20000hrs) with choice of three filters: Blue, Royal Blue, Green
Minimal Photo bleaching
Minimal photo bleaching due to variable light control which allows adjustment of illumination intensity
Two Applications in One
Users can easily switch between brighfield and Fluoroscence applications without removing fluoscence module
- SPECIFICATIONS
LifeTime
30,000 hrs
LED power
3W
Royal Blue : 450 nm
Blue : 480nm
Green : 535 nm
Emission Filters
1 or 2 position front sliding filter carrier depending on the excitation spectra, with iris diaphragm for high contrast and sharpness.
Electrical Parameters
AC Adaptor input : 100~240V AC , Output Voltage : 9V, 2A DC
Application:
Detection of mycobacterium tuberculosis TB ( Royal Blue)
Detection of MALARIA after staining with acridine orange
Alexa 488, FITC ( Blue Excitation), Rhodamine, TRITC ( Green Excitation)
Autoimmune Diseases.
Compatible Microscopes:
Magnus Theia-i/MLXi - Plus
Magnus MX21i
Olympus CX23, CX33
