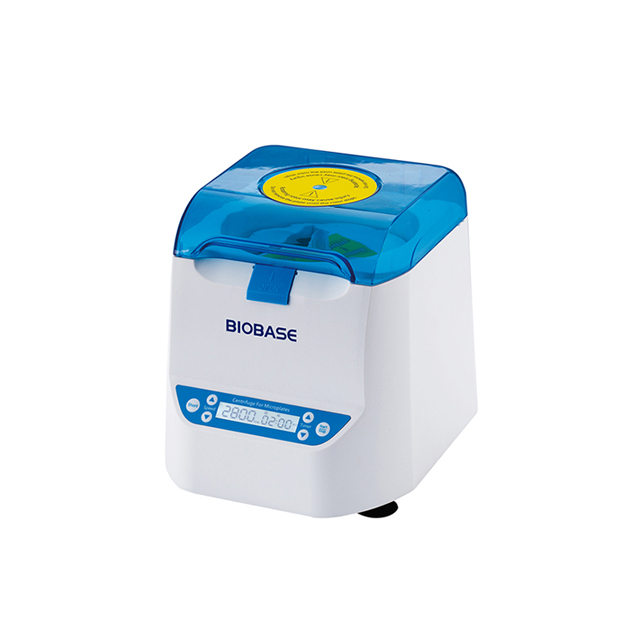

BIOBASE Microplate Spinner, Centrifuge, Digital
Catalog No :
CAS Number :
Brand :
In Stock
Rotating speed: 2200~2800rpm
Timing range: 15sec ~1min59sec
Max(RCF): 550g
Acceleration time: ≤10sec(from 0 to 2800rpm)
Brake time: ≤4sec(from 2800rpm to 0)
Capacity: 2 PCR plates (96-Well/384-wells)
Voltage: AC100~240V/50-60Hz
Specifications:
| Application | Mixer | Warranty | 1 Year |
| Product Type | Laboratory Equipment | ||
| Product Brand | BIOBASE | ||
| Product Grade | Analytical grade | ||
The BKC-MPC2800 Centrifuge for Microplates is designed to provide quick spins for PCR plates, offering a reliable and efficient solution for laboratories handling small volumes in 96-well or 384-well microplates. This compact centrifuge accommodates skirted, non-skirted, and semi-skirted styles, making it versatile and perfect for PCR or other nucleic acid preparation applications.
Key Features and Benefits
-
User-Friendly Interface:
The BKC-MPC2800 features an easy-to-use interface with a real-time display showing all operating information, including the current speed, time remaining, and status of the centrifuge. The intuitive controls make it suitable for both experienced users and new operators. -
Countdown Mode Support:
The centrifuge supports countdown mode, making it easy to track and manage sample processing time, ensuring accurate sample handling and repeatability for time-sensitive applications. -
DC Brushless Motor:
Equipped with a DC brushless motor, the BKC-MPC2800 offers low noise, minimal interference, and maintenance-free operation, ensuring reliable performance for a wide range of applications while maintaining a quiet working environment. -
Automatic Stop on Lid Open:
The centrifuge is equipped with a safety feature that automatically stops the rotor when the lid is opened, ensuring user safety and preventing spills or sample contamination during operation. -
Fast Acceleration and Braking:
- Acceleration Time: From standstill to maximum speed (up to 2800 rpm) in just 10 seconds, reducing waiting time and improving workflow efficiency.
- Braking Time: From the highest speed to a complete standstill in just 4 seconds, ensuring quick recovery between runs and increasing overall throughput.
-
Compact Design:
The BKC-MPC2800 is designed to fit in smaller spaces, making it ideal for laboratories with limited bench space. Despite its compact size, it accommodates 2 PCR plates, offering excellent capacity for typical PCR processing volumes.

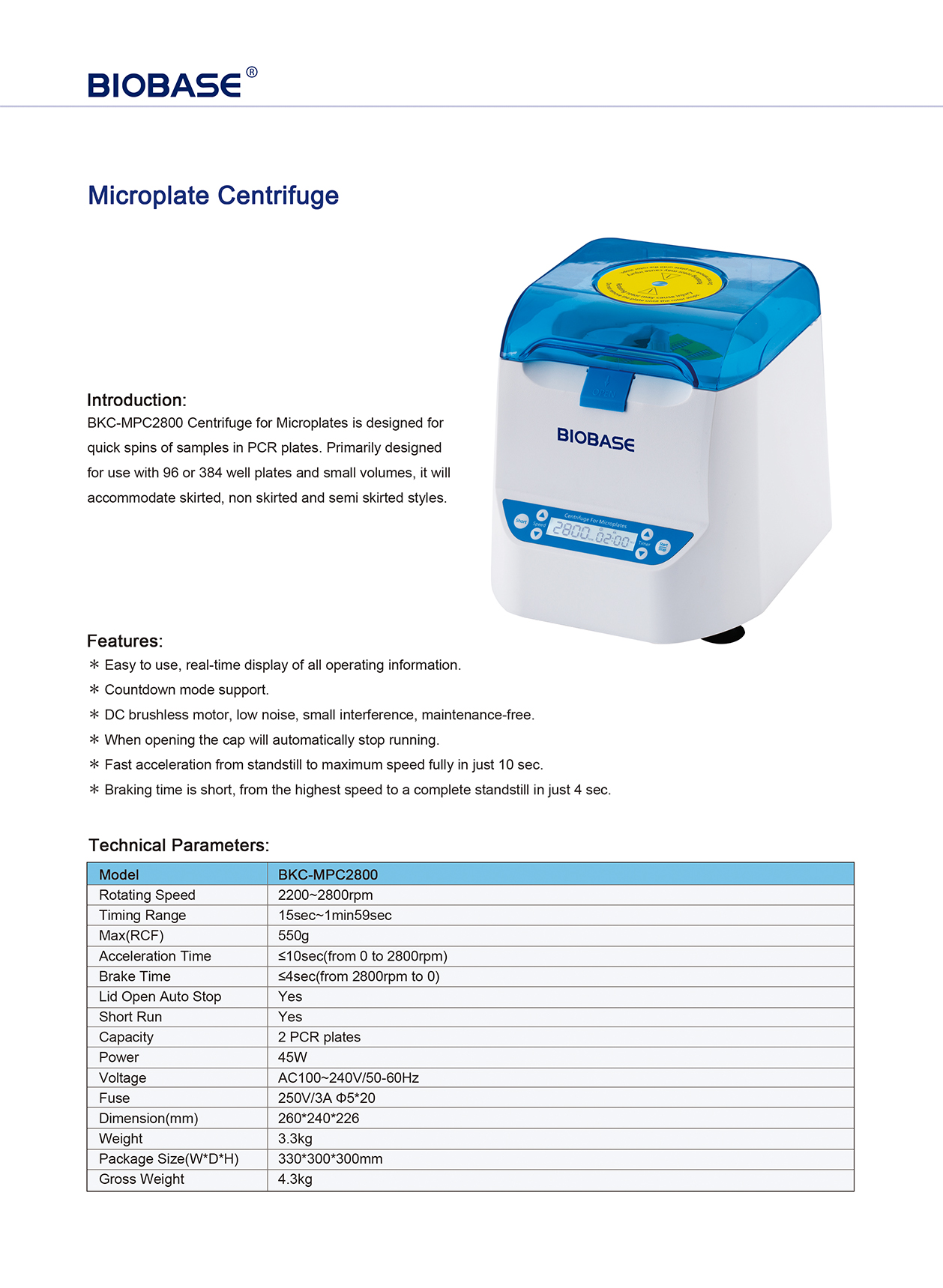

Technical Parameters
| Feature | Details |
|---|---|
| Model | BKC-MPC2800 |
| Rotating Speed | 2200 ~ 2800 rpm |
| Timing Range | 15 sec – 1 min 59 sec |
| Max Relative Centrifugal Force (RCF) | 550 g |
| Acceleration Time | ≤10 sec (from 0 to 2800 rpm) |
| Brake Time | ≤4 sec (from 2800 rpm to 0) |
| Lid Open Auto Stop | Yes |
| Short Run | Yes |
| Capacity | 2 PCR plates |
| Power | 45W |
| Voltage | AC100~240V/50-60Hz |
| Fuse | 250V/3A, Φ5×20 |
| Dimension (mm) | 260 x 240 x 226 mm |
| Weight | 3.3 kg |
| Package Size (W x D x H) | 330 x 300 x 300 mm |
| Gross Weight | 4.3 kg |
Applications
The BKC-MPC2800 Centrifuge for Microplates is ideal for a variety of laboratory applications, including:
-
PCR Plate Spin-down:
Efficiently spin down samples in 96-well and 384-well PCR plates, ensuring that liquid samples are properly settled at the bottom of the wells before PCR amplification or other processes. -
DNA/RNA Sample Preparation:
Used for preparing DNA/RNA samples for further processing, ensuring that samples are ready for use in downstream applications such as genetic analysis, amplification, and sequencing. -
High-Throughput Screening:
Ideal for high-throughput experiments, particularly those requiring quick and efficient processing of multiple microplate samples. -
Sample Concentration:
Can be used for concentrating samples in microplates, assisting with elution or sample prep before further analysis.
Safety and Storage
-
Safety Features:
The automatic stop function when opening the lid ensures operator safety and prevents sample contamination during operation. -
Storage:
The BKC-MPC2800 Centrifuge should be stored in a dry, cool place. Ensure the centrifuge is properly maintained and cleaned regularly to ensure consistent and long-lasting performance.
The BKC-MPC2800 Centrifuge for Microplates is a reliable and efficient solution for high-throughput liquid handling in PCR plates. With its ergonomic design, quick acceleration and braking, and user-friendly interface, it offers precise and reproducible results, making it an indispensable tool for labs working with small volumes in high-throughput settings. Whether you're preparing samples for PCR, DNA/RNA extraction, or sample concentration, this centrifuge offers a fast, safe, and effective solution for your laboratory's needs.
