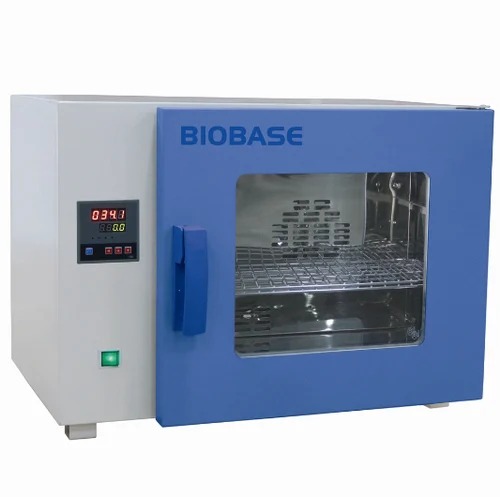

BIOBASE Forced Air Drying Oven, 50℃~200℃

BIOBASE Forced Air Drying Oven, 50℃~200℃

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

Temp. Range: 50~200℃
Temp. Precision: 0.1℃
Temp. Fluctuation: ±1℃
Timing Range: 1~9999min
Shelves No.: 2 pcs

Capacity

This combination does not exist.

Specifications:

Application	Microbiology	Warranty	1 Year
Storage Temperature	Room Temperature
Product Type	Laboratory Equipment
Product Brand	BIOBASE
Product Grade	Analytical grade

Overview
Resource

High-Performance Laboratory Oven for Precise Drying & Sterilization

The BIOBASE Forced Air Drying Oven is designed for precise heating, drying, and sterilization in scientific, industrial, and medical laboratories. With a temperature range of 50°C to 200°C, this PID-controlled oven ensures uniform temperature distribution using a forced air circulation system.

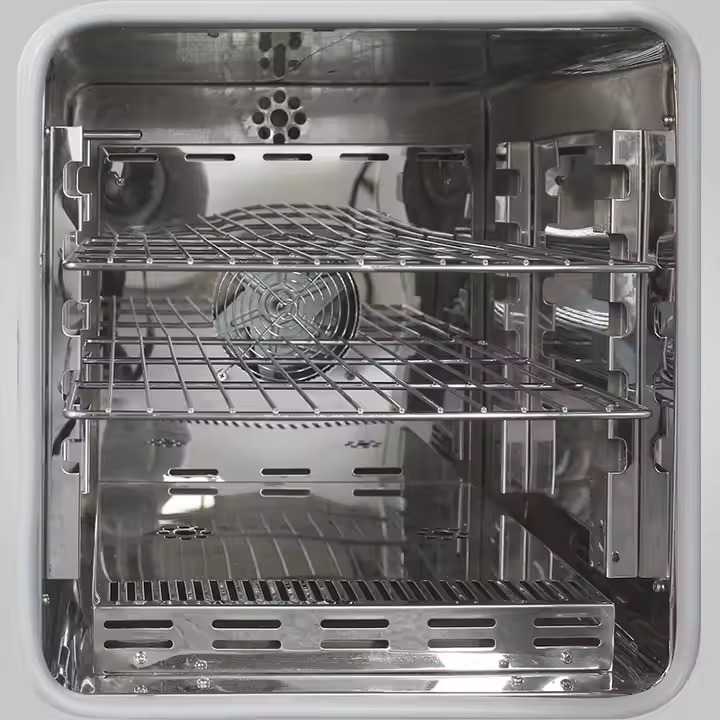

The oven is built with a stainless steel inner chamber with a rounded corner design for easy cleaning and adjustable shelves for flexibility in sample placement. The double-layer glass observation window allows for safe monitoring, while the over-temperature protection system ensures operational safety.

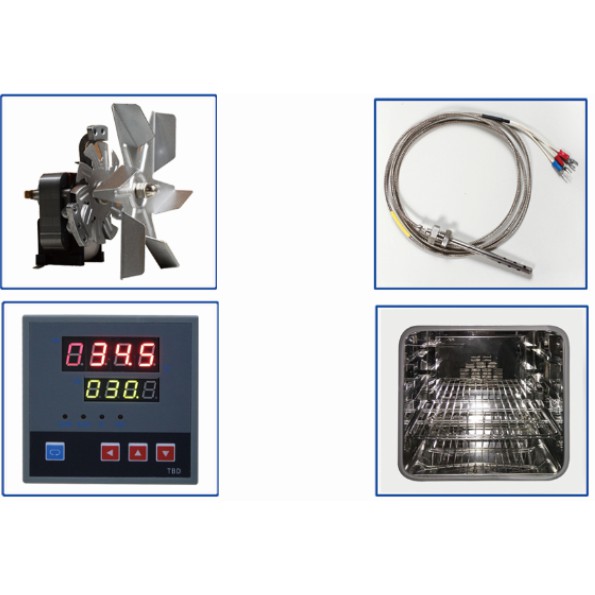

Key Features & Benefits

✅ Wide Temperature Range (50°C–200°C) – Suitable for diverse laboratory applications

✅ PID Temperature Control with LED Display – Ensures precision and stability

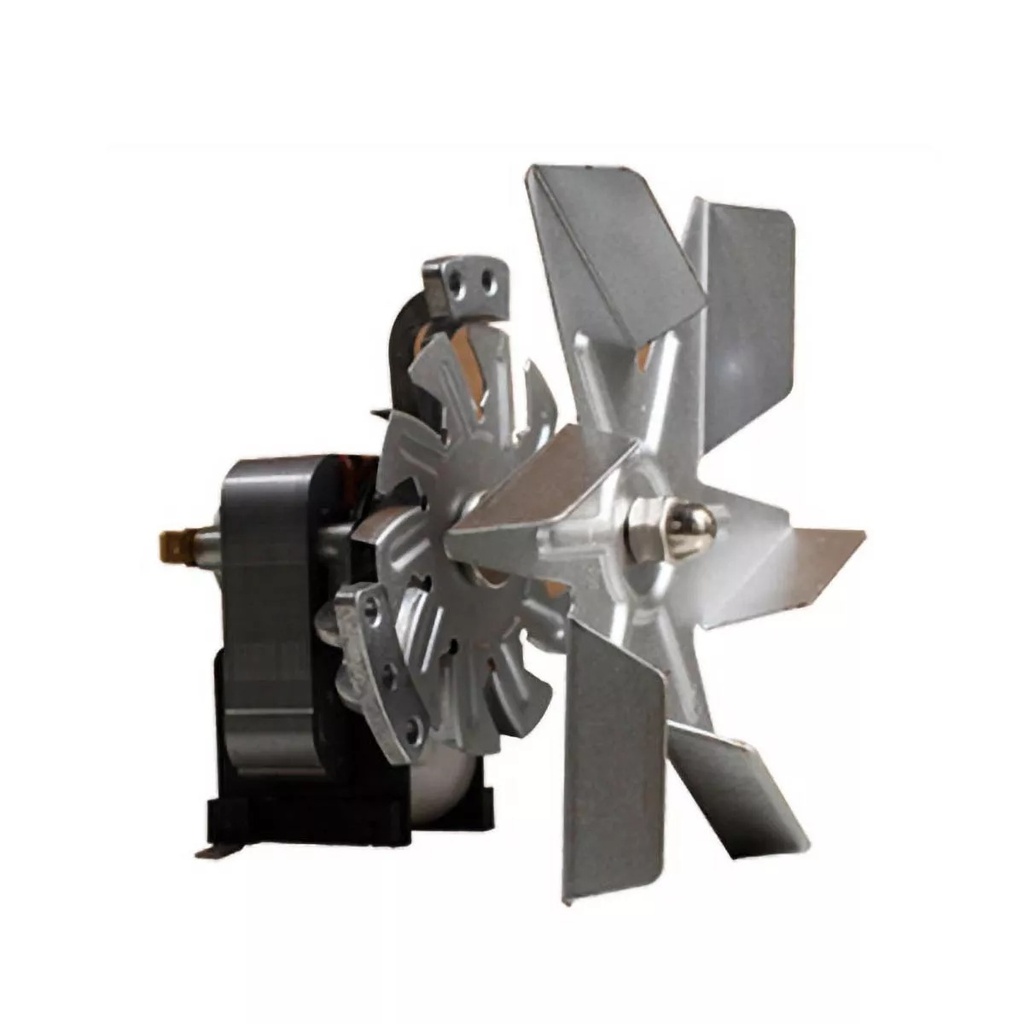

✅ Forced Air Circulation System – Provides uniform heat distribution

✅ Double-Layer Glass Observation Window – Enables clear sample monitoring

✅ Over-Temperature Protection – Prevents sample damage and ensures safety

✅ Stainless Steel Inner Chamber – Corrosion-resistant, easy to clean

✅ Cold-Rolled Steel External Body with Anti-Bacterial Coating – Ensures durability & hygiene

✅ Adjustable Airtight Buckle Lock – Maintains secure sealing for consistent performance

Available Models & Specifications

Model	BOV-T25F	BOV-T50F	BOV-T105F	BOV-T200F
Capacity	25L	54L	108L	212L
Temperature Range	50~200°C	50~200°C	50~200°C	50~200°C
Temperature Precision	0.1°C	0.1°C	0.1°C	0.1°C
Temperature Fluctuation	±1°C	±1°C	±1°C	±1°C
Ambient Temperature	5~40°C	5~40°C	5~40°C	5~40°C
Timing Range	1–9999 min	1–9999 min	1–9999 min	1–9999 min
Shelves (Adjustable)	2 pcs	2 pcs	2 pcs	2 pcs
Power Consumption	650W	1000W	1600W	2500W
Power Supply	220V±10%, 50/60Hz (Standard); 110V, 60Hz (Optional)	220V±10%, 50/60Hz (Standard); 110V, 60Hz (Optional)	220V±10%, 50/60Hz (Standard); 110V, 60Hz (Optional)	220V±10%, 50/60Hz (Standard); 110V, 60Hz (Optional)

Dimensions & Weight

Model	Internal Size (W×D×H) mm	External Size (W×D×H) mm	Package Size (W×D×H) mm	Gross Weight (kg)
BOV-T25F	298×290×274	580×554×455	710×660×620	51
BOV-T50F	419×332×348	708×595×532	840×690×700	66
BOV-T105F	550×348×550	830×620×735	960×720×900	115
BOV-T200F	602×498×602	880×775×785	1010×880×940	145

Applications

🔬 Microbiological & Clinical Laboratory Drying – Sterilization & moisture removal from lab equipment

🦠 Industrial Material Testing – Drying of industrial samples, components & powders

🧬 Biochemical & Pharmaceutical Research – Sample preparation & heat treatment

⚗️ Food & Beverage Testing – Ensures drying of raw materials for microbiological analysis

🛠 Quality Control & Manufacturing – Used in plastic, textile, and material research

Usage Guidelines

Ensure proper ventilation and place the oven on a stable surface.
Adjust shelves for optimal sample placement and airflow.
Use PID controls to set and monitor the required temperature.
Avoid overloading to maintain uniform air circulation.
Regularly clean the inner chamber to prevent contamination.

Regulatory & Safety Information

⚠️ For Research & Industrial Use Only. Not intended for clinical or diagnostic applications.

Handle with appropriate safety precautions when operating at high temperatures.
Keep away from flammable materials and ensure adequate ventilation.
