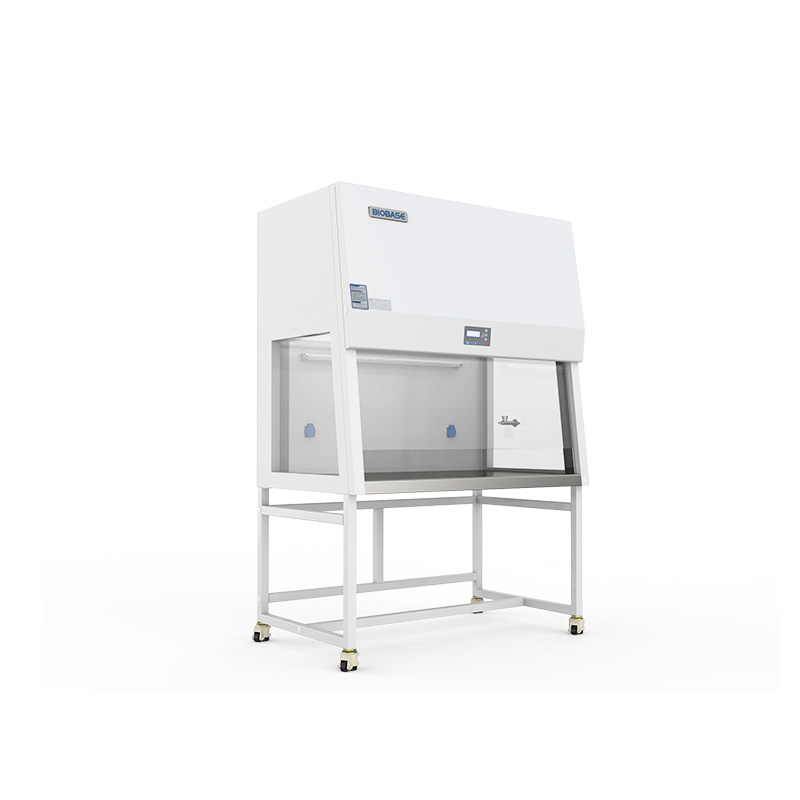

BIOBASE Vertical Laminar Flow Cabinet, 1.7M Wide

Advanced Sterile Airflow Workstation for Laboratory Applications

The BIOBASE Vertical Laminar Flow Cabinet (BBS-V1800-I, 1.7M Wide) is a high-performance clean air workstation designed for biological, pharmaceutical, and industrial laboratories that require particle-free, sterile conditions. This ISO Class 5 (Class 100) laminar flow cabinet provides single-sided vertical airflow, ensuring maximum protection for sensitive samples.

Equipped with HEPA filtration (99.995% efficiency at 0.3μm), UV sterilization, an LCD display, and a robust airflow control system, this cabinet ensures operator safety, ease of use, and contamination-free sample handling.

Key Features & Benefits

✅ Vertical Laminar Airflow System – Maintains a clean, particle-free environment for sensitive applications

✅ High-Efficiency HEPA Filtration (99.995% at 0.3μm) – Removes airborne contaminants for optimal protection

✅ Pre-Filter System (Polyester Fiber) – Captures large particles, extending HEPA filter lifespan

✅ 304 Stainless Steel Work Surface – Ensures easy cleaning and corrosion resistance

✅ 5mm Toughened Glass Windows (Anti-UV) – Enhances operator protection and visibility

✅ Motorized Front Window – Allows precise control of airflow and operator accessibility

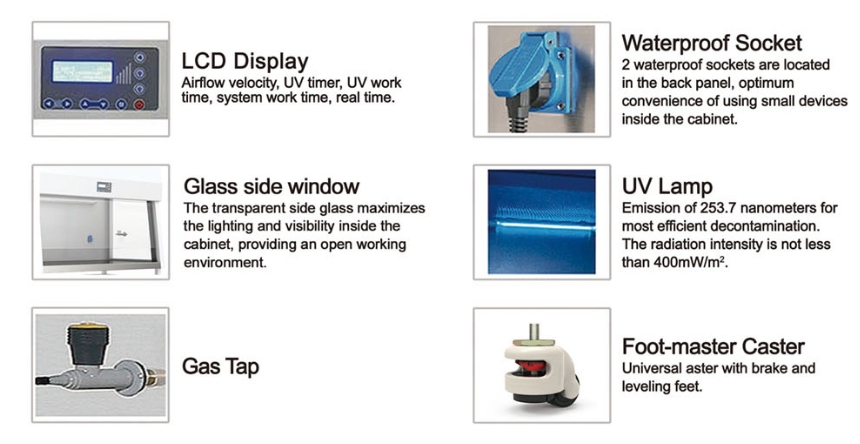

✅ Real-Time LCD Display – Displays air velocity, timer, UV lamp usage, and HEPA filter lifespan

✅ Programmable UV Sterilization & Fan Timer – Enables automated sterilization cycles for contamination control

✅ Safety Alarm System – Alerts for high filter pressure, filter failure, and low airflow velocity

✅ Interlocking Safety System – Prevents simultaneous activation of UV lamp, fluorescent lamp, and fan

✅ Integrated Waterproof Sockets (2) – Supports 1000W power capacity for additional equipment

✅ Footmaster Casters for Mobility & Stability – Ensures easy movement and secure positioning

Technical Specifications

Safety & Filtration Features

• HEPA Filtration (99.995% Efficiency at 0.3μm) – Removes airborne contaminants
• Pre-Filter System – Captures larger particulates to extend HEPA filter life
• Real-Time Monitoring System – Displays air velocity, timer, filter lifespan, and system performance
• Programmable UV Sterilization (30W/40W UV Lamp) – Enables contamination-free working conditions
• Interlocking Safety Mechanism – Prevents simultaneous activation of conflicting functions
• Comprehensive Alarm System:
  • High HEPA filter pressure alert
  • Filter failure replacement warning
  • Low airflow velocity alarm

Package & Accessories

Included Accessories

✔ Base Stand

✔ HEPA Filter (99.995% Efficiency at 0.3μm)

✔ UV Lamp (30W for BBS-V1300-I, 40W for BBS-V1800-I)

✔ LED Lamp (12W for BBS-V1300-I, 16W for BBS-V1800-I)

✔ Waterproof Sockets (2)

✔ Gas Tap

Optional Accessories

✔ Additional UV Lamp

✔ Custom Stainless Steel Work Surface

Applications

🔬 Microbiology & Biotechnology Research – Provides sterile conditions for bacterial culture and cell work

🦠 Pharmaceutical & Drug Preparation – Maintains clean air for compounding & formulation research

🧪 Clinical & Diagnostic Laboratories – Ensures contamination-free environments for medical testing

⚗️ Food & Beverage Microbiology – Prevents cross-contamination in food safety analysis

🛠 Forensic & Veterinary Research Labs – Enables biosafety-compliant biological investigations

Usage Guidelines

• Activate UV sterilization before and after use for maximum decontamination
• Monitor airflow and HEPA filter status for optimal performance
• Keep front sash window at proper working height for effective containment
• Replace filters as scheduled to maintain Class 100 air cleanliness
• Ensure all sample handling follows biosafety guidelines

Regulatory & Safety Information

⚠️ For Research Use Only. Not intended for clinical diagnostics or therapeutic applications.

⚠️ HEPA Filter Maintenance Required – Follow scheduled filter replacement guidelines.

⚠️ UV Lamp Safety Precautions – Avoid direct skin & eye exposure to UV light.

Why Choose the BIOBASE Vertical Laminar Flow Cabinet (BBS-V1800-I)?

🔹 HEPA Filtration for Maximum Sterility (99.995% at 0.3μm) – Ensures clean air conditions for sensitive experiments

🔹 Programmable UV Sterilization for Contamination Control – Reduces risk of microbial cross-contamination

🔹 Energy-Efficient LED Lighting (12W/16W) – Provides bright, low-power illumination

🔹 Spacious Work Area (1.7M Wide) – Ideal for multiple user applications

🔹 Robust Construction with Antibacterial Coating – Ensures long-lasting durability & hygiene

For bulk orders, technical support, or additional information, contact LabMart Limited today.
