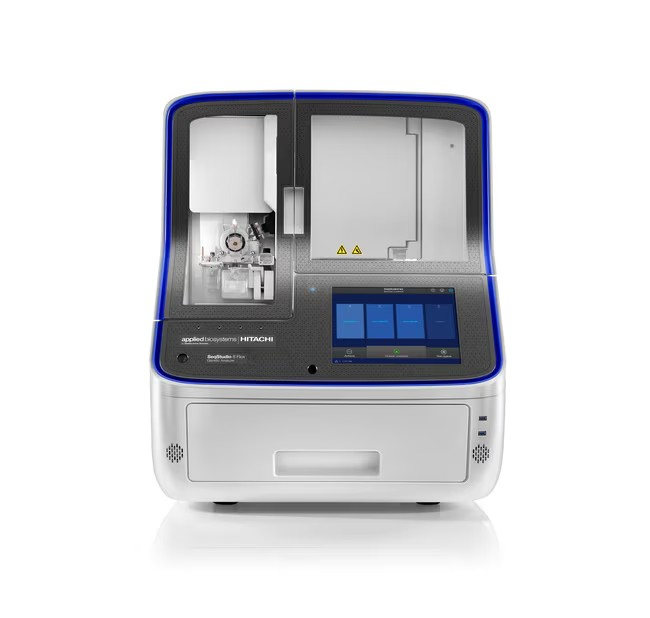

Applied Biosystems™ SeqStudio™ 24 Flex Genetic Analyzer, Desktop
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Capillary Electrophoresis | Warranty | 2 Years |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Thermo Fisher Scientific™, Applied Biosystems™ | ||
| Product Grade | Molecular Biology | ||
The SeqStudio™ 24 Flex Genetic Analyzer is Applied Biosystems’ high-capacity capillary electrophoresis (CE) system for Sanger sequencing and fragment analysis, delivering gold-standard accuracy and reliability in a flexible, cloud-enabled platform. With 24 capillaries, this system triples the throughput of the SeqStudio™ 8 Flex, providing rapid processing of large sample batches while maintaining the ease-of-use and trusted performance of Applied Biosystems CE technology.
Designed for researchers needing mid- to high-throughput sequencing and fragment analysis, the SeqStudio™ 24 Flex supports four-plate continuous loading, urgent sample reprioritization, and remote run monitoring, offering maximum flexibility in workload management. Cloud-enabled via the Thermo Fisher Connect platform, the system allows remote plate setup, monitoring, and data access, as well as automated integration with secondary analysis software for seamless end-to-end workflows.
Key Features
- 24-Capillary CE System: High-capacity platform for large-scale sequencing and fragment analysis.
- Broad Compatibility: Supports 96-well plates, 384-well plates, and 8-tube strips.
- Scalable Workflows: Processes up to 1,104 samples in 23 hours (ShortReadSeq50_POP7xL module).
- Standalone Operation: Touchscreen interface with pre-installed data collection software.
- Scheduling Flexibility: Four-plate capacity with continuous loading and urgent sample reprioritization.
- Remote Access: Cloud-based Thermo Fisher Connect for run monitoring, sample tracking, and secondary analysis (Peak Scanner, Microsatellite Analysis, NGS Confirmation, Variant Analysis).
- Smart Service Integration: Remote troubleshooting tools, Smart Help, and Smart Remote Support minimize downtime.
- Trusted Accuracy: Delivers consistent well-to-well and instrument-to-instrument performance with proven CE technology.
Specifications
| Parameter | Details |
|---|---|
| Capillaries | 24 |
| Capillary Length | 36 or 50 cm |
| Read Length | ≥850 bp (StdSeq50_POP7xL module) |
| Throughput | ≥1,104 samples in 23 hr (ShortReadSeq50_POP7xL module) |
| Capacity | 4 plates |
| Formats Supported | 96-well plates, 384-well plates, 8-tube strips |
| Dimensions (W × D × H) | 70 × 67.5 × 86.5 cm (27.6 × 26.6 × 34.1 in) |
| Weight | 115 kg (253.5 lb) |
| Operating Environment | 15–30 °C; 20–80% RH (non-condensing); stable ±2 °C during runs |
| Polymer Compatibility | POP-4™, POP-6™, POP-7™ |
| Power Requirements | 100/240 V ±10%, 50/60 Hz; electrophoresis voltage up to 20 kV |
| External Computer | Desktop |
| Service Coverage | Standard 1-year warranty; extended warranties available |
| Applications | Sanger sequencing, Fragment analysis |
| Product Line | SeqStudio Flex |
| Unit Size | Each |
Applications
- High-Throughput Sanger Sequencing – DNA, plasmid, and targeted sequencing projects.
- Fragment Analysis – STR genotyping, microsatellite instability, species ID, and cell line authentication.
- NGS Confirmation – Validate and confirm NGS variants with CE sequencing.
- Genome Editing Analysis – CRISPR/Cas9 mutation verification and screening.
- QC Applications – dsDNA quality assessment, biomarker validation, and assay development.
The Applied Biosystems™ SeqStudio™ 24 Flex Genetic Analyzer with Desktop Computer (A53631) is the most powerful instrument in the SeqStudio Flex family, offering 24-capillary throughput for large-scale sequencing and fragment analysis workflows. With its cloud integration, continuous plate loading, and automated troubleshooting, it enables researchers to manage high workloads with confidence, reliability, and ease. An ideal platform for genomics facilities, core labs, translational research centers, and biotech R&D labs, the SeqStudio™ 24 Flex combines trusted Applied Biosystems CE technology with the scalability required for today’s demanding sequencing environments.
