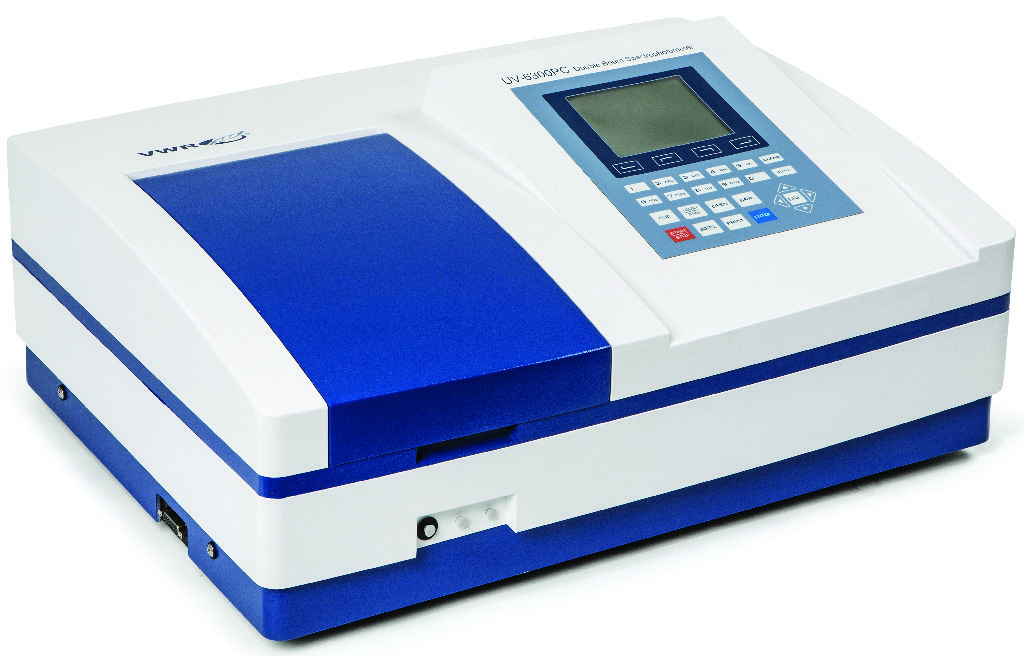

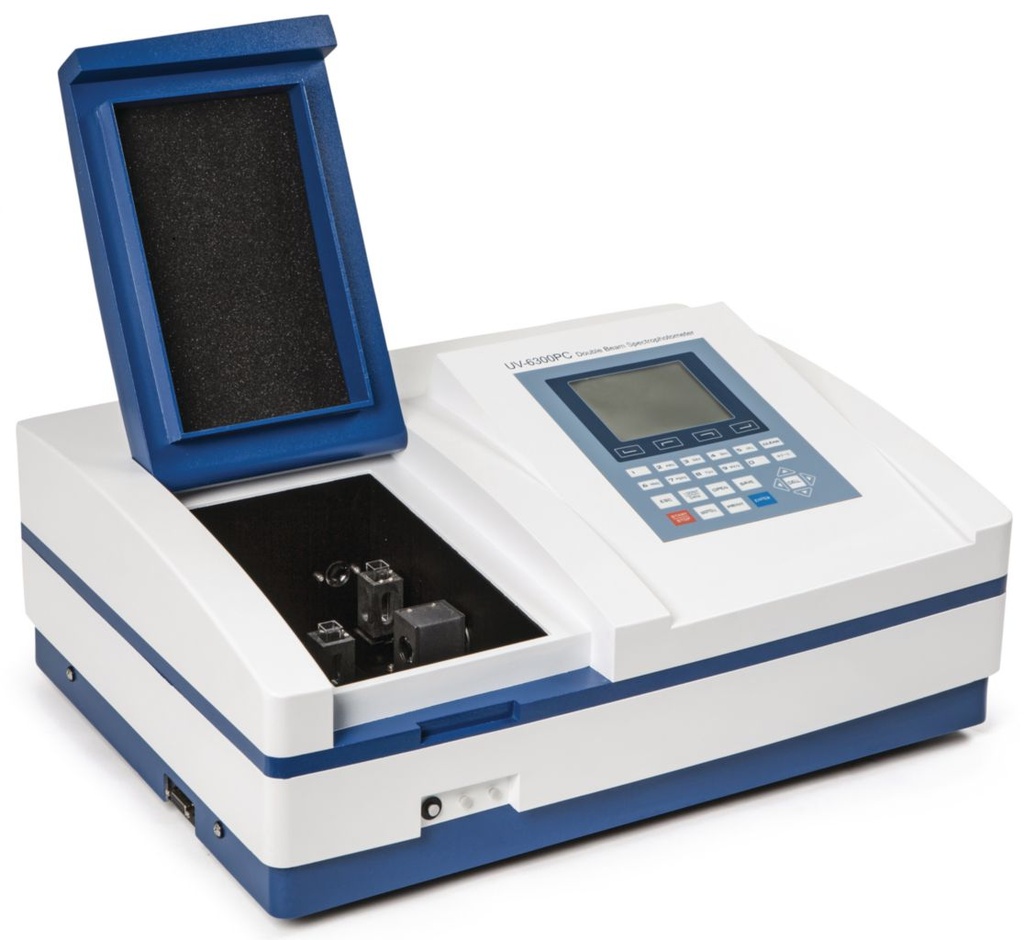

VWR® UV-6300PC, UV/Visible Spectrophotometer
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Spectrophotometry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | VWR | ||
| Product Grade | Analytical grade | ||
The VWR® UV-6300PC is a high-performance UV/Visible spectrophotometer equipped with a double-beam optical system, designed for quantitative and qualitative analysis across a wide range of applications including pharmaceutical, biochemical, clinical, research, and quality control laboratories. With a wavelength range of 190–1100 nm, precision optics, and powerful software integration, it supports both stand-alone operation and PC-controlled workflows.
Key Features
- Wavelength range: 190–1100 nm
- Double-beam optical system for enhanced stability and accuracy
- LCD Display (320×240 P) with multi-language support (EN, FR, DE, ES)
- Supports absorbance, transmittance, and concentration measurements
- Advanced functionality: quantitative analysis, kinetics, multi-wavelength scan, DNA/RNA, and protein analysis
- Built-in memory: stores 200 results and 200 spectra
- Includes UV-Vis Analyst Software for extended PC-based data processing and storage
- USB and parallel printer output
Technical Specifications
| Parameter | Value |
|---|---|
| Model | UV-6300PC |
| Wavelength Range | 190–1100 nm |
| Wavelength Accuracy | ±0.3 nm |
| Scanning Speed | 100–3000 nm/min (intervals: 0.1–5.0 nm) |
| Photometric Range | 0–200% T; 0–9999 conc. |
| Absorbance Range | –0.3 to +3.0 A |
| Absorbance Accuracy | ±0.002 A @ 1.0 A |
| Photometric Accuracy | ≤0.3% T |
| Photometric Stability | 0.001 A/h @ 500 nm |
| Stray Light | ≤0.05% T @ 220 and 360 nm |
| Light Source | Tungsten / Deuterium |
| Display | 320×240 P LCD |
| Output Interface | USB, parallel printer |
| Memory | 200 results + 200 curves |
| Power Supply | 110/220 V, 50/60 Hz |
| Dimensions (W×D×H) | 590 × 420 × 260 mm |
| Weight | 26 kg |
Applications
- DNA/RNA and protein quantification
- Quantitative analysis and kinetics
- Multi-wavelength and full spectrum scanning
- UV-Vis absorbance/transmittance measurements
- Suitable for research, pharmaceutical, clinical, and QC labs
What’s Included
- UV-6300PC instrument
- 4 optical glass cells
- 2 quartz cells
- Dust cover
- USB stick (8 GB)
- UV-Vis Analyst PC software
- USB cable
- Cell holders (sample and reference)
- Power cables (UK, CH, EU plugs)
VWR® UV-6300PC delivers reliable, high-resolution UV-Vis spectroscopy for routine and advanced lab use, with versatile data handling via built-in functions or enhanced PC software.
