Lovibond® BD600 Respirometric BOD Meter, 6 positions
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Water Quality Analysis, Biochemical Oxygen Demand (BOD) | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Lovibond | ||
| Product Grade | Analytical grade | ||
Automated BOD Measurement System for Reliable Wastewater Process Control

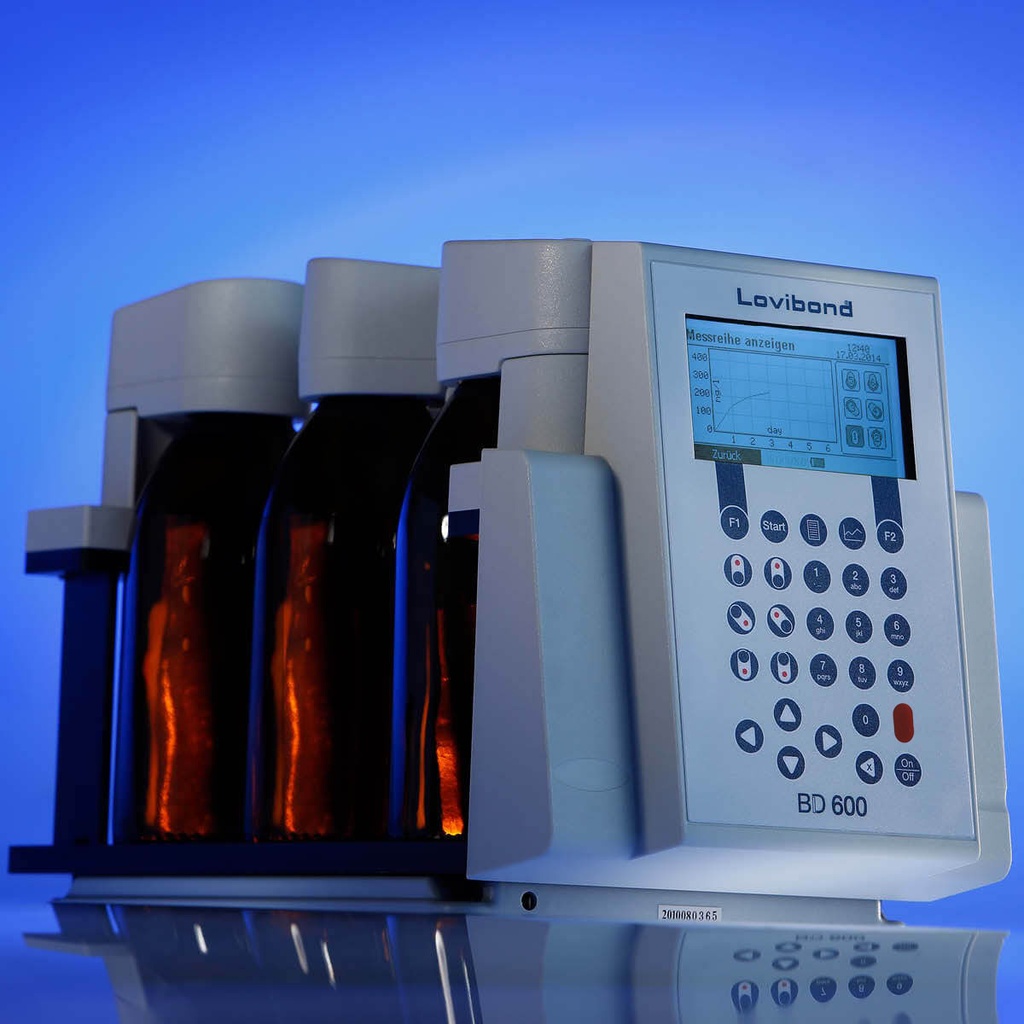

The Lovibond® BD600 is a high-performance respirometric BOD (Biochemical Oxygen Demand) meter designed for laboratories and wastewater treatment facilities seeking precise, unattended measurement of up to six samples simultaneously. With a mercury-free, manometric system, the BD600 simplifies sample preparation, eliminates routine manual tracking, and enables easy interpretation of BOD values and trends through its large graphical display.
Key Features
- Fully Automated Measurement: Unattended sample monitoring for up to 28 days
- Six-Position System: Analyze multiple samples simultaneously under identical conditions
- Wide Measuring Range: 0–40 to 0–4000 mg/L BOD, selectable based on application
- User-Friendly Interface: Large backlit display with graphical trend representation
- Data Storage & Transfer: USB and SD card interfaces for exporting test results
- Remote Viewing: Includes remote control for non-contact display access through incubator glass
- Automatic Start Function: Ensures consistent sample temperature before beginning test
- Sample Tracking: Assign sample ID or names to support traceability
Applications
- Municipal & Industrial Wastewater Treatment
- Environmental Compliance Testing
- Process Optimization in Biological Treatment Systems
- Routine Laboratory Monitoring of Organic Load
Technical Specifications
| Specification | Details |
|---|---|
| Measuring Principle | Manometric (mercury-free pressure sensor) |
| Measuring Range | 0–40, 0–80, 0–200, 0–400, 0–800, 0–2000, 0–4000 mg/L |
| Measuring Stations | 6 |
| Display | Backlit LCD, with real-time trend graph |
| Interfaces | USB, SD Card |
| Measurement Time | 1–28 days (user-selectable) |
| Storage Interval | Hourly (Day 1), Every 2 hrs (Day 2), Daily (Day 3–28) |
| Clock | Real-Time Clock with Date |
| Autostart | Yes |
| Power Supply | 100–240 V / 50–60 Hz |
| Dimensions (L × W × H) | 7.13 x 9.06 x 14.76 in |
| Weight (Total with Kit) | 5775 g |
| Compliance | CE, EMC DIN EN 61326 |
Measurement Range Options
| Range | Method No. |
| 0–40 mg/L BOD | — |
| 0–80 mg/L BOD | — |
| 0–200 mg/L BOD | — |
| 0–400 mg/L BOD | — |
| 0–800 mg/L BOD | — |
| 0–2000 mg/L BOD | — |
| 0–4000 mg/L BOD | — |
Compatible Reagents & Accessories
| Title | Packaging Unit | Part Number |
| Nitrification Inhibitor | 1 pc | 2418642 |
| Potassium Hydroxide Solution 45% | 1 pc | 2418634 |
| System Check Test Set (10 tablets) | 1 pc | 2418328 |
Delivery Content
- BD600 with 6 sensor heads
- Control unit with batteries
- Power supply (Y-cable for BD600 + stirring unit)
- Inductive stirring unit
- 6 Sample bottles, rubber gaskets, and stirring rods
- 50 mL potassium hydroxide solution 45%
- 50 mL nitrification inhibitor solution
- Overflow measuring flasks: 157 mL & 428 mL
- Remote control
- Instruction manual and guarantee documentation
The Lovibond® BD600 Respirometric BOD Meter is a powerful tool for reliable, automated BOD analysis. Designed to simplify workflow and ensure accuracy, it offers unmatched convenience for water quality labs and operators, from sample tracking to remote readout and scalable measurement ranges.
