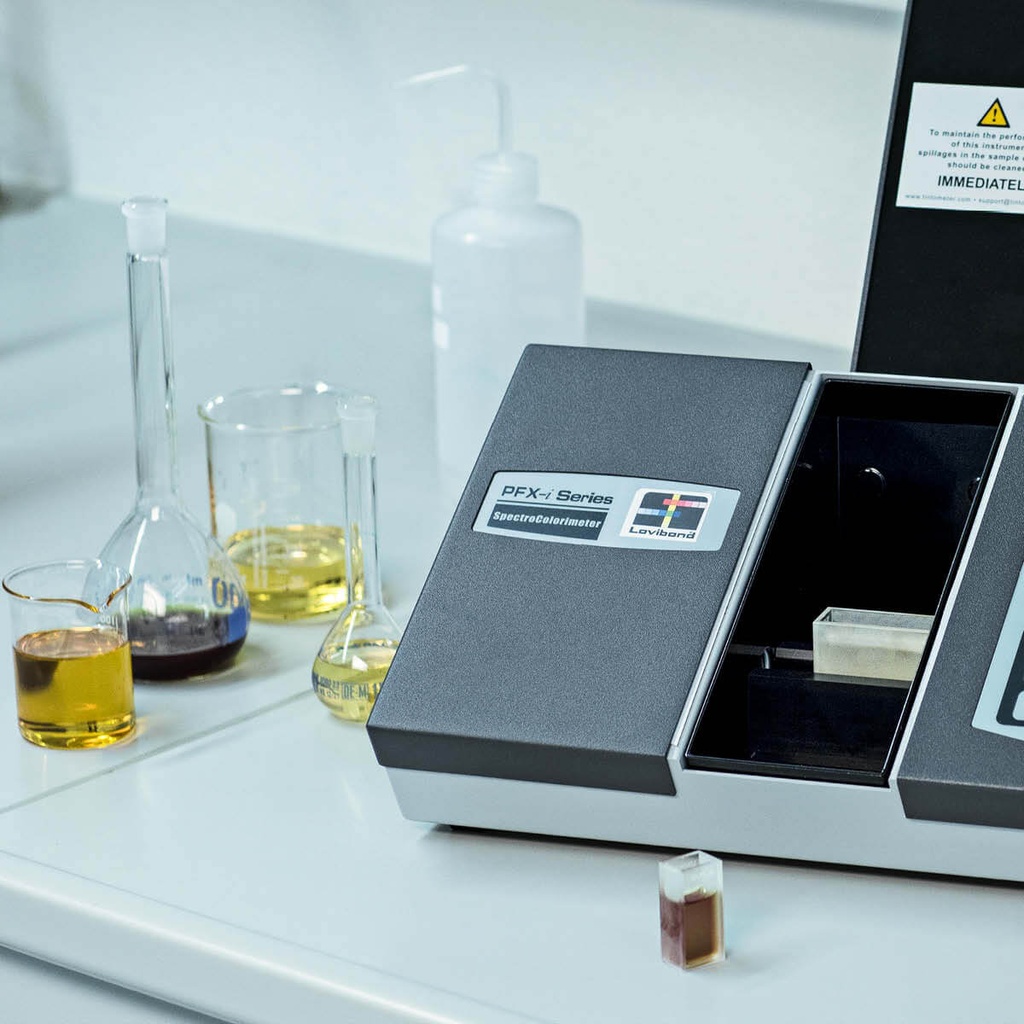

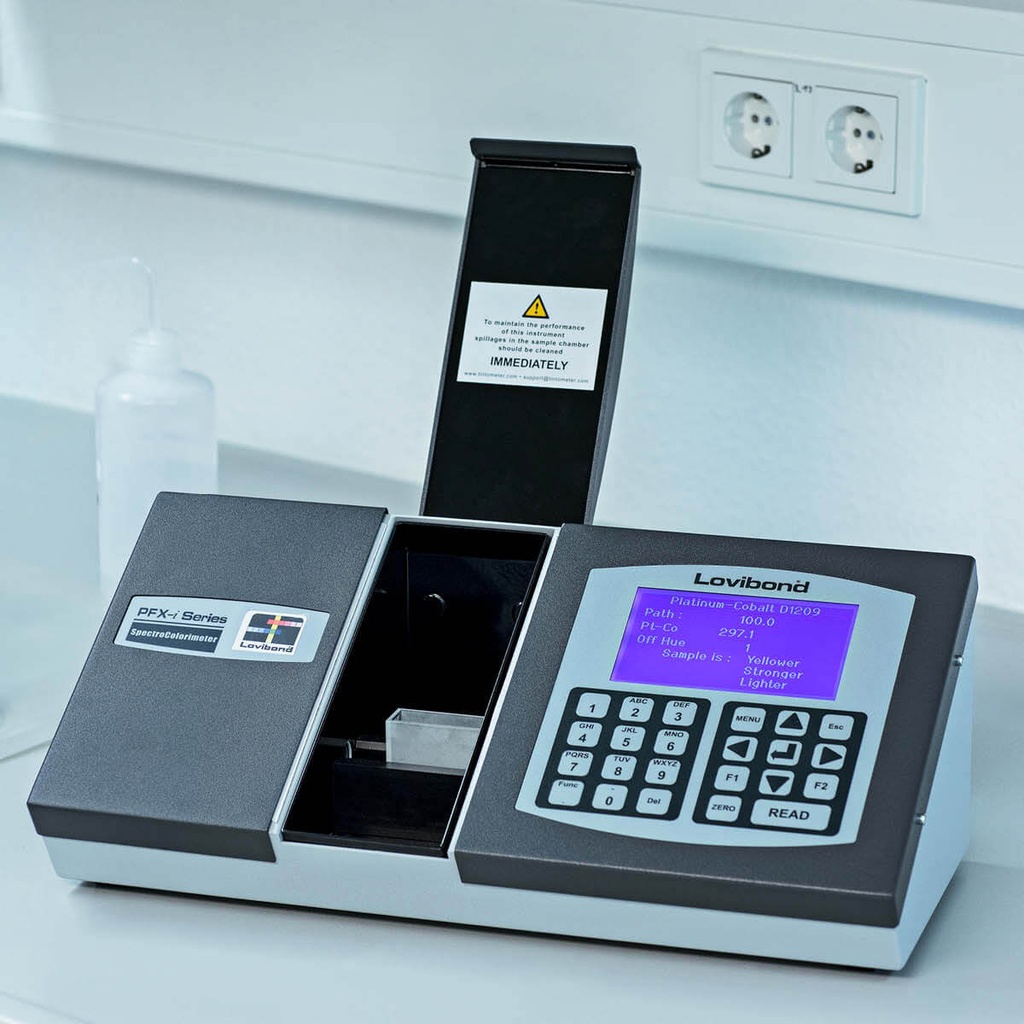

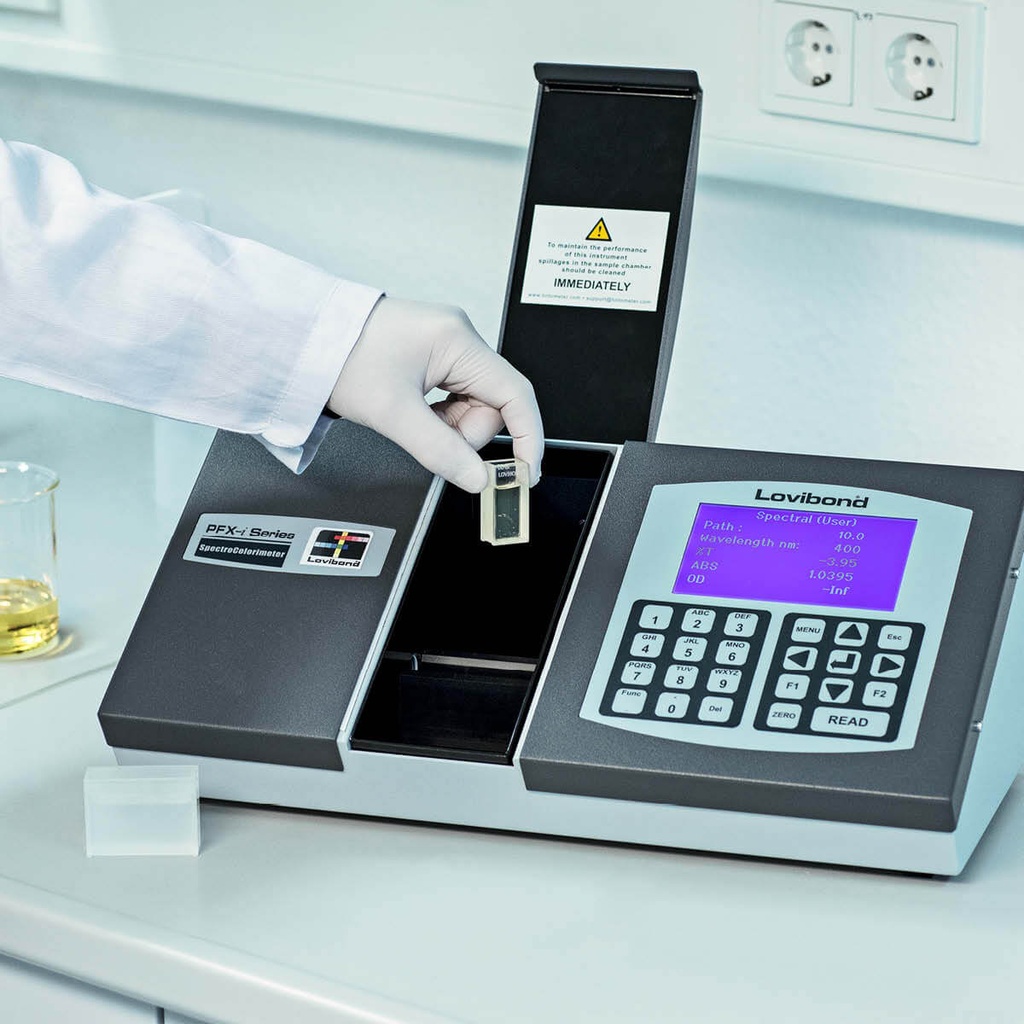

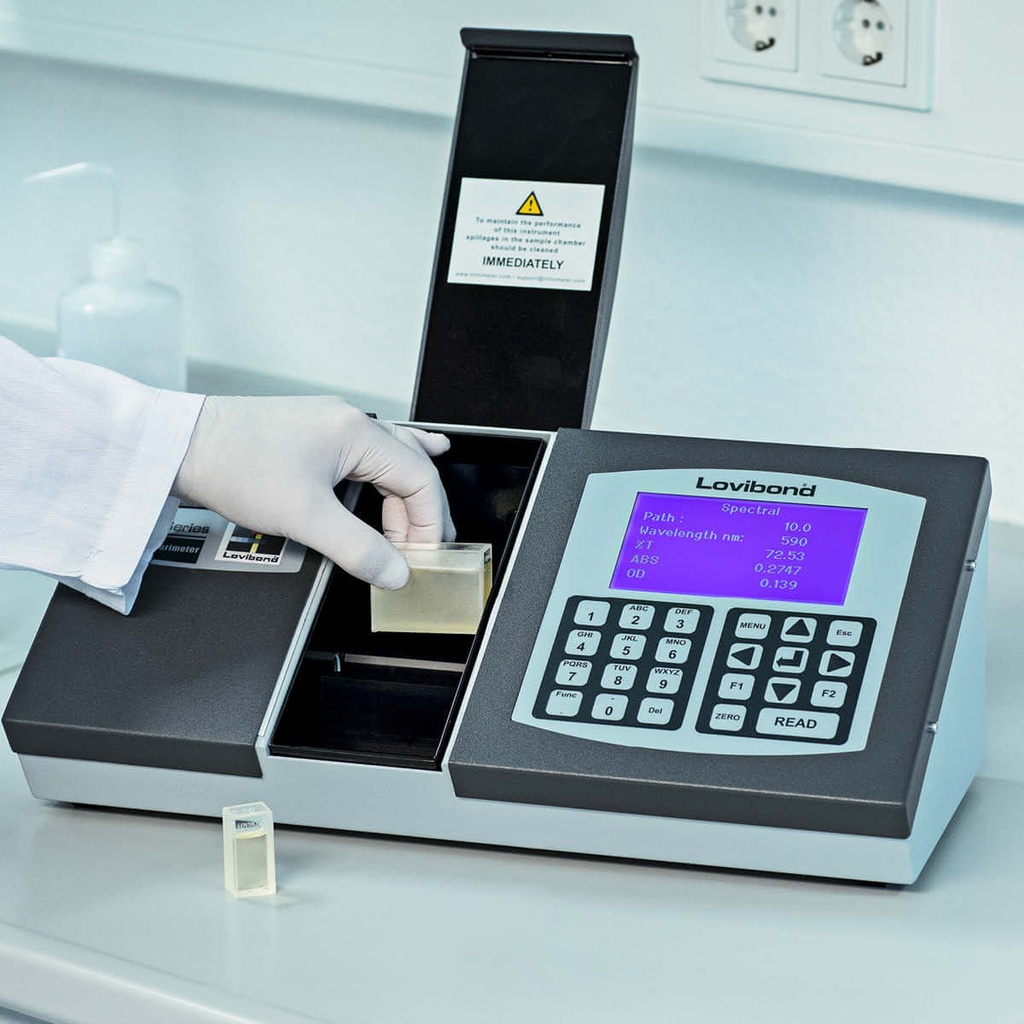

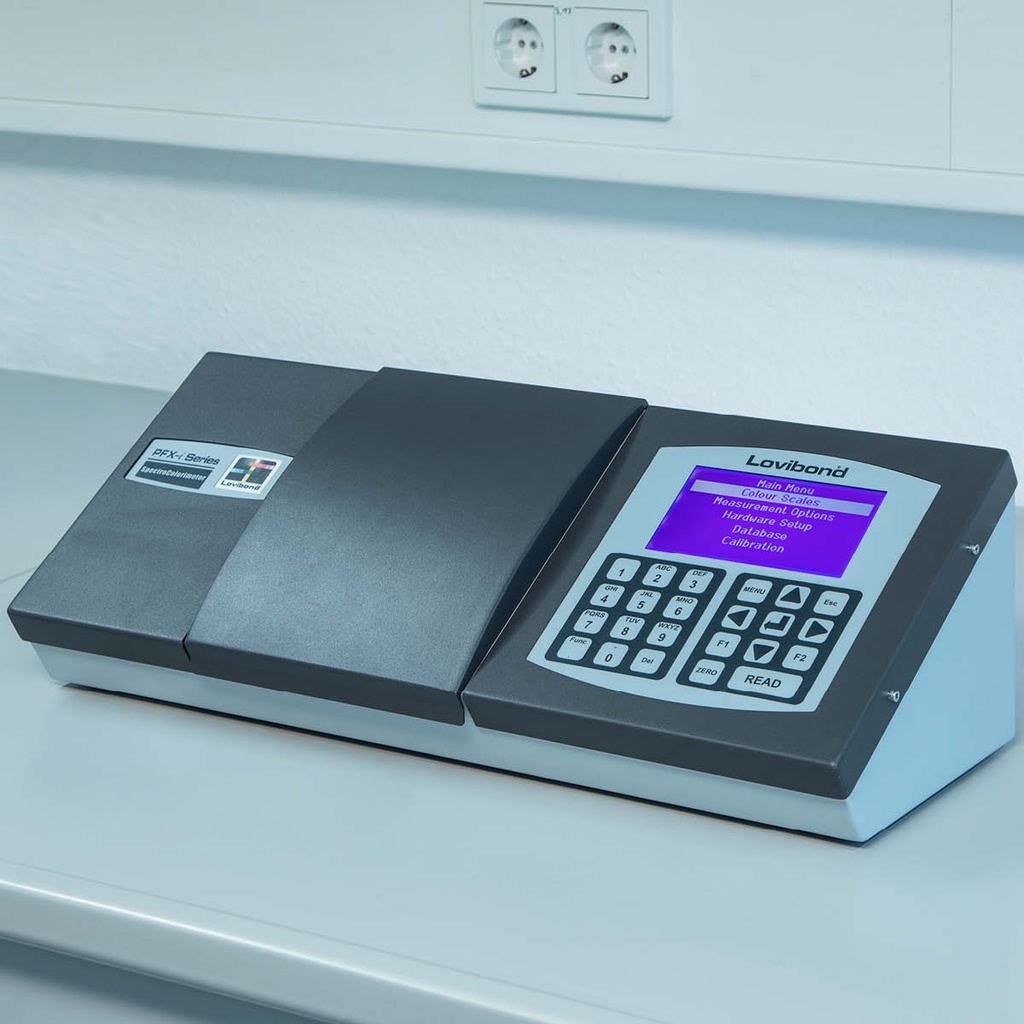

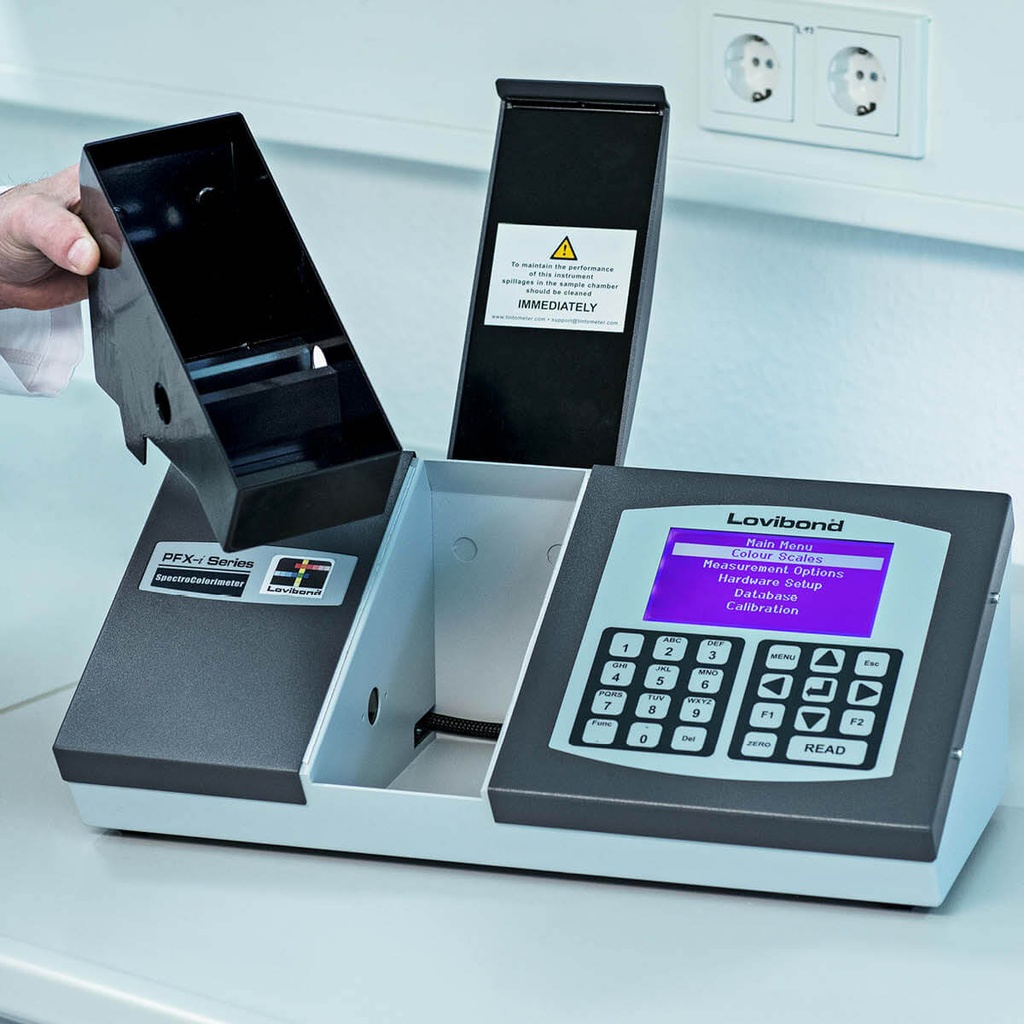

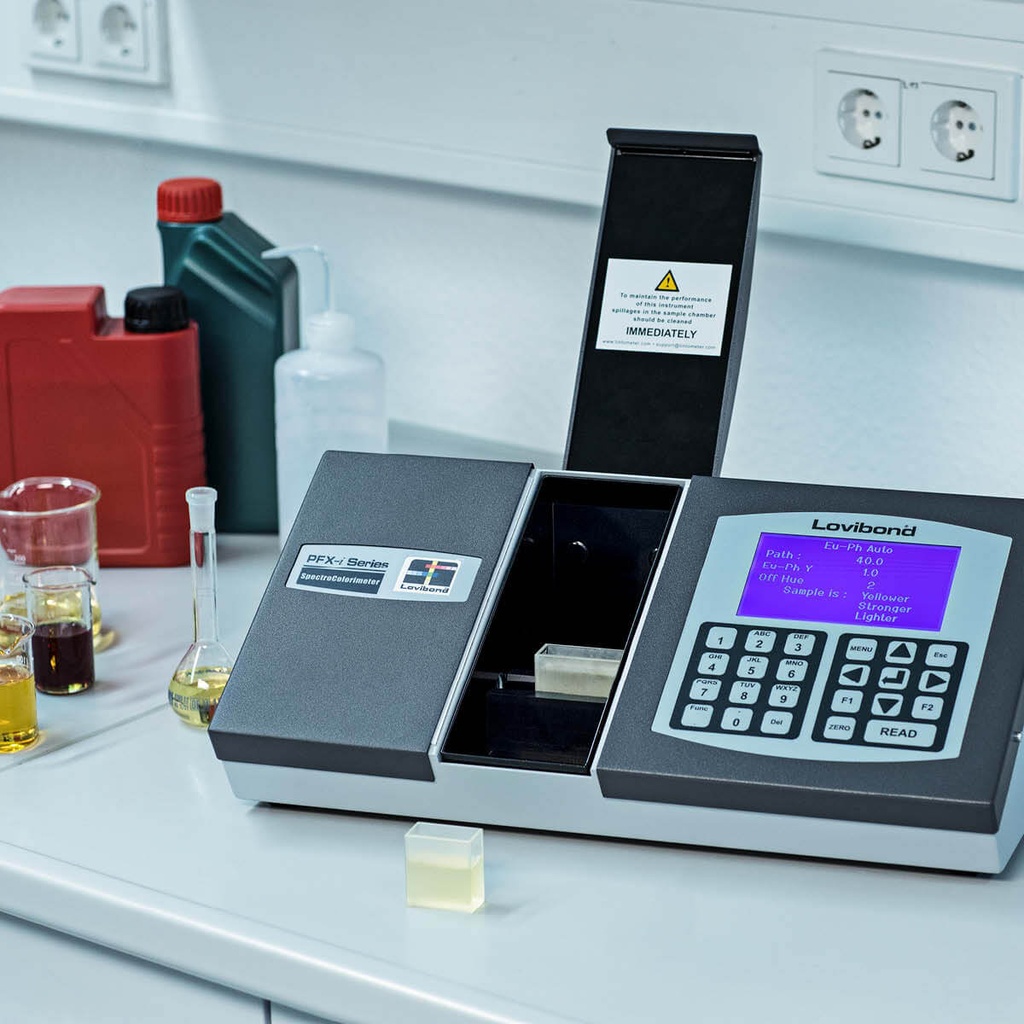

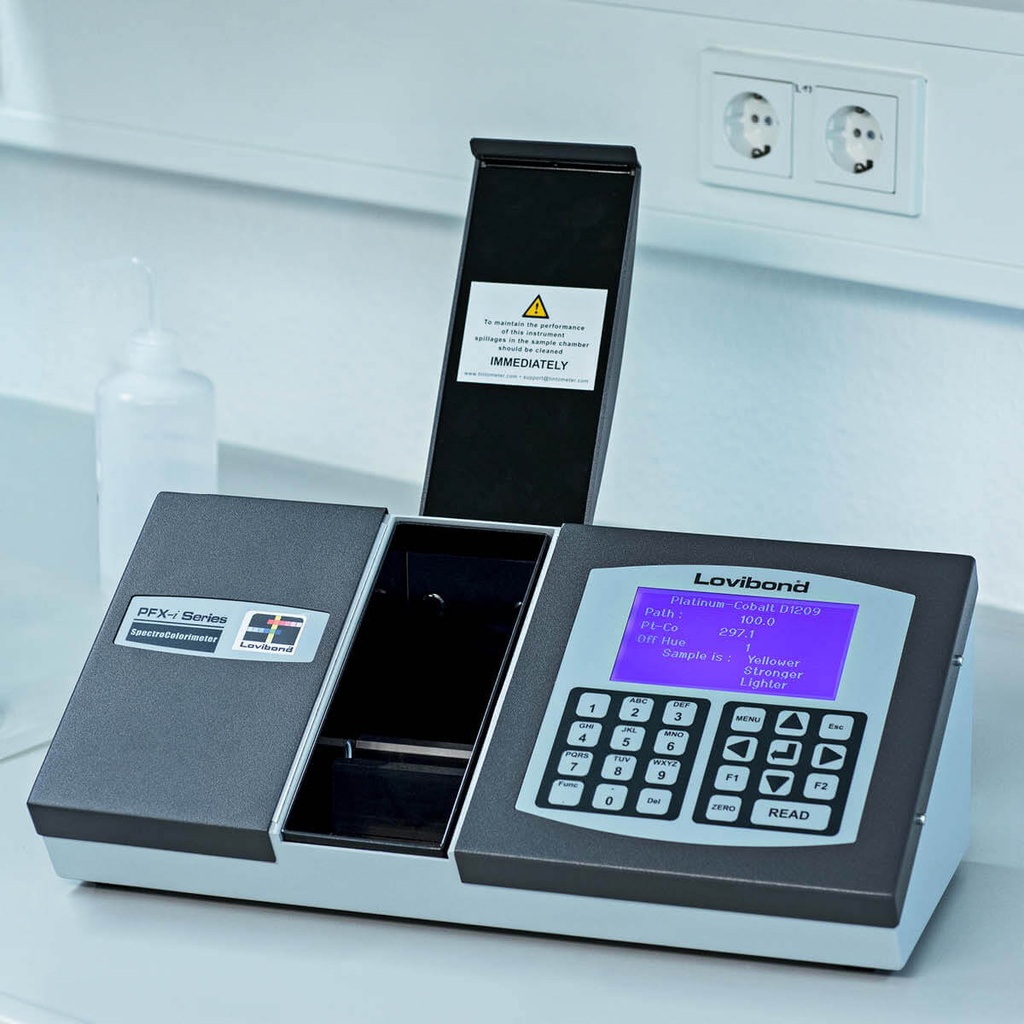

Lovibond™ PFXi-880/P Automatic Saybolt and ASTM Colorimeter, Heated
Catalog No :
CAS Number :
Brand :
In Stock
Applicable Standard ASTM D156
ASTM D1500
ASTM D6045
ASTM E308
ISO 2049
Specifications:
| Application | Colorimetry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Lovibond | ||
| Product Grade | Analytical grade | ||
High-Precision, Heated Spectrophotometric Colorimeter with Remote Calibration
The Lovibond™ PFXi-880/P is a premium benchtop colorimeter designed for automatic, non-subjective color grading of transparent liquids such as petroleum oils, waxes, and solvents. Uniquely equipped with an integrated heater unit, it maintains sample temperature above the "cloud point," making it ideal for materials that require precise thermal control. Featuring RCMSi technology, it supports remote calibration and maintenance via the internet, ensuring compliance with industry standards and maximizing uptime.
Key Features
- RCMSi Technology: Remote calibration & maintenance via the internet
- Integrated Heater: Maintains sample temperature +10°C above the cloud point
- Extended Sample Chamber: Accepts cells up to 6" (153 mm) path length for ultra-light samples
- 16 Wavelength Filters: High-resolution, filter-based color measurement
- Automatic, Non-subjective Readings: Consistent results with no human error
- Off-Hue Calculation: Indicates deviation from target color with hue and saturation metrics
- International Standard Compliance: Compatible with ASTM, ISO, and CIE methodologies
- Software Included: Control software allows remote operation, spectral analysis, and reporting
Applications
- Petroleum Products (oils, fuels, lubricants)
- Waxes, Resins, Fats (temperature-sensitive samples)
- Industrial Solvents and Chemicals
- Quality Control in Refining and Production Facilities
Supported Color Scales
| Scale | Path Length | Range | Resolution | Standard |
|---|---|---|---|---|
| CIE Lab* | 1 mm - 6" | Based on spectral locus | 0.01 | ASTM E308 |
| Transmission % | 1 mm - 6" | 0 - 100% | 0.1% | - |
| Optical Density | 1 mm - 6" | 0 - 2.5 | 0.0001 | - |
| Absorbance | 1 mm - 6" | 0 - 1 | 0.0001 | - |
Additional scales (e.g., Saybolt, ASTM, Pt-Co, APHA) can be added via remote upgrade.
Technical Specifications
| Specification | Details |
| Measuring Principle | 16 interference filters |
| Spectral Range | 420 - 710 nm |
| Bandwidth | 10 nm |
| Repeatability | ±0.0004 (CIE xy Chromaticity) |
| Display | 240 x 128 back-lit graphic (white on blue) |
| Detector | Blue-enhanced photodiode |
| Geometry | 0° - 180° transmission |
| Path Lengths | 0.1 - 153 mm (6") |
| Measurement Time | <30 seconds |
| Storage | 100,000+ measurements |
| Interfaces | USB, RS232, Ethernet |
| Calibration | Single-keypress, fully automated |
| Power Supply | 90 - 240 VAC |
| Dimensions | 515 x 170 x 196 mm |
| Languages | EN, FR, DE, IT, PT, RU, ES, CN, JP |
| Compliance | CE, RoHS, WEEE |
Included in Delivery
- Lovibond™ PFXi-880/P Colorimeter with Heater
- RCMSi Starter Pack
- External Power Supply & Multinational Leads
- USB, RS232, Ethernet Cables
- Software and Manuals on USB Drive

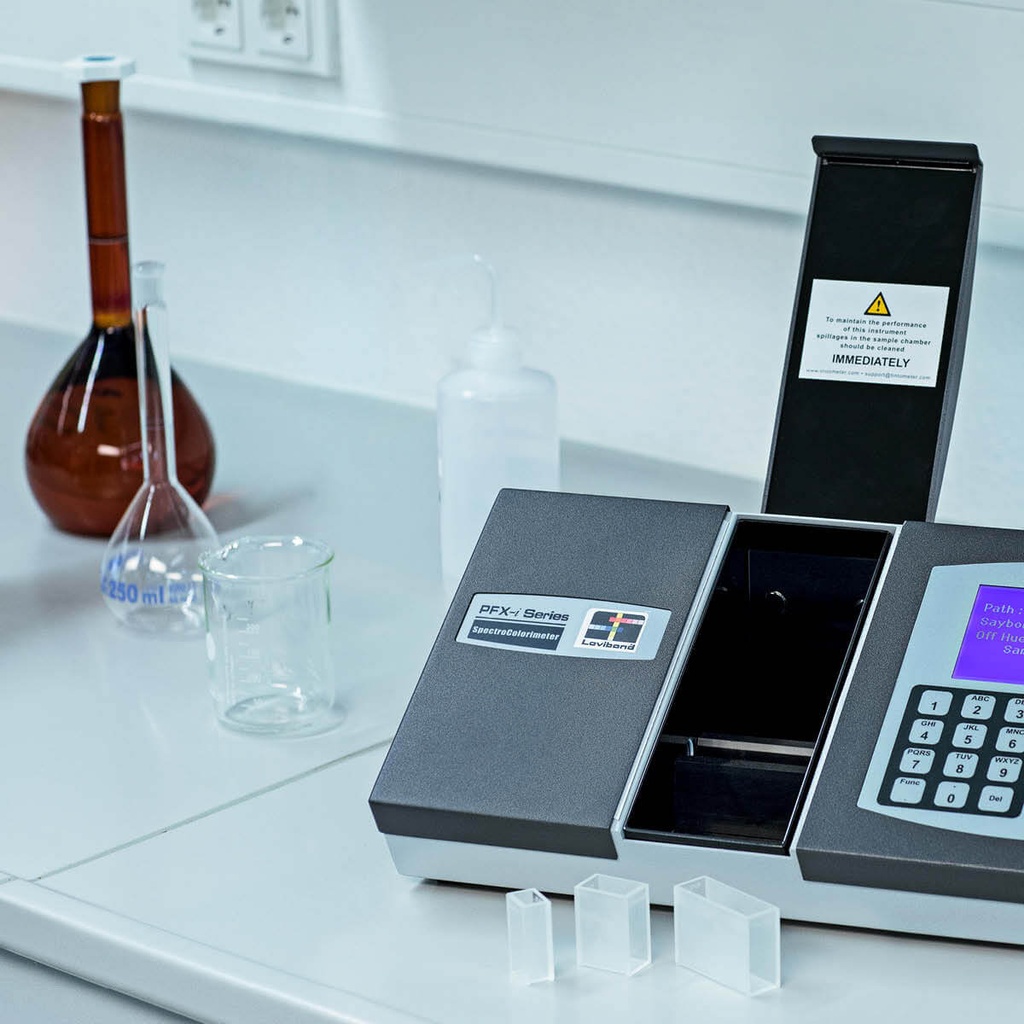

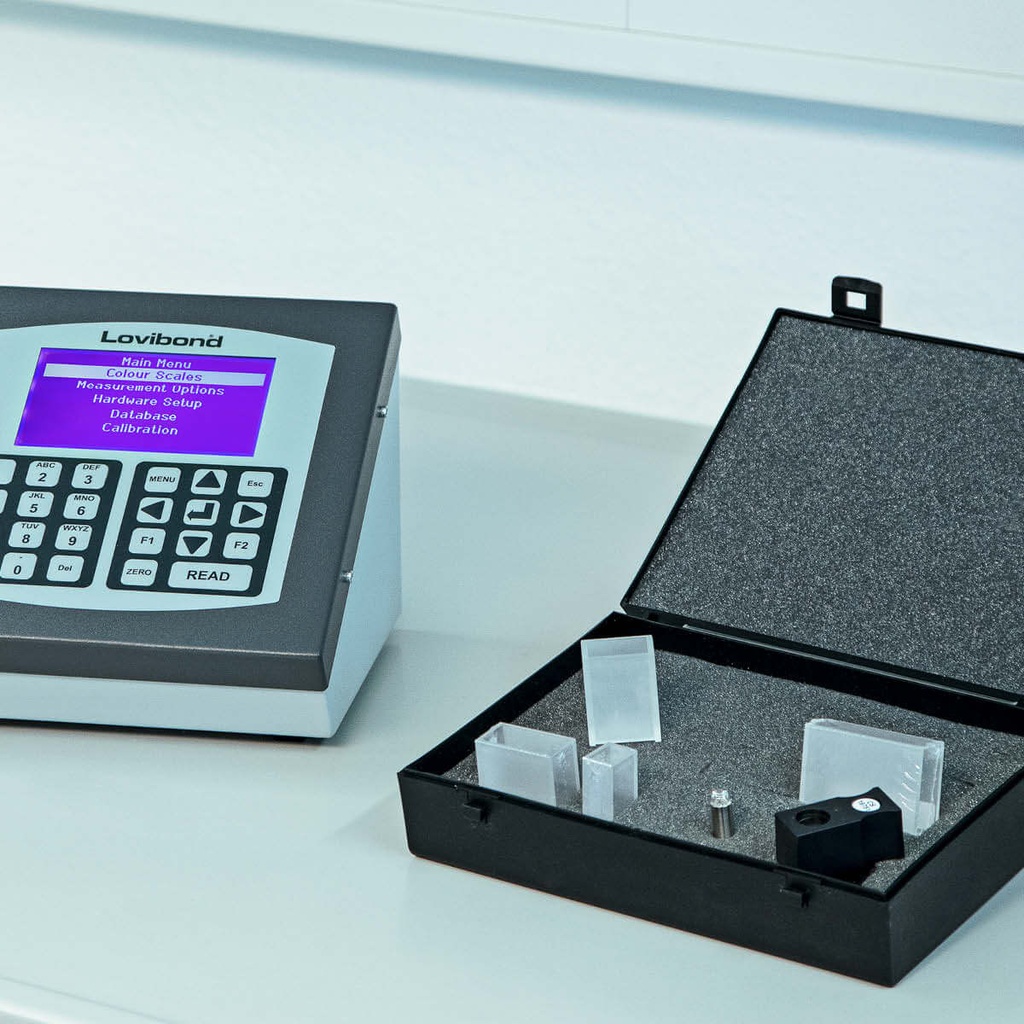

- Sample Cells and Conformance Filters
- Certificate of Conformity
The Lovibond™ PFXi-880/P is the ultimate instrument for professionals needing automated, high-accuracy color grading for clear, often thermally sensitive samples. Its integrated heater, long path length support, and remote calibration features make it the gold standard for petroleum and wax color testing. Dependable, rugged, and compliant with global standards, it ensures absolute confidence in every result.
