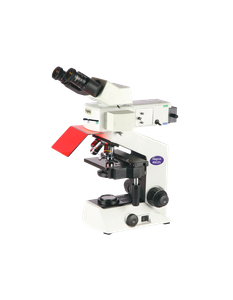

Magnus Digital Microscope, MX21i with Cilika Digital Head & Apple Ipad

The Magnus MX21i Digital Microscope is an advanced, all-digital microscope equipped with a Cilika Digital Head and a 10.2-inch Apple iPad. This system integrates cutting-edge optical technology with modern digital imaging, making it ideal for applications in research, education, and diagnostics. Its ergonomic design and precision mechanics ensure excellent usability and high-quality imaging.

Key Features

Digital Observation Head

• Apple iPad Integration:
  • 10.2-inch display with an 8-megapixel camera.
  • Mounting adaptor eliminates the need for observation tubes and eyepieces.
  • Provides a 100% field of view in still images, ensuring accurate and comprehensive imaging.

Optics

• Superior Infinity Plan Achromat Objectives:
  • Deliver crisp, high-resolution images.
  • Ideal for detailed examination in biological, clinical, or material science applications.

Body

• Aluminum Die-Cast Construction:
  • Durable and robust, designed for precision.
  • Critical movements supported by ball bearings and wire guides for smooth and precise manipulation.

Mechanical Stage

• Co-axial Low-Drive Design:
  • 120x132 mm stage with wire movement.
  • Transverse area of 30x76 mm with a single slide holder.
  • Ensures stability and accuracy during sample examination.

Focusing System

• Dual Control Mechanism:
  • Co-axial coarse and fine focus controls.
  • Coarse focus range: 20 mm.
  • Fine focus adjustment: 0.25 mm per rotation.

Condenser

• Abbe-Condenser (N.A 1.25):
  • Rack and pinion mounted for focus adjustment.
  • Continuously variable iris diaphragm for optimal light control.

Illumination Options

• LED Illumination:
  • 3W LED light source with high brightness and 30,000-hour lifespan.
  • 1W LED light source with battery back-up:
    • NiMH rechargeable batteries offer 6–8 hours of operation on a full charge.

Nosepiece

• Quadruple Revolving Nosepiece:
  • Ball-bearing mechanism with a positive click stop for smooth and precise objective changes.

Specifications Summary

Applications

• Research: Ideal for detailed biological and material studies.
• Education: Engages students with live digital imaging.
• Clinical Diagnostics: High-quality imaging for clinical sample analysis.
• Material Science: Precision optics for industrial or material analysis.

When comparing the Magnus MX21i Digital Microscope with integrated Cilika Digital Head and Apple iPad to similar models from leading brands like Olympus, Zeiss, and Nikon, several key factors emerge:

1. Digital Integration and Imaging

• Magnus MX21i:
  • Features a 10.2-inch Apple iPad with an 8-megapixel camera, providing a 100% field of view in still images.
  • The iPad serves as both the viewing screen and imaging device, streamlining the workflow.
• Olympus, Zeiss, and Nikon:
  • Typically offer proprietary digital cameras and software integrated into their microscopes.
  • For instance, Zeiss provides the Axiocam series of cameras, which can connect to PCs, laptops, or iPads via the ZEISS Labscope software Zeiss.
  • These systems often require additional components for digital imaging and may not offer the same level of integration with consumer devices like the iPad.

2. Optical Quality

• Magnus MX21i:
  • Equipped with Superior Infinity Plan Achromat Objectives, delivering crisp images suitable for various applications.
• Olympus, Zeiss, and Nikon:
  • Renowned for high-quality optics, offering advanced objective lenses such as Plan Apochromat and Plan Fluorite, which provide superior color correction and image clarity.
  • For example, Olympus offers Plan Fluorite Objectives ideal for brightfield, darkfield, DIC, fluorescence, or polarization microscopy Edmund Optics.

3. Build and Ergonomics

• Magnus MX21i:
  • Constructed with an aluminum die-cast body, ensuring durability.
  • Features co-axial coarse and fine focus controls, and a co-axial low-drive mechanical stage for precise manipulation.
• Olympus, Zeiss, and Nikon:
  • Offer robust construction with ergonomic designs tailored for user comfort during extended use.
  • Incorporate advanced focusing mechanisms and stage controls for precise sample handling.

4. Illumination

• Magnus MX21i:
  • Provides options for 3W LED illumination with a lifespan of 30,000 hours, and a 1W LED light source with battery backup offering 6–8 hours of operation.
• Olympus, Zeiss, and Nikon:
  • Utilize advanced LED illumination systems with adjustable intensity and color temperature, enhancing image quality across various applications.

5. Cost and Accessibility

• Magnus MX21i:
  • Offers an integrated digital solution at a potentially lower cost, leveraging the widespread familiarity and usability of the Apple iPad.
• Olympus, Zeiss, and Nikon:
  • Provide premium systems with advanced features, which may come at a higher price point.
  • Their proprietary digital imaging solutions may require additional investment in cameras and software.

The Magnus MX21i Digital Microscope stands out for its seamless integration with the Apple iPad, offering a user-friendly digital imaging experience. While it provides high-quality optics and robust construction, leading brands like Olympus, Zeiss, and Nikon offer advanced optical systems and proprietary digital solutions that may cater to specialized applications requiring superior image quality and customization. The choice between these options depends on specific application needs, budget considerations, and the desired level of digital integration

Here’s a tabulated comparison of the Magnus MX21i Digital Microscope with similar models from Olympus, Zeiss, and Nikon:

Key Takeaways

• Magnus MX21i: Best for users seeking a cost-effective, user-friendly, and integrated digital solution for general research, education, or clinical use.
• Olympus, Zeiss, Nikon: Superior optics and advanced features for specialized and high-end applications, but at a higher price point and complexity.
