Specifications:
| Application | microscopy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Analytical grade | ||
The Magnus MX35i PRO Trinocular Microscope is a high-performance infinity-corrected laboratory microscope designed for advanced routine microscopy, teaching, clinical observation, and research documentation. Built with premium Plan Achromat optics, an inward quintuple nosepiece, and a camera-ready trinocular head, the MX35i PRO delivers excellent field flatness, sharp contrast, and long-term mechanical stability.
This model features an integrated high-efficiency LED illumination system with rechargeable battery backup, automatic ECO shut-off, and ergonomic controls, making it ideal for laboratories requiring reliable microscopy even under unstable power conditions.
Key Features
- Trinocular microscope for observation and digital imaging
- Infinity-corrected optical system (UIS2 plan optics)
- Quintuple inward revolving nosepiece with positive click stops
- Plan Achromat objectives up to 100× oil immersion
- Widefield eyepieces with FN 22 mm field of view
- High-brightness LED illumination with battery backup
- Auto LED-Off ECO mode for energy saving
- Coaxial coarse and fine focusing with smooth precision control
- Available in premium soft-feel color finishes
Optical System
| Component | Specification |
|---|---|
| Optical System | UIS2 Infinity Corrected Plan Optics |
| Eyepieces | WF 10× / FN 22 mm (with eyeguards) |
| Observation Head | Trinocular, 30° inclined, 360° rotatable |
| Interpupillary Distance | 48 – 75 mm |
| Light Path Split | Fixed 70:30 (Camera : Eyepieces) |
Objective Configuration (Standard Set)
| Objective | NA | Working Distance |
|---|---|---|
| 4× Plan Achromat | 0.10 | 18.5 mm |
| 10× Plan Achromat | 0.25 | 10.6 mm |
| 20× Plan Achromat | 0.45 | 1.67 mm |
| 40× Plan Achromat (Spring Loaded) | 0.65 | 0.60 mm |
| 100× Oil Immersion (Spring Loaded) | 1.25 | 0.13 mm |
Illumination & Power System
- 3W LED light source (30,000-hour life)
- Rechargeable lithium-ion battery backup (approx. 4–5 hours)
- Intelligent ECO Auto-Off activates after 30 minutes of inactivity
- LED status indicators for charging and battery operation
- Cord hanger/basket included for adaptor storage
Focusing System
| Feature | Specification |
|---|---|
| Coarse Focus Range | 20 mm |
| Fine Focus Rotation | 0.3 mm |
| Controls | Coaxial coarse & fine knobs |
Rackless Mechanical Stage (Smooth & Safe)
- Co-axial low-drive rackless stage
- Stage size: 125 mm × 145 mm
- Traverse area: 76 mm × 30 mm
- Supplied with single slide holder
Optional Accessories
- Phase Contrast Attachment (PCD4x)
- Darkfield Attachment
- EPI LED / Köhler illumination upgrade
- Polarizing attachment
- Heating stage

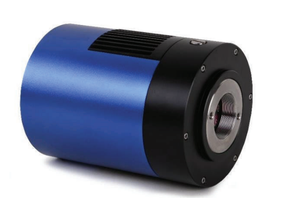

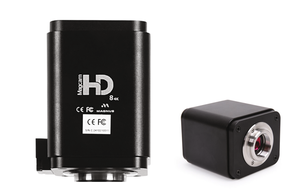

- MagCam Digital Cameras (DC & HD Series)
- C-Mount Camera Adapter
- Security lock
The Magnus MX35i PRO Trinocular Microscope is a premium, future-ready laboratory microscope combining infinity optics, a full objective set up to 100× oil immersion, integrated battery-backed LED illumination, and flexible mechanical stage configurations. With its imaging-ready trinocular head and elegant ergonomic design, it is an excellent solution for universities, diagnostic teaching labs, biomedical research centers, and routine microscopy applications requiring dependable performance and documentation capability.
