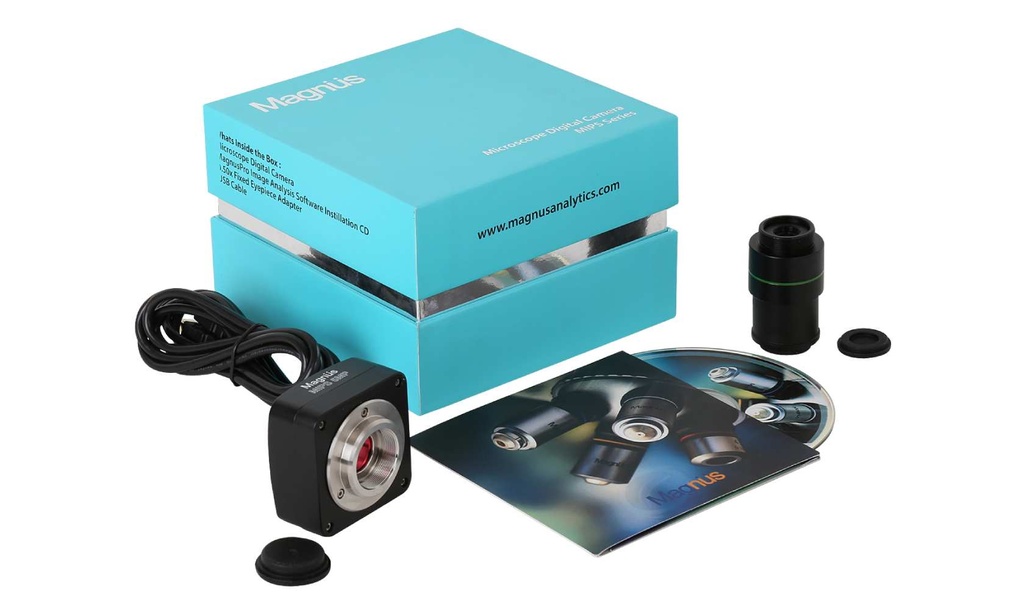

Magnus Magcam DC Series Digital Camera with CMOS Sensors
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | microscopy |
| Product Type | Microscope Accessory |
| Product Brand | Magnus |
| Product Grade | Analytical grade |
The Magnus MagCam Digital Camera Series provides high-quality digital imaging solutions for microscopy applications across education, pathology, and research laboratories.
Built with a durable aluminum alloy housing, high-sensitivity CMOS sensors, and standard C-mount interface, these cameras deliver exceptional clarity, fast frame rates, and seamless integration with most compound and stereo microscopes.
Available in 2.3, 3, 5, 10, and 14 megapixel variants, the MagCam series is fully compatible with Windows, Linux, and Mac operating systems, making it a flexible imaging tool for academic, clinical, and industrial laboratories.
Key Features
1. High-Quality CMOS Imaging
- Advanced CMOS sensors provide superior image quality, color accuracy, and low noise.
- Available in multiple resolutions (2.3 MP to 14 MP) to suit diverse imaging needs — from routine teaching to high-resolution research documentation.
- Ideal for live imaging, digital teaching demonstrations, and photomicrography.
2. Robust Aluminum Alloy Body
- Compact, lightweight, and machined metal housing (60–68 mm) ensures durability and heat stability.
- Designed for long-term use in laboratory environments with consistent optical alignment and performance.
3. Universal Compatibility
- Standard C-Mount interface connects directly to microscope trinocular ports or eyepiece adapters.
- Compatible with Windows XP/Vista/7/8/10 (32/64-bit), Linux, and Mac systems.
- Operates seamlessly via USB 2.0 or 3.0 interface, powered directly from the computer’s USB port.
4. Advanced MagVision Software
- Supplied with MagVision software for image capture, processing, annotation, and measurement.
- Supports multiple image formats: JPEG, TIFF, BMP, and PNG.
- Enables real-time live viewing, exposure control, and time-lapse recording.
5. Fast Frame Rate and High Sensitivity
- Designed for smooth live imaging with high frame rates even at full resolution.
- Integrated IR filter (380–650 nm) ensures true-color reproduction and prevents IR interference.
- Adjustable exposure times (0.24 – 2000 ms) for optimal control in various lighting conditions.
6. Flexible Power and Connectivity
- Powered via 5V DC through USB, eliminating the need for external adapters.
- Compatible with desktops and laptops using USB 2.0/3.0 ports.
- Operating temperature range: 10°C – 50°C.
Technical Specifications
| Model | Resolution (MP) | Sensor Type | Sensor Size | Pixel Size (µm) | Image Resolution (pixels) | Frame Rate (fps) | Dynamic Range (dB) | S/N Ratio (dB) | Binning | Exposure Time | Spectral Range (nm) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MagCam MU 2.3 | 2.3 | CMOS | 1/1.9″ | 3.75 × 3.75 | 1920 × 1200 | 38 @1920×1200 66 @960×600 | — | — | 1×1, 2×2 | 0.244–2000 ms | 380–650 (IR filter) | 68×68×46 |
| MagCam DC-3 | 3.1 | CMOS | 1/2″ | 3.2 × 3.2 | 2048 × 1536 | 8 @2048×1536 22 @1024×768 43 @680×510 | 61 | 43 | 2×2, 3×3 | 0.24–2000 ms | 380–650 (IR filter) | 60×60×40 |
| MagCam DC-5 | 5.1 | CMOS | 1/2.5″ | 2.2 × 2.2 | 2592 × 1944 | 5 @2592×1944 18 @1280×960 60 @640×480 | 66.5 | 40.5 | 2×2, 4×4 | 0.29–2000 ms | 380–650 (IR filter) | 60×60×40 |
| MagCam DC-10 | 10 | CMOS | 1/2.3″ | 1.67 × 1.67 | 3584 × 2748 | 1.9 @3584×2748 8 @1792×1374 27 @896×684 | 65.2 | 34.0 | 2×2, 4×4 | 0.4–2000 ms | 380–650 (IR filter) | 60×60×40 |
| MagCam DC-14 | 14 | CMOS | 1/2.3″ | 1.4 × 1.4 | 4096 × 3288 | 1.8 @4096×3288 10 @2048×1644 27 @1024×822 | 65.3 | 35.5 | 2×2, 4×4 | 0.4–2000 ms | 380–650 (IR filter) | 60×60×40 |
System Requirements
| Parameter | Specification |
|---|---|
| Operating System | Windows XP / Vista / 7 / 8 / 10 (32 & 64-bit), Linux, Mac |
| Software | MagVision (included) |
| Image Format | JPEG / TIFF / BMP / PNG |
| Interface | USB 2.0 or USB 3.0 |
| Power Supply | 5V DC via USB port |
| CPU | Intel Core 2 / i3 / i5 / i7 (≥2.8 GHz) |
| Memory (RAM) | ≥ 2 GB |
| Operating Temperature | 10°C – 50°C |
| Mount Type | Standard C-Mount / Eyepiece Adapter |
Applications
- Educational Microscopy: Digital image capture and display for classroom teaching.
- Clinical Pathology: High-resolution imaging of blood smears, tissue sections, and cytological slides.
- Research Laboratories: Photomicrography and time-lapse imaging in biology and materials science.
- Pharmaceutical QC: Visual documentation and data archiving.
- Forensic and Industrial Microscopy: Inspection and measurement of fine samples or structures.
Unique Advantages
- Multiple resolution options (2.3–14 MP) to fit educational, clinical, or research needs.
- Plug-and-play USB connectivity — no external power required.
- Cross-platform compatibility with Windows, Mac, and Linux.
- High dynamic range and low noise CMOS performance for vivid color imaging.
- MagVision software suite with real-time processing and measurement tools.
- Rugged metal alloy housing ensures long-term reliability and stability.
The Magnus MagCam Digital Camera Series offers versatile, high-definition imaging for any laboratory microscope setup.
With options from 2.3 MP to 14 MP, robust CMOS sensor technology, and cross-platform MagVision software, MagCam cameras provide a reliable, user-friendly solution for educational, clinical, and research imaging applications — delivering professional results at an exceptional value.
- Pixels: CMOS 2.3 megapixel CMOS 3.1 megapixel CMOS 5.1 megapixel CMOS 10 megapixel CMOS 14 megapixel
