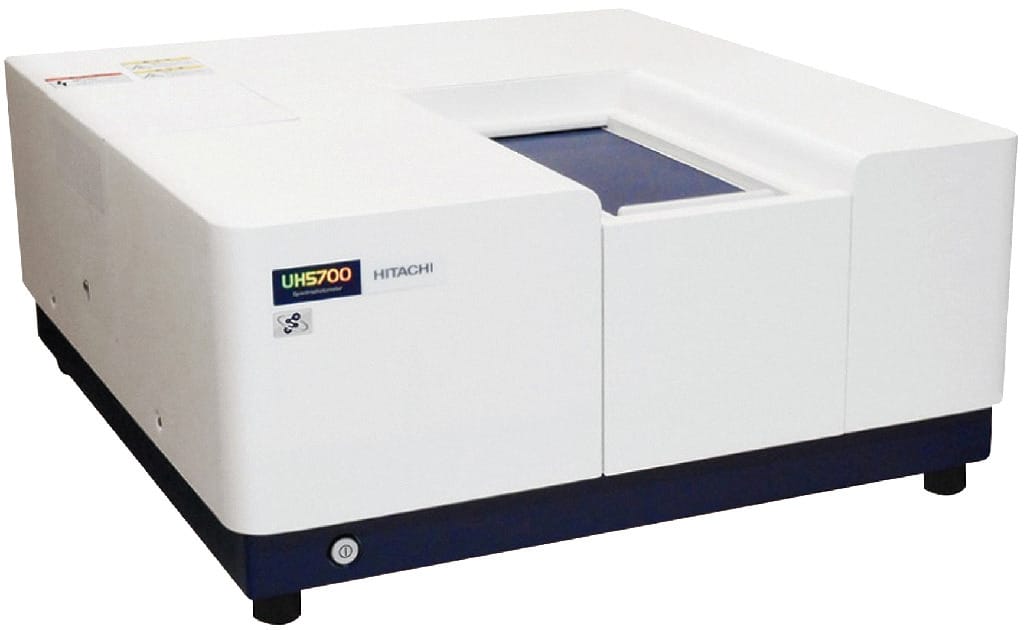

Hitachi UH5700 UV-Visible/NIR Spectrophotometer
Catalog No :
CAS Number :
Brand :
In Stock
Wavelength Range: 190 – 3300 nm
Specifications:
| Application | Spectrophotometry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Spectrophotometers | ||
| Product Brand | HITACHI | ||
| Product Grade | Analytical grade | ||
The Hitachi UH5700 UV-Vis-NIR Spectrophotometer is a high-precision benchtop analytical instrument designed for advanced spectral analysis across the ultraviolet, visible, and near-infrared regions (190–3300 nm). Engineered with Hitachi’s advanced optical technology, the UH5700 provides exceptional measurement accuracy, low stray light, and a wide photometric range, making it ideal for demanding research, industrial analysis, and quality control applications.
The instrument utilizes a Czerny-Turner mounted single monochromator with an advanced grating system, delivering highly stable spectral performance across an extended wavelength range. A double-beam optical design ensures improved measurement stability and reproducibility, while the system’s continuously variable slit automatically adjusts to optimize signal detection. This dynamic slit mechanism widens when measuring low light intensity and narrows for stronger signals, enabling precise, low-noise measurements over a broad spectral range.
The UH5700 supports high-speed spectral scanning and accommodates a wide variety of sample types through its versatile accessory options. The spacious sample compartment allows measurements of both liquid and solid samples, including optical materials, coatings, and thin films. Accessories such as integrating spheres, reflectance measurement modules, and specialized sample holders further extend the instrument’s capabilities for advanced materials characterization.
Instrument control and data processing are managed through UV Solutions Plus software, which provides powerful analysis tools, enhanced data visualization, report generation, and performance verification functions. The software also supports tabular data display and flexible report formatting, allowing laboratories to efficiently analyze and document measurement results.
Key Features
- Wide wavelength range covering 190–3300 nm (UV-Vis-NIR)
- Czerny-Turner monochromator optical system with high-performance grating
- Double-beam optical design for improved stability and accuracy
- Continuously variable slit for optimized signal detection and low-noise measurements
- High-speed spectral scanning capability
- Low stray light and wide photometric range for high measurement precision
- Advanced UV Solutions Plus software for instrument control and data processing
- Flexible configuration with multiple accessories for liquid and solid sample measurements
- Large sample compartment for accommodating various sample holders and accessories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UH5700 |
| Instrument Type | UV-Visible/NIR Spectrophotometer |
| Wavelength Range | 190 – 3300 nm |
| Optical Design | Czerny-Turner monochromator, double beam |
| Light Source | Deuterium lamp (UV); Tungsten-iodine lamp (Vis/NIR) |
| Detector | Photomultiplier (UV-Vis); Cooled PbS detector (NIR) |
| Spectral Bandwidth | 0.1–10 nm (UV-Vis); 1–35 nm (NIR) |
| Photometric Range | −5 to +5 Abs (UV-Vis); −4 to +4 Abs (NIR) |
| Wavelength Accuracy | ±0.1 nm (656.1 nm); ±1.5 nm (1312.2 nm) |
| Wavelength Repeatability | ±0.05 nm (UV); ±0.2 nm (NIR) |
| Scanning Speed | 0.3 – 5000 nm/min |
| Stray Light | ≤0.005% (220 nm NaI) |
| Sample Compartment | 120 × 300 × 140 mm |
| Dimensions (W × D × H) | 630 × 695 × 294 mm |
| Weight | 46 kg |
| Power Supply | 100–240 V, 50/60 Hz |
Accessories and Measurement Options
The UH5700 supports a wide range of accessories for specialized measurements, including:
Liquid sample analysis
- Micro cell holder for small sample volumes
- Ultra-micro volume sample holder for trace sample measurements
- Autosipper and autosampler systems for automated multi-sample analysis
Solid sample analysis
- Integrating sphere for reflectance and turbid sample measurements
- Specular reflectance accessory for optical coating and film thickness analysis
- Glass filter holders and film holders for solid plate and thin-film samples
These accessory options allow the UH5700 to adapt to diverse measurement requirements across research and industrial laboratories.
The Hitachi UH5700 UV-Vis-NIR Spectrophotometer combines advanced optical engineering, high measurement precision, and flexible accessory options to deliver a powerful platform for modern spectroscopic analysis. Its extended wavelength range, low-noise detection system, and versatile configuration capabilities make it particularly suitable for laboratories performing advanced materials characterization, optical analysis, environmental testing, and pharmaceutical research. With reliable performance and comprehensive data analysis capabilities, the UH5700 provides researchers and quality control laboratories with a dependable solution for complex UV-Vis-NIR spectroscopy applications.
