Specifications:
| Application | Spectrophotometry | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Spectrophotometers | ||
| Product Brand | VWR | ||
| Product Grade | Analytical grade | ||

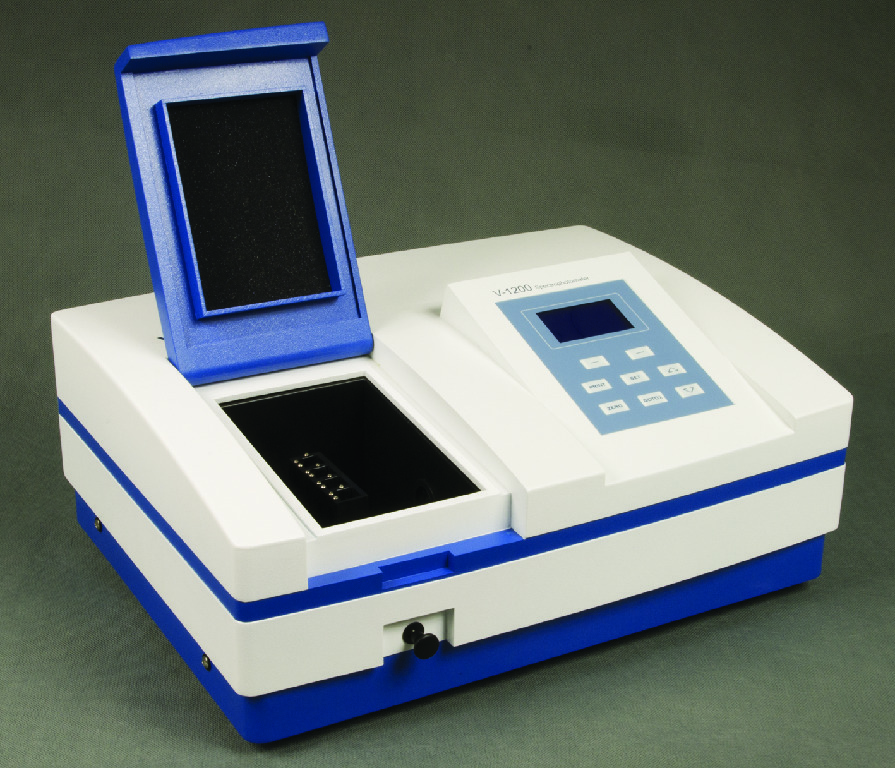

The VWR® V-1200 Visible Spectrophotometer is a reliable single-beam instrument designed for routine analytical measurements in quality control laboratories, teaching environments, and industrial process monitoring. Covering a wavelength range of 325–1000 nm, the instrument provides accurate absorbance and transmittance measurements for a wide range of visible spectrophotometry applications.
Engineered for ease of use and dependable daily operation, the V-1200 features a large 128 × 64 LCD display that clearly presents measurement results, operational prompts, and instrument settings. The system supports absorbance (A) and transmittance (%T) measurement modes, allowing laboratories to perform concentration analysis and routine spectrophotometric assays efficiently.
The instrument incorporates a tungsten lamp light source and grating monochromator optical system, ensuring stable performance and consistent measurement accuracy. The 1200 lines/mm silicon photodiode detector provides reliable signal detection across the visible spectrum.
For data management, the spectrophotometer can store up to 200 results and 200 standard curves, which can be transferred to a computer via the USB interface using the supplied software. This feature enables convenient data archiving and analysis for laboratory documentation and quality assurance.
The V-1200 is ideal for laboratories requiring a robust and easy-to-operate visible spectrophotometer for routine testing, educational demonstrations, and industrial process control.
Key Features
- Visible wavelength range: 325–1000 nm
- Single-beam visible spectrophotometer for routine analysis
- Large 128 × 64 LCD display for clear measurement readout
- Stores up to 200 results and 200 standard curves
- USB interface for PC data transfer
- Stable tungsten lamp light source
- Grating monochromator optical system for precise wavelength selection
- Multi-language interface: English, German, Spanish, French
- Ideal for quality control, teaching laboratories, and process monitoring
Applications
- Routine laboratory analysis
- Quality control testing
- Educational and teaching laboratories
- Industrial process monitoring
- Environmental and water analysis
- Chemical and biochemical analysis
- Concentration determination in visible spectrophotometry assays
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | V-1200 |
| Instrument Type | Visible Spectrophotometer |
| Wavelength Range | 325 – 1000 nm |
| Spectral Bandwidth | — |
| Light Source | Tungsten Lamp |
| Detector | 1200 lines/mm Silicon Photodiode |
| Optical System | Grating Monochromator |
| Absorbance Range | −0.3 to +3.0 A |
| Photometric Range | 0 – 200 %T |
| Photometric Accuracy | ±0.5 %T |
| Absorbance Accuracy | ±0.002 A/h @ 500 nm |
| Wavelength Accuracy | ±2 nm |
| Wavelength Repeatability | ≤0.8 nm |
| Stray Light | ≤0.3 %T |
| Data Storage | 200 results, 200 standard curves |
| Output | USB |
| Display | LCD (128 × 64 pixels) |
| Electrical Requirements | 220 V, 50 Hz |
| Dimensions (W × D × H) | 490 × 360 × 210 mm |
| Weight | 12 kg |
Included Accessories
- Four optical glass cells
- Four-position cell changer
- USB connection for PC data transfer
- Power cable with UK and EU plugs
- Dust cover
The VWR® V-1200 Visible Spectrophotometer provides dependable performance, straightforward operation, and robust data management features, making it an excellent solution for laboratories requiring accurate visible spectrophotometric measurements in routine analysis, education, and industrial quality control.
