Specifications:
| Application | Phlebetomy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Medical Device | ||
| Product Grade | Medical grade | ||

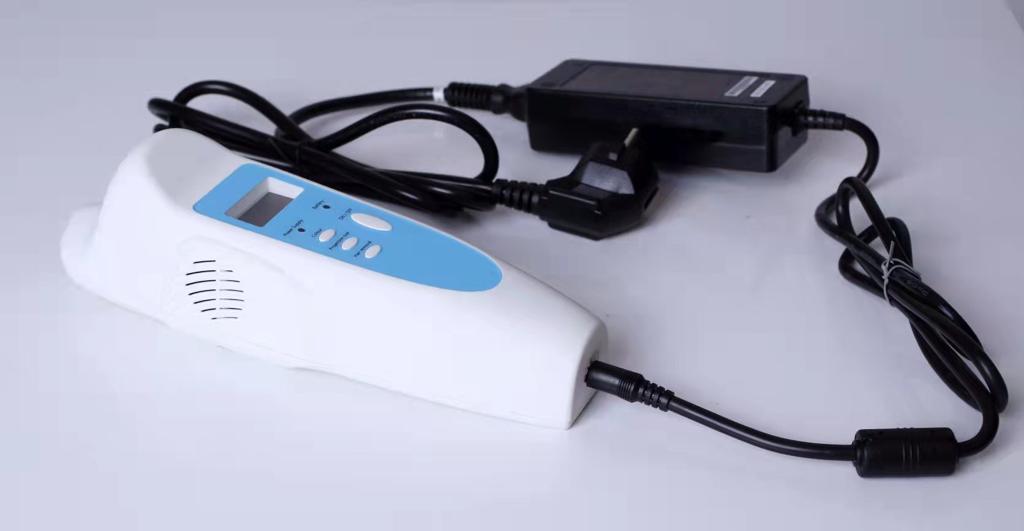

The V-SHOW Series Vein Visualization System (Models 8/9/10) is a next-generation handheld vein finder designed to enhance first-stick success rates and patient satisfaction in venipuncture procedures. Utilizing near-infrared (NIR) light and advanced vascular recognition algorithms, this device provides real-time, high-resolution visualization of peripheral veins, including bifurcations and venous valves, in a 3D full-color display.
Ideal for a wide range of clinical settings—from pediatrics and oncology to emergency rooms and blood collection centers—the V-SHOW system significantly reduces missed sticks and enhances procedural confidence, especially in patients with difficult vascular access.
Key Features
- Real-time Vein Visualization: Clinicians can see peripheral veins, bifurcations, and valves clearly
- 3D Full-Color Display: Offers vein depth perception with advanced HD microvascular imaging
- Customizable Display: Adjustable color, brightness, and size (4 × 4 × 3 mode)
- Compact and Lightweight: Weighs only 450g for true handheld operation
- Increased First-Attempt Success: Boosts first-stick success rate and patient satisfaction by up to 100%
- Multiple Panel Colors: Three color options; further customization available
- Flexible Viewing: All-angle usability with 4 degrees of movement freedom
Technology Parameters
| Parameter | Specification |
|---|---|
| Display System | Projection + OLED |
| Light Source | Near Infrared (NIR) |
| Peak Wavelength | 940 ± 15 nm |
| Radiation | None |
| Projection Accuracy | ≤ 0.3 mm |
| Image Resolution | 640 × 480 pixels |
| Projection Brightness | 5–10 lumens |
| Optimal Projection Distance | 23 ± 3 cm |
| Vein Depth Visualization | Yes (via 3D color display) |
| Power Supply | AC + Rechargeable Li-ion Battery |
| Battery Operating Time | Approx. 3.5 hours |
| Battery Charging Time | Approx. 3 hours |
| Handheld Operation | Yes |
| Angle Adjustment | 4 degrees of freedom |
| Device Dimensions (L×W×H) | 23.5 × 6.6 × 7 cm |
Applications
- Intravenous (IV) insertion and catheter placement
- Phlebotomy and blood sampling
- Pediatric and neonatal vein access
- Oncology infusion support
- Emergency and critical care procedures
- Vein access for obese or difficult-to-stick patients
The V-SHOW8/9/10 Vein Visualization System empowers clinicians with clear, real-time imaging to simplify vascular access and reduce complications associated with missed sticks. With its compact design, ergonomic features, and customizable display options, it is an indispensable tool for improving patient comfort, procedural efficiency, and clinical outcomes.
