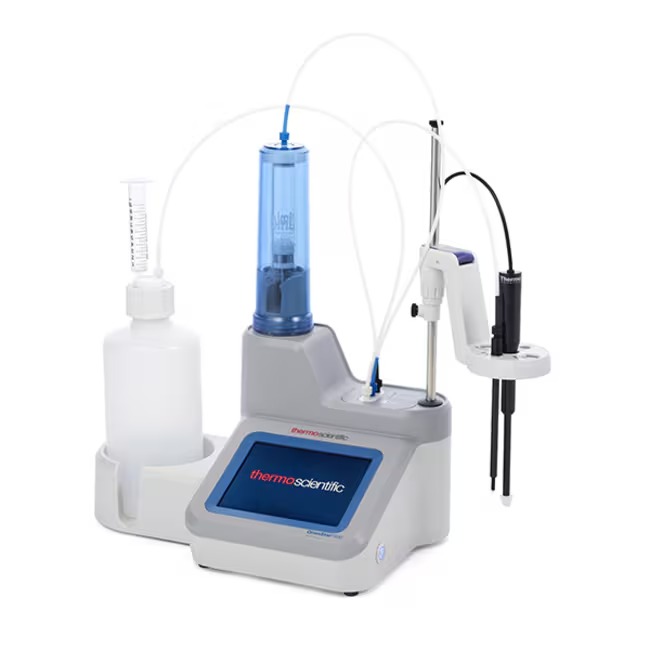

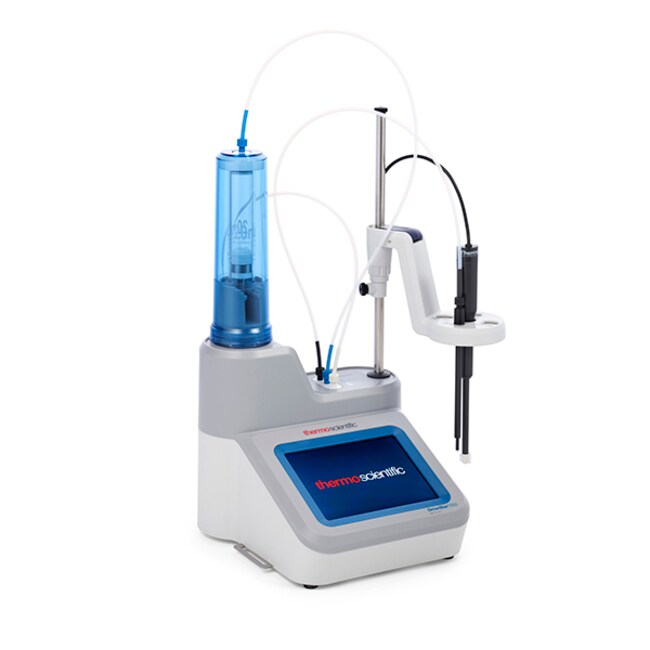

The Thermo Scientific™ Orion Star™ T930 Ion Titrator is an advanced, dedicated ion titration system designed for accurate and automated determination of ionic concentrations in environmental, food, chemical, and industrial samples. The system automates titration workflows to deliver highly reproducible results with minimal operator intervention, improving laboratory efficiency and throughput.

The Orion Star T930 is ideal for applications such as salt analysis in food products, chloride determination in drinking water and wastewater, ammonia and Total Kjeldahl Nitrogen (TKN) testing, surfactant analysis in consumer products, and total hardness measurement in water. With its intuitive touchscreen interface, programmable methods, and automated titration modes, the instrument simplifies complex analytical procedures and ensures consistent results.

A 5.7-inch color capacitive touchscreen provides step-by-step guidance through setup, live titration analysis, and data management. The instrument allows users to create and store up to 10 custom methods and save up to 100 titration datasets with date and time stamps, ensuring traceable analytical documentation.

The Orion Star T930 supports several titration techniques including equivalence point titrations, preset mV endpoint titrations, and Multiple Known Addition (MKA) mode. The MKA technique enables automated calibration and concentration calculation by adding aliquots of standard directly to the sample, reducing matrix effects and eliminating the need for separate calibration steps.

Key Features

Automated Ion Titration

• Automated titration workflow for consistent results
• Suitable for ion-specific titrations in environmental and food analysis
• Supports unattended titration runs to increase laboratory productivity

Large Touchscreen Interface

• 5.7-inch color capacitive touchscreen (640 × 480 resolution)
• Clear display of titration curves, results, and instructions
• Onscreen help menus and guided operation

Flexible Titration Techniques

• Equivalence point titration (1 or 2 equivalence points)
• Preset endpoint titration (1–3 endpoints)
• Multiple Known Addition (MKA) automated calibration

Programmable Methods

• Save up to 10 user-defined titration methods
• Optional password protection for method security
• Import and export methods via USB flash drive

Integrated Data Management

• Save 100 titration data sets with date/time stamps
• View results in summary tables and detailed data logs
• Export data to USB drive, computer, or printer

Preloaded Application Database

• Access validated analytical methods via USB
• Simplifies method setup for common laboratory analyses

Applications

The Orion Star T930 Ion Titrator is widely used for:

Food Industry

• Salt determination in food products
• Quality control of processed foods

Environmental Testing

• Chloride analysis in drinking water
• Chloride monitoring in wastewater
• Water hardness determination

Wastewater Analysis

• Ammonia determination
• Total Kjeldahl Nitrogen (TKN) analysis

Consumer Product Testing

• Surfactant concentration measurement

Research and Academic Laboratories

• Ion concentration analysis
• Environmental and chemical research

Included Components

START9300 – Standard System

Includes:

• Orion Star T930 Ion Titrator
• 20 mL burette
• Stirrer probe
• Dispenser probe
• Standard tubing kit
• 1 L plastic bottle
• GL 38 bottle cap with drying tube
• Computer cable
• USB drive with documentation
• Universal power supply (110–240 V)

START9301 – Chloride/Salt Kit

Includes all components above plus:

• Silver billet electrode
• Electrode cable

Designed for chloride and salt analysis in food and water samples.

Technical Specifications

Certifications

The Orion Star T930 meets major international safety and compliance standards:

• TÜV 3-in-1 Certification
• FCC Compliance
• EN/IEC 61326-1
• IEC 61010

These certifications ensure safe operation in laboratory environments.

Design Advantages

• Automated titration workflow for reproducible results
• Reduced operator errors and manual calculations
• Improved laboratory efficiency and throughput
• Easy replacement of parts to minimize downtime
• Long-lasting electrodes for reduced operational cost

The Thermo Scientific™ Orion Star™ T930 Ion Titrator is a versatile and user-friendly instrument designed for accurate ion concentration analysis in environmental, food, chemical, and research laboratories. Its advanced touchscreen interface, automated titration capabilities, and flexible titration techniques provide reliable and reproducible analytical results while simplifying laboratory workflows. With built-in data management, customizable methods, and validated application protocols, the T930 is an ideal solution for laboratories performing salt, chloride, ammonia, TKN, surfactant, and water hardness analysis.
