Specifications:
| Application | Water Quality Analysis | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Photometer | ||
| Product Brand | HANNA Instruments | ||
| Product Grade | Analytical grade | ||

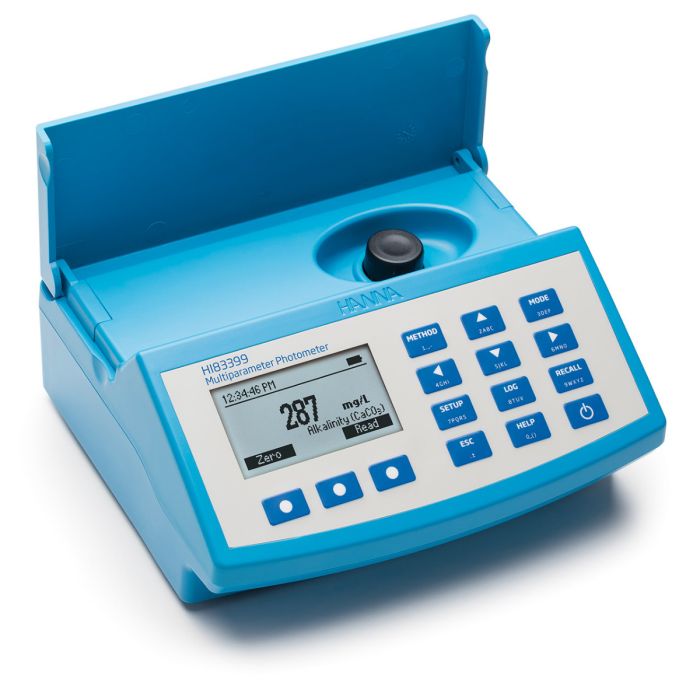

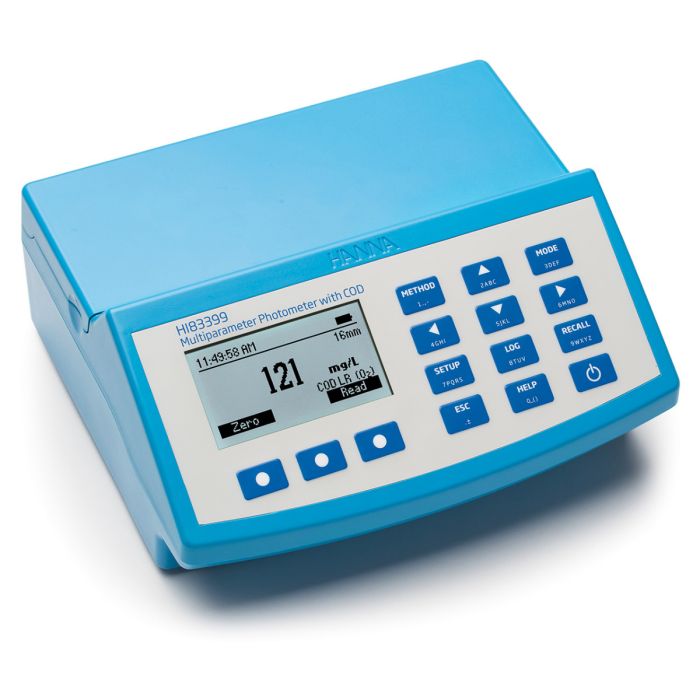

The HANNA® HI83399 Multiparameter Photometer and pH Meter is an advanced benchtop instrument designed for comprehensive analysis of water and wastewater quality. Combining a high-performance photometer with a professional digital pH meter in a single compact unit, the HI83399 provides laboratories, water treatment facilities, and environmental monitoring professionals with a versatile and space-efficient solution for routine and regulatory testing.
The instrument features an innovative optical system incorporating high-efficiency LEDs, narrow band interference filters, a focusing lens, and a reference detector to ensure exceptional accuracy and stability. With 40 key water and wastewater parameters and 73 programmed methods, including critical digestion parameters such as Chemical Oxygen Demand (COD), Total Nitrogen, and Total Phosphorus, the HI83399 enables reliable monitoring of treatment efficiency and environmental compliance.
In addition to photometric analysis, the integrated digital pH electrode input allows precise pH and temperature measurement using advanced probes with automatic temperature compensation and calibration data storage.
Key Capabilities
- Multiparameter photometric analysis of water and wastewater samples
- Integrated professional digital pH and temperature measurement
- Measurement of critical wastewater parameters including COD, nitrogen, and phosphorus
- Absorbance mode for custom chemical analysis and method development
- Advanced optical system for stable and accurate measurements
- Built-in data logging with sample and user identification
- USB connectivity for data transfer and power supply
- Rechargeable battery and benchtop operation
Advanced Optical System
The HI83399 incorporates a precision optical system designed for superior measurement reliability:
- High-efficiency LED light sources
- Narrow band interference filters for accurate wavelength selection
- Silicon photodetector for precise absorbance measurement
- Reference detector to compensate for light source drift
- Focusing lens to maximize signal strength and measurement accuracy
This advanced design minimizes measurement errors caused by optical instability, ambient conditions, or cuvette imperfections.
Measurement Parameters
The HI83399 supports measurement of numerous water quality parameters, including:
- Chemical Oxygen Demand (COD)
- Total Nitrogen and Total Phosphorus
- Ammonia, Nitrate, and Nitrite
- Free and Total Chlorine
- Iron, Copper, Zinc, and other metals
- Fluoride, Bromine, and Chlorine Dioxide
- Hardness, Alkalinity, and Calcium
- Phosphate and Silica
- Dissolved Oxygen
- Absorbance measurements
- pH and temperature
These capabilities make the HI83399 suitable for a wide range of analytical applications.
Digital pH Measurement System
The integrated digital pH input enables accurate and reliable pH analysis with features including:
- Automatic temperature compensation
- Automatic calibration with multiple buffer options
- Calibration data storage in probe memory
- Electrode diagnostics and calibration verification
- High accuracy and stability
This eliminates the need for a separate pH meter, improving workflow efficiency and saving laboratory space.
Data Logging and Connectivity
The HI83399 provides comprehensive data management capabilities:
- Storage of up to 1000 measurement readings
- Sample and user identification tagging
- USB flash drive and PC connectivity
- Data export in CSV format for analysis and reporting
These features ensure full traceability and compliance with laboratory quality requirements.
Applications
The HI83399 is ideal for:
- Wastewater treatment plant monitoring
- Environmental water quality analysis
- Drinking water testing laboratories
- Industrial wastewater monitoring
- Municipal water treatment facilities
- Environmental research laboratories
- Academic and research institutions
- Regulatory compliance testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | HI83399 Multiparameter Photometer and pH Meter |
| Brand | HANNA Instruments |
| Measurement Parameters | 40 parameters, 73 methods |
| Photometer Light Source | LED with interference filters |
| Wavelengths | 420, 466, 525, 575, 610 nm |
| Absorbance Range | 0.000 to 4.000 Abs |
| pH Range | -2.00 to 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| Data Logging Capacity | 1000 readings |
| Connectivity | USB-A, Micro USB |
| Power Supply | Rechargeable Li-polymer battery or USB power |
| Display | 128 × 64 pixel backlit LCD |
| Dimensions | 206 × 177 × 97 mm |
| Weight | 1.0 kg |
The HANNA HI83399 Multiparameter Photometer and pH Meter is a powerful, versatile, and highly accurate instrument for water and wastewater analysis. Its ability to measure a wide range of parameters—including COD, nutrients, metals, and pH—in a single compact unit makes it an essential solution for laboratories, environmental monitoring agencies, and water treatment facilities requiring reliable and efficient water quality testing.
