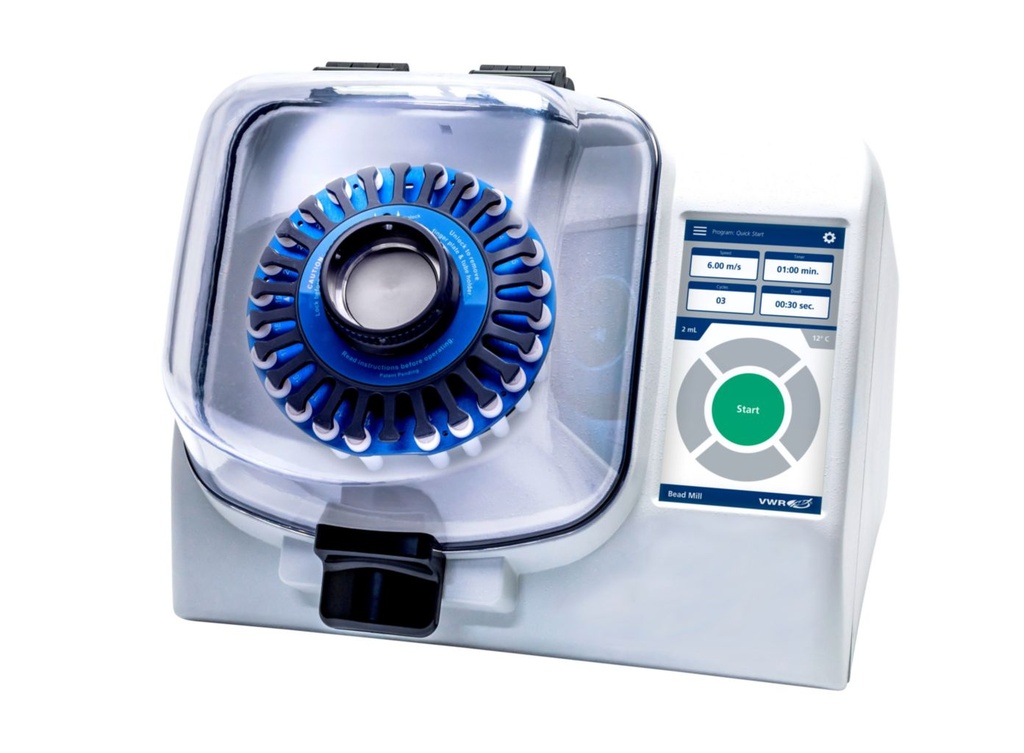

VWR® Homogeniser Bead Mill MAX, 230V
Catalog No :
CAS Number :
Brand :
In Stock
Sample volume: 0.5 - 50 mL
Capacity Max. 24 tubes: (24×0.5 ml / 24×1.5 ml / 24×2 ml / 12×7 ml / 6×30 ml / 3×15 ml / 3×50 ml)
Specifications:
| Application | Genomic Purification | Warranty | 1 Year |
| Max Speed | 0.8 - 6.5 m/s | ||
| Storage Temperature | Room Temperature | ||
| Product Type | Molecular Biology Equipment | ||
| Product Brand | VWR | ||
| Product Grade | Molecular Biology | ||
High-Throughput Homogenisation for DNA, RNA, Protein, and Small Molecule Extraction
The VWR® Bead Mill MAX is the flagship model in VWR’s homogeniser lineup, engineered for powerful, reproducible sample disruption of the most challenging biological and chemical materials. Its patented tube carriage motion reduces swirling and maximizes bead impact force—delivering superior homogenisation efficiency over traditional bead mills.
This advanced homogeniser is ideal for labs requiring high-throughput processing, capable of handling up to 24 samples per run, with no cooldown time needed between cycles.
Key Features
- Unmatched Impact Force: Optimized tube carriage ensures maximum bead-to-sample contact
- Rapid Processing: Typically completes homogenisation in under 30 seconds
- Touchscreen Interface: User-friendly, multi-lingual display with unlimited programmable memory
- No Cooldown Required: Continuous use with no thermal reset periods—ideal for high-volume workflows
- Front-Loading Design: Secure lid-lock mechanism enhances safety and convenience
- Optional Cryo Cooling Unit: Maintains sample integrity during processing using compressed air, liquid nitrogen, or dry ice in ethanol (sold separately)
Applications
- Nucleic acid extraction (DNA, RNA)
- Protein extraction from tissues and cells
- Small molecule compound recovery
- Microbiological and clinical sample lysis
- Tissue homogenisation for research and diagnostics
Technical Specifications
| Specification | Detail |
|---|---|
| Model | VWR® Bead Mill MAX |
| Catalog Number | 432-0453 |
| Speed Range | 0.8 – 6.5 m/s |
| Cycle Range | 1 – 10 cycles |
| Sample Volume | 0.5 – 50 ml |
| Maximum Capacity | 24×0.5 ml / 24×1.5 ml / 24×2 ml / 12×7 ml / 6×30 ml / 3×15 ml / 3×50 ml |
| Dimensions (W×D×H) | 305 × 432 × 368 mm |
| Weight | 29.5 kg |
| Power Supply | 230 V |
| Interface | Multi-language touchscreen |
| Included with Unit | Drive unit, 2 ml tube carriage, user manual, 2-year warranty |
| Optional Accessories | Cryo cooling unit, disposable bead tubes (e.g., 432-0371, 432-0372) |
Delivery Information
- The homogeniser is supplied with a 2 ml tube carriage, user manual, and a 2-year warranty.
-
Bead tubes are not included and must be ordered separately:
- 432-0371: 2 ml tough microorganism lysing mix
- 432-0372: 2 ml soft tissue homogenising mix
The VWR® Bead Mill MAX delivers industry-leading homogenisation performance, flexibility, and ease of use. Whether processing tough microbial samples or soft tissue, this system ensures high-quality results, consistency across replicates, and scalability for demanding workflows—making it an essential tool for molecular biology, biochemistry, and clinical laboratories.
