Trusted High-Range Turbidity Measurement. Simplified.

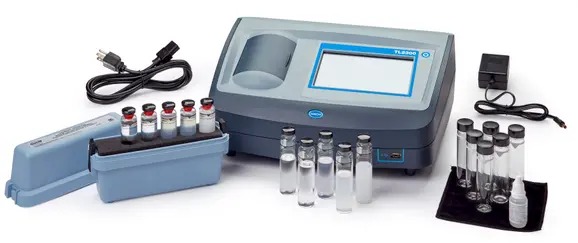

The Hach® TL2300 EPA Laboratory Turbidimeter is engineered for precision, reliability, and ease of use in high-range turbidity applications. Built on Hach’s proven optical technology, this advanced benchtop instrument delivers dependable nephelometric measurements in accordance with EPA Method 180.1, making it ideal for regulatory compliance in water and wastewater laboratories.
Designed with operators in mind, the TL2300 features a vibrant 17.8 mm full-colour touchscreen, an intuitive interface, and guided workflows that simplify calibration, data logging, and result interpretation. Whether you're testing drinking water, surface water, or effluent, the TL2300 ensures accurate results even under variable environmental conditions.
Key Features:
-
EPA Compliant Performance
Fully meets U.S. EPA Method 180.1 for turbidity measurement, ensuring accurate and regulatory-accepted results. -
Smart Stabilization Technology
Automatically captures readings only when sample stability is achieved, eliminating subjectivity and reducing operator error. -
User-Friendly Touchscreen Interface
A large, full-colour touch display enhances usability with guided instructions, real-time visual cues, and accessible settings. -
Comprehensive Data Logging
Stores up to 2,000 logs, including readings, verifications, and calibrations, supporting full traceability and GLP compliance. -
Flexible USB Connectivity
Equipped with dual USB-A ports for seamless data export, printer connectivity, barcode scanning, and keyboard input. -
Enhanced Accuracy Across Wide Ranges
Capable of measuring 0 to 4000 NTU, with options for Ratio On/Off modes and EBC unit support.
Applications:
- Groundwater Monitoring
- Municipal Water Treatment
- Membrane Protection Systems
- QA/QC Laboratory Analysis
- Surface Water and Environmental Surveillance
Technical Specifications:
| Attribute | Specification |
|---|---|
| Measurement Method | Nephelometric |
| Measuring Range | 0 – 4000 NTU (Ratio On), 0 – 40 NTU (Ratio Off); EBC: 0 – 980 (Ratio On) |
| Accuracy | ±2% of reading + 0.01 NTU (0–1000 NTU); ±5% of reading (1000–4000 NTU) |
| Repeatability | ±1% of reading or 0.01 NTU (whichever is greater) |
| Stabilization Time | 30 min (Ratio On), 60 min (Ratio Off) after startup |
| Sample Volume | Minimum 20 mL in 25 mm sample cell |
| Sample Cell Compatibility | 95 x 25 mm round borosilicate glass with rubber-lined screw caps |
| Display | 17.8 mm full-colour touchscreen |
| Data Logging | 2000 total logs (readings, verifications, calibrations) |
| Light Source | Tungsten filament lamp |
| Power Requirements | 100 – 240 V AC, 50/60 Hz, 3.4 A |
| Interfaces | 2 x USB-A ports |
| Operating Temp Range | 0 – 40 °C |
| Storage Conditions | -20 to 60 °C, max. 80% RH (non-condensing) |
| Certifications | CE, KC, RCM |
| Compliance | EPA Method 180.1 |
| Weight | 3.0 kg |
| Dimensions (H x W x D) | 153 mm x 395 mm x 305 mm |
What's Included:
- TL2300 Turbidimeter Instrument
- Stablcal® Calibration Kit
- Gelex Secondary Turbidity Standardization Kit
- USEPA Filter Assembly
- Six 1-inch (30 mL) Sample Cells with Caps
- Silicone Oil and Oiling Cloth
- Power Supply and Cord
- USB Ports
- Dust Cover
- Multilingual User Manual
Unique Advantages:
-
Faster Calibration & Verification
The improved interface and guided procedures reduce setup time and training needs. -
Traceability and Compliance
Built-in sample ID tracking and robust data storage help meet Good Laboratory Practice (GLP) standards. -
Field-Compatible Lab Instrument
Though designed for benchtop use, the rugged build and flexible input/output make it suitable even in semi-field conditions. -
Minimal Maintenance
Self-diagnostic tools and reliable lamp design reduce downtime and maintenance intervals.
The Hach TL2300 EPA Turbidimeter is the ideal solution for laboratories and facilities needing fast, accurate, and regulatory-compliant turbidity measurements—simplifying testing without compromising precision.
No resources are currently available for this product.
Trusted High-Range Turbidity Measurement. Simplified.
The Hach® TL2300 EPA Laboratory Turbidimeter is engineered for precision, reliability, and ease of use in high-range turbidity applications. Built on Hach’s proven optical technology, this advanced benchtop instrument delivers dependable nephelometric measurements in accordance with EPA Method 180.1, making it ideal for regulatory compliance in water and wastewater laboratories.
Designed with operators in mind, the TL2300 features a vibrant 17.8 mm full-colour touchscreen, an intuitive interface, and guided workflows that simplify calibration, data logging, and result interpretation. Whether you're testing drinking water, surface water, or effluent, the TL2300 ensures accurate results even under variable environmental conditions.
Key Features:
-
EPA Compliant Performance
Fully meets U.S. EPA Method 180.1 for turbidity measurement, ensuring accurate and regulatory-accepted results. -
Smart Stabilization Technology
Automatically captures readings only when sample stability is achieved, eliminating subjectivity and reducing operator error. -
User-Friendly Touchscreen Interface
A large, full-colour touch display enhances usability with guided instructions, real-time visual cues, and accessible settings. -
Comprehensive Data Logging
Stores up to 2,000 logs, including readings, verifications, and calibrations, supporting full traceability and GLP compliance. -
Flexible USB Connectivity
Equipped with dual USB-A ports for seamless data export, printer connectivity, barcode scanning, and keyboard input. -
Enhanced Accuracy Across Wide Ranges
Capable of measuring 0 to 4000 NTU, with options for Ratio On/Off modes and EBC unit support.
Applications:
- Groundwater Monitoring
- Municipal Water Treatment
- Membrane Protection Systems
- QA/QC Laboratory Analysis
- Surface Water and Environmental Surveillance
Technical Specifications:
| Attribute | Specification |
|---|---|
| Measurement Method | Nephelometric |
| Measuring Range | 0 – 4000 NTU (Ratio On), 0 – 40 NTU (Ratio Off); EBC: 0 – 980 (Ratio On) |
| Accuracy | ±2% of reading + 0.01 NTU (0–1000 NTU); ±5% of reading (1000–4000 NTU) |
| Repeatability | ±1% of reading or 0.01 NTU (whichever is greater) |
| Stabilization Time | 30 min (Ratio On), 60 min (Ratio Off) after startup |
| Sample Volume | Minimum 20 mL in 25 mm sample cell |
| Sample Cell Compatibility | 95 x 25 mm round borosilicate glass with rubber-lined screw caps |
| Display | 17.8 mm full-colour touchscreen |
| Data Logging | 2000 total logs (readings, verifications, calibrations) |
| Light Source | Tungsten filament lamp |
| Power Requirements | 100 – 240 V AC, 50/60 Hz, 3.4 A |
| Interfaces | 2 x USB-A ports |
| Operating Temp Range | 0 – 40 °C |
| Storage Conditions | -20 to 60 °C, max. 80% RH (non-condensing) |
| Certifications | CE, KC, RCM |
| Compliance | EPA Method 180.1 |
| Weight | 3.0 kg |
| Dimensions (H x W x D) | 153 mm x 395 mm x 305 mm |
What's Included:
- TL2300 Turbidimeter Instrument
- Stablcal® Calibration Kit
- Gelex Secondary Turbidity Standardization Kit
- USEPA Filter Assembly
- Six 1-inch (30 mL) Sample Cells with Caps
- Silicone Oil and Oiling Cloth
- Power Supply and Cord
- USB Ports
- Dust Cover
- Multilingual User Manual
Unique Advantages:
-
Faster Calibration & Verification
The improved interface and guided procedures reduce setup time and training needs. -
Traceability and Compliance
Built-in sample ID tracking and robust data storage help meet Good Laboratory Practice (GLP) standards. -
Field-Compatible Lab Instrument
Though designed for benchtop use, the rugged build and flexible input/output make it suitable even in semi-field conditions. -
Minimal Maintenance
Self-diagnostic tools and reliable lamp design reduce downtime and maintenance intervals.
The Hach TL2300 EPA Turbidimeter is the ideal solution for laboratories and facilities needing fast, accurate, and regulatory-compliant turbidity measurements—simplifying testing without compromising precision.
No resources are currently available for this product.

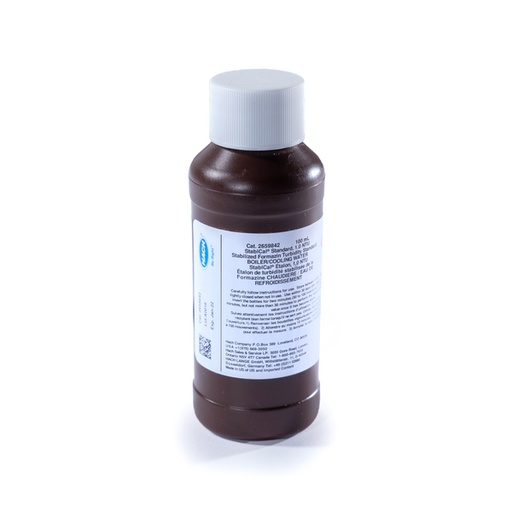

![[2659942] Hach Stablcal® Stabilised Formazine Turbidity Standard (10.0 NTU)](/web/image/product.product/21693/image_512/%5B2659942%5D%20Hach%20Stablcal%C2%AE%20Stabilised%20Formazine%20Turbidity%20Standard%20%2810.0%20NTU%29?unique=96c5da2)
