Magnus EpiLed Reflected LED Fluorescence attachment (Without Microscope)
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Fluorescence-Based Assay | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Molecular Biology | ||
High-Performance LED Fluorescence Illumination for Clinical, Research & Diagnostic Microscopy

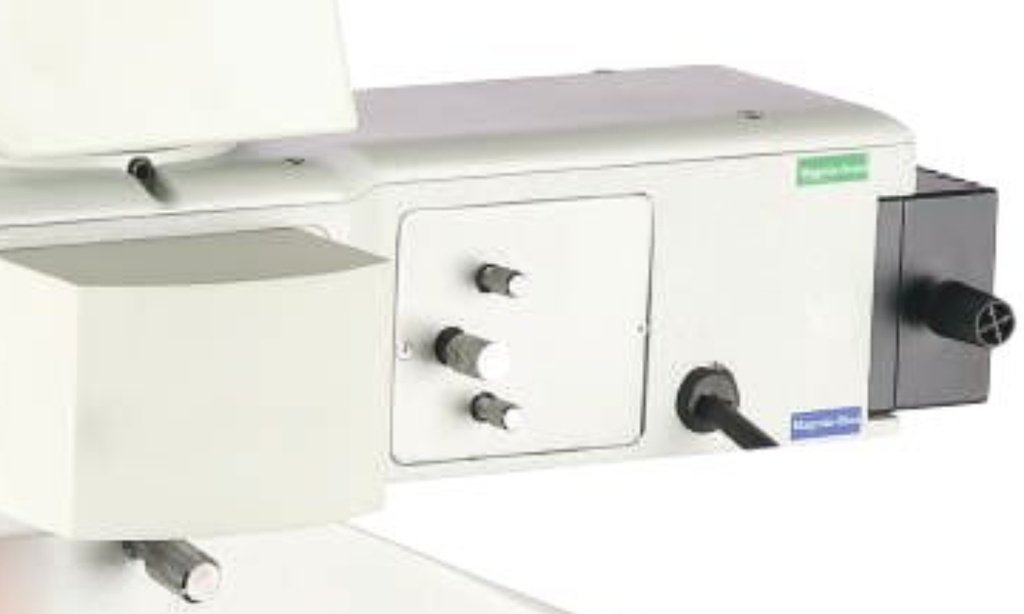

The Magnus EpiLED Fluorescence Attachment is a compact, high-efficiency reflected LED fluorescence illumination module designed for seamless integration with popular routine and research microscopes. Engineered for long life (30,000 hrs), stable illumination, low heat output, and precise excitation/emission performance, the Magnus EpiLED series provides an economical and reliable alternative to traditional mercury-vapor fluorescence systems.
Ideal for TB detection (Auramine-O), malaria screening, immunofluorescence assays, autoimmune diagnostics, and nucleic acid staining, these modules attach externally and convert standard microscopes into fully functional fluorescence systems—without requiring an internal fluorescence turret.
Key Features
- Long-life LED illumination (30,000 hrs) – zero warm-up, low power consumption, and no lamp replacements.
- High-intensity 3W LEDs with narrow excitation peaks (450 nm, 480 nm, 535 nm, UV).

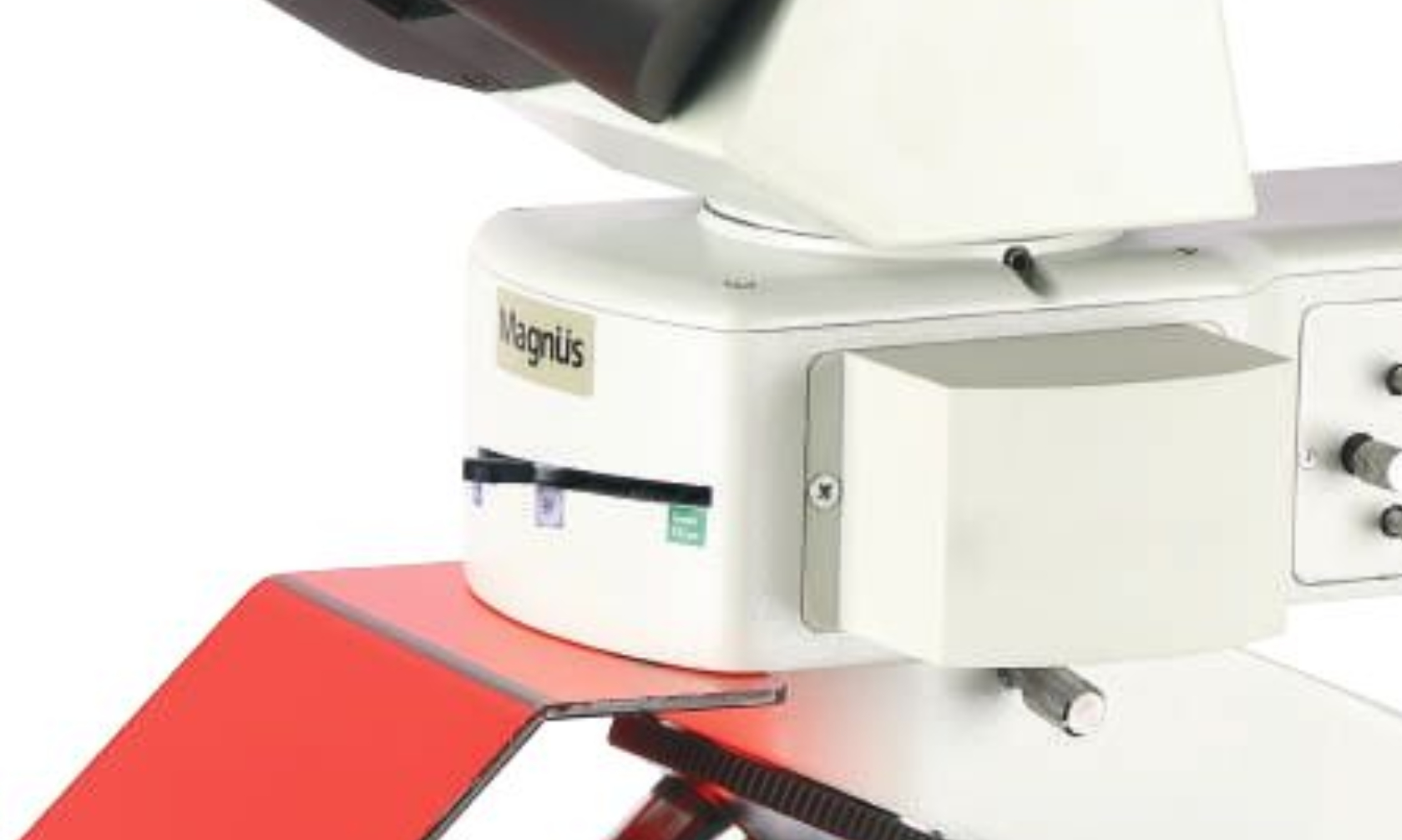

- Front sliding filter carrier (1–2 position) for quick filter switching.
- Integrated iris diaphragm for enhanced image contrast and sharpness.
- No alignment or calibration required; plug-and-play design.
- Safe, cool operation—no UV leakage, no thermal drift.
- Universal power compatibility: 100–240 V AC adaptor included.
- Compatible with major routine microscopes (Magnus, Olympus CX series).
Technical Specifications
| Parameter | Specification |
|---|---|
| LED Lifetime | 30,000 hours |
| LED Power | 3 W high-efficiency LEDs |
| Excitation Wavelengths | Royal Blue: 450 nm Blue: 480 nm Green: 535 nm UV: for DAPI/Hoechst |
| Filter Carrier | 1 or 2-position front sliding filter slider with iris diaphragm |
| Electrical Input | AC 100–240 V |
| Power Output | DC 9 V, 2 A |
| Emission Filters | Long-pass (510 nm or 575 nm depending on model) |
| Mounting | External reflected-fluorescence attachment (no internal turret needed) |
Applications
Clinical Diagnostics
- Mycobacterium tuberculosis detection (Auramine-O) — Royal Blue 450 nm excitation
- Malaria screening using Acridine Orange staining
-
Autoimmune disease immunofluorescence assays (IIF)
- ANA, ANCA, AMA, dsDNA
- FITC/Alexa Fluor 488 detection — Blue 480 nm excitation
- Rhodamine/TRITC-based fluorescence — Green 535 nm excitation
-
Nucleic acid staining
- DAPI, Hoechst (UV model)
Research & Education
- Cell imaging
- Fluorescent protein detection
- Teaching/training labs
- Microbiology and parasitology screening
Compatible Microscopes

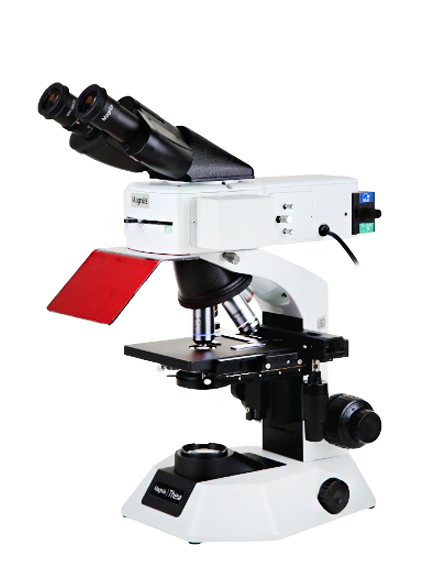

- Magnus Theia-i / MLXi-Plus

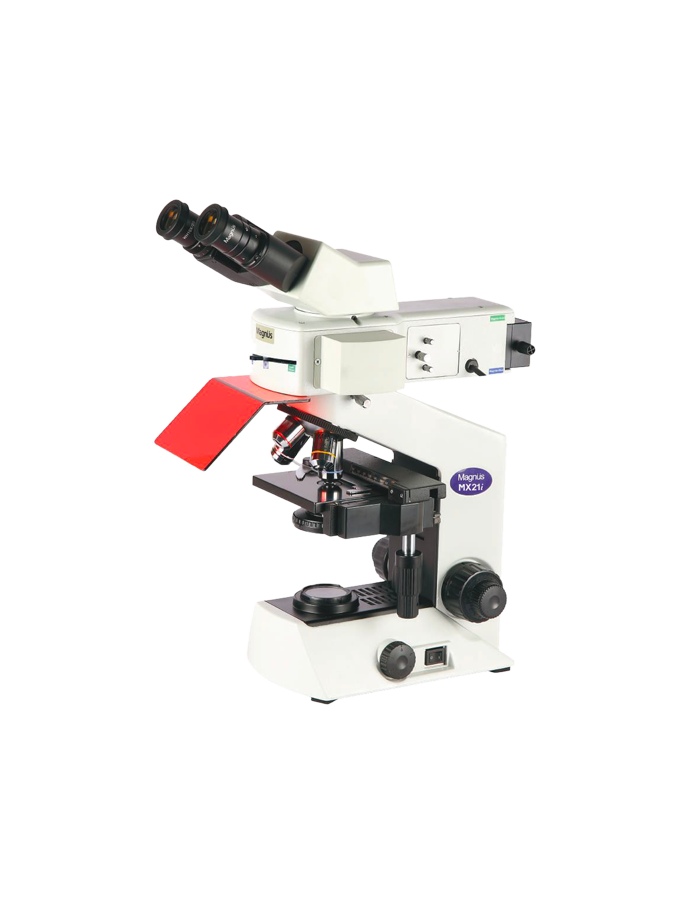

- Magnus MX21i
- Olympus CX23
- Olympus CX33
Magnus EpiLED Models & Variants — Summary Table
| Model Name | Excitation Wavelength(s) | LED Configuration | Filter Configuration | Emission Filter | Primary Applications |
|---|---|---|---|---|---|
| Epi-LED Single Filter – Royal Blue | 450 nm (Royal Blue) | Single 3W LED | 2-position filter slider | 510 nm long-pass | TB diagnostics (Auramine O) |
| Epi-LED Single Filter – Blue | 480 nm (Blue) | Single 3W LED | 2-position filter slider | 510 nm long-pass | FITC, Alexa 488, general IFA |
| Epi-LED Single Filter – UV | UV (for DAPI/Hoechst) | Single UV LED | UV filter set | UV-compatible LP filter | DAPI, Hoechst nucleic acid staining |
| Epi-LED Single Filter – Green | 535 nm (Green) | Single 3W LED | Green filter set | 575 nm long-pass | Rhodamine, TRITC, PE |
| Epi-LED Dual Filter – Blue & Green | 480 nm + 535 nm | Dual 3W LEDs | Dual filter cubes with front selector | 510 nm & 575 nm LP | Immunofluorescence (FITC + TRITC) |
| Epi-LED Triple Filter – Blue, Green & UV | 480 nm + 535 nm + UV | Triple LED system | Multi-filter assembly | 510 nm, 575 nm, UV LP filters | Full-range fluorescence (FITC, TRITC, DAPI) |
The Magnus EpiLED Fluorescence Attachment is a versatile, cost-efficient, and high-performance fluorescence lighting solution for laboratories performing infectious disease diagnosis, immunology testing, parasitology, and molecular biology staining. Its compatibility with standard laboratory microscopes makes it an ideal plug-and-play upgrade for both clinical and research environments.
- Excitation Wavelengths: Single Filter - 450 nm (Royal Blue) Single Filter - 480 nm (Blue) Single Filter - UV (for DAPI/Hoechst) Single Filter - 535 nm (Green) Dual Filter - 480 nm + 535 nm (Blue & Green) Triple Filter – 480 nm + 535 nm + UV (Blue, Green & UV)
