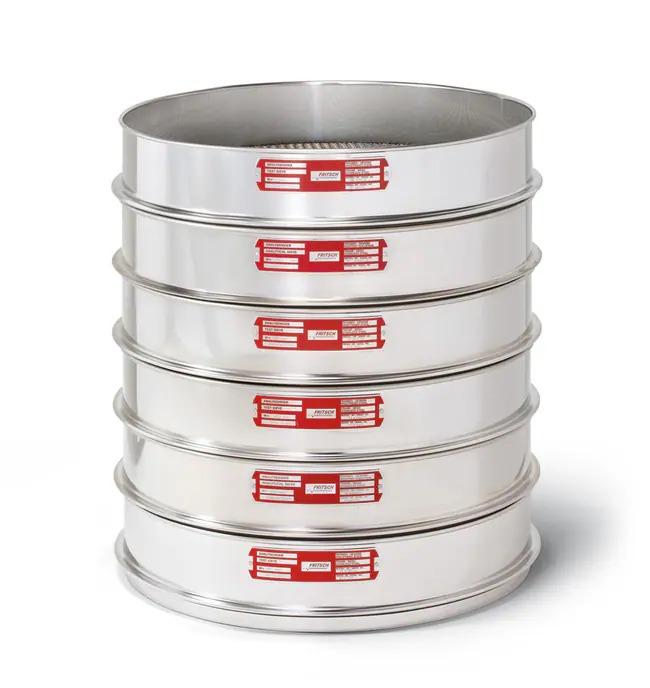

FRITSCH ANALYSETTE™ 18 Test Sieves (400x65 mm), according to ISO 3310-1, with compliance certificate

(0 review)

SKU: 34.0000.02

Brand: FRITSCH GmbH

UoM: sngls

11,950.79 GH¢

Mesh Width

Store Availability & Pickup

LabMart Limited - Tamale

NS-246, Via, 4388 Tamale-Kumbungu Rd, Tamale, Northern Region, Ghana

Not available

LabMart Limited

10 Rcecourse street, Accra, Greater Accra Region, Ghana

Not available

Add to cart

Estimated delivery: 4-8 weeks

The FRITSCH ANALYSETTE™ 18 Test Sieves (400 mm diameter, 65 mm height) are precision-engineered sieves designed for accurate and reproducible particle size analysis in both dry and wet sieving applications. Manufactured in accordance with ISO 3310-1 standards, each sieve is optically measured and supplied with an individual compliance certificate, ensuring full traceability and quality assurance.

Constructed from highly alloyed stainless steel, these sieves offer superior corrosion resistance, durability, and ease of cleaning. The groove-free mesh transition design prevents material retention and cross-contamination, making them ideal for critical laboratory and industrial applications.

Key Features

Feature	Description
ISO-certified accuracy	Manufactured according to ISO 3310-1 with compliance certificate
Wide mesh range	Available from 25 µm to 125 mm
Dual application	Suitable for both dry and wet sieving
High-quality construction	Made from highly alloyed stainless steel
Contamination prevention	Groove-free mesh transitions ensure clean separation
Durable and lightweight	Designed for long-term laboratory and industrial use
Precision measurement	Each sieve optically inspected for accuracy

Technical Specifications

Parameter	Specification
Sieve diameter	400 mm
Sieve height	65 mm
Material	Highly alloyed stainless steel
Standard	ISO 3310-1
Application	Dry and wet sieving
Mesh range	25 µm – 125 mm
Certification	Compliance certificate included

Product Variants

Mesh Width	Order No.	Mesh Width	Order No.
125 mm	34.0040.02	1.25 mm	34.3000.02
100 mm	34.0050.02	1.12 mm	34.3100.02
90 mm	34.0060.02	1 mm	34.3200.02
63 mm	34.0000.02	900 µm	34.3300.02
45 mm	34.0080.02	800 µm	34.3400.02
31.5 mm	34.0100.02	710 µm	34.3500.02
25 mm	34.0200.02	630 µm	34.3600.02
22.4 mm	34.0300.02	560 µm	34.3700.02
20 mm	34.0400.02	500 µm	34.3800.02
18 mm	34.0600.02	450 µm	34.3900.02
16 mm	34.0800.02	400 µm	34.4000.02
14 mm	34.0900.02	355 µm	34.4100.02
12.5 mm	34.1000.02	315 µm	34.4200.02
11.2 mm	34.1100.02	280 µm	34.4300.02
10 mm	34.1200.02	250 µm	34.4400.02
9 mm	34.1300.02	224 µm	34.4500.02
8 mm	34.1400.02	200 µm	34.4600.02
7.1 mm	34.1500.02	180 µm	34.4700.02
6.3 mm	34.1600.02	160 µm	34.4800.02
5.6 mm	34.1700.02	140 µm	34.4900.02
5 mm	34.1800.02	125 µm	34.5000.02
4 mm	34.2000.02	112 µm	34.5100.02
3.55 mm	34.2100.02	100 µm	34.5200.02
3.15 mm	34.2200.02	90 µm	34.5400.02
2.8 mm	34.2300.02	80 µm	34.5600.02
2.5 mm	34.2400.02	75 µm	34.5700.02
2 mm	34.2600.02	71 µm	34.5800.02
1.8 mm	34.2700.02	63 µm	34.6000.02
1.6 mm	34.2800.02	50 µm	34.6100.02
1.4 mm	34.2900.02	45 µm	34.6600.02
		40 µm	34.6800.02
		32 µm	34.6900.02
		25 µm	34.7000.02

The FRITSCH ANALYSETTE™ 18 Test Sieves (400 mm) deliver exceptional precision, durability, and compliance, making them ideal for laboratories and industries requiring reliable particle size analysis across a wide range of materials.

With their ISO-certified accuracy, corrosion-resistant construction, and extensive mesh size range, these sieves provide a complete and scalable solution for both routine and advanced sieving applications, ensuring consistent and audit-ready results in quality control and research environments.

Application: Particle size distribution

Material: Stainless steel

Storage Temperature: Ambient

Product Type: Laboratory Sieves

Product Brand: FRITSCH GmbH

Product Grade: Analytical grade
