The ASE-IR Kjeldahl Premium Workstation represents the pinnacle of Kjeldahl nitrogen determination systems. This premium, high-performance configuration is designed for laboratories that demand precision, flexibility, and safety in nitrogen and protein analysis.
The workstation supports infrared digestion of 12 samples simultaneously (InKjel 1225 TCP with temperature control) or block digestion of 20 samples (K 20). It includes a complete setup with digestion vessels, multi-level console, fume extraction unit, high-performance scrubber with additional cooling (ACS), and S5 steam distillation unit. Additionally, it allows the connection of an external titrator (e.g., TB 2) for fully automated workflows.
Key Features
Infrared Digestion (InKjel 1225 TCP):
- Direct infrared heating for rapid digestion; quartz heaters reach 830°C in 1 minute.
- Multi-level console with fume extraction unit and glass digestion vessels.
- Standard vessel size: 250 ml, with racks supporting 500 ml and 750 ml vessels for water analysis.
- Flexible conversion for different vessel sizes via exchangeable racks and fume extraction units.
- 25 freely configurable programs for block temperature and digestion time.
- One-button operation with menu navigation in local language.
- Fast, problem-free digestion of difficult samples with precision control.
Extraction System (behrosog 3):
- Environmentally friendly, no connection to water supply required.
- Adjustable airflow: 16–40 L/min.
- PTFE-coated double-head membrane pump with integrated droplet separator.
- Gas wash bottles (2000 ml each) for cooling and neutralizing gases.
- Transparent safety door, removable drip tray, and external on/off switch.
- Easy liquid exchange by emptying glass vessels.
Steam Distillation (S5):
- High-performance, safe distillation for daily laboratory use.
-
Safety features include:
- Door contact switch for overload or short-circuit protection.
- Mechanical overpressure safety valve.
- Vessel monitoring system.
- Automatic deactivation if the door is open.
- Resettable overtemperature thermostat.
- Cooling circuit monitoring via pressure switch.
- Temperature-regulated steam heating with solenoid valve control.
External Titration Integration:
- Compatible with external titrators (e.g., TB 2) for fully automated nitrogen determination.
- Enables seamless integration of titration into the Kjeldahl workflow.
Applications
- Nitrogen and protein determination in food and beverages
- Water and environmental analysis
- Agricultural testing laboratories
- Research and quality control laboratories
Technical Specifications
| Feature | Specification |
|---|---|
| Digestion Capacity | Infrared: 12 samples (InKjel 1225 TCP); Block: 20 samples (K 20) |
| Vessel Sizes | 250 ml (standard), 500 ml, 750 ml |
| Heating | Quartz infrared heaters, 830°C in 1 min |
| Programmable Programs | 25 freely configurable for block temperature and digestion time |
| Extraction | PTFE double-head membrane pump, integrated droplet separator, airflow 16–40 L/min, ACS cooling system |
| Distillation | S5 steam distillation with multiple safety mechanisms |
| External Titrator | Connection option (e.g., TB 2) |
| Operation | One-button programming, menu in local language |
| Safety Features | Door contact switch, overpressure valve, vessel monitoring, overtemperature thermostat, cooling circuit monitoring |
Advantages
- Premium, high-performance system for complete Kjeldahl workflows.
- Rapid, uniform infrared digestion with precise temperature control.
- Environmentally friendly extraction system with adjustable airflow.
- Safe and reliable steam distillation.
- Flexible configuration for multiple vessel sizes and external titration.
- Simplified, one-button operation with storeable applications for reproducible results.
The ASE-IR Kjeldahl Premium Workstation is designed for laboratories seeking the ultimate in precision, flexibility, and automation. By combining high-speed infrared digestion, advanced extraction, safe steam distillation, and optional titration integration, it ensures reproducible, accurate nitrogen and protein analysis while streamlining laboratory workflows. Ideal for research, quality control, and industrial applications, it represents a reliable, high-value investment for modern laboratories.
Datasheet
The ASE-IR Kjeldahl Premium Workstation represents the pinnacle of Kjeldahl nitrogen determination systems. This premium, high-performance configuration is designed for laboratories that demand precision, flexibility, and safety in nitrogen and protein analysis.
The workstation supports infrared digestion of 12 samples simultaneously (InKjel 1225 TCP with temperature control) or block digestion of 20 samples (K 20). It includes a complete setup with digestion vessels, multi-level console, fume extraction unit, high-performance scrubber with additional cooling (ACS), and S5 steam distillation unit. Additionally, it allows the connection of an external titrator (e.g., TB 2) for fully automated workflows.
Key Features
Infrared Digestion (InKjel 1225 TCP):
- Direct infrared heating for rapid digestion; quartz heaters reach 830°C in 1 minute.
- Multi-level console with fume extraction unit and glass digestion vessels.
- Standard vessel size: 250 ml, with racks supporting 500 ml and 750 ml vessels for water analysis.
- Flexible conversion for different vessel sizes via exchangeable racks and fume extraction units.
- 25 freely configurable programs for block temperature and digestion time.
- One-button operation with menu navigation in local language.
- Fast, problem-free digestion of difficult samples with precision control.
Extraction System (behrosog 3):
- Environmentally friendly, no connection to water supply required.
- Adjustable airflow: 16–40 L/min.
- PTFE-coated double-head membrane pump with integrated droplet separator.
- Gas wash bottles (2000 ml each) for cooling and neutralizing gases.
- Transparent safety door, removable drip tray, and external on/off switch.
- Easy liquid exchange by emptying glass vessels.
Steam Distillation (S5):
- High-performance, safe distillation for daily laboratory use.
-
Safety features include:
- Door contact switch for overload or short-circuit protection.
- Mechanical overpressure safety valve.
- Vessel monitoring system.
- Automatic deactivation if the door is open.
- Resettable overtemperature thermostat.
- Cooling circuit monitoring via pressure switch.
- Temperature-regulated steam heating with solenoid valve control.
External Titration Integration:
- Compatible with external titrators (e.g., TB 2) for fully automated nitrogen determination.
- Enables seamless integration of titration into the Kjeldahl workflow.
Applications
- Nitrogen and protein determination in food and beverages
- Water and environmental analysis
- Agricultural testing laboratories
- Research and quality control laboratories
Technical Specifications
| Feature | Specification |
|---|---|
| Digestion Capacity | Infrared: 12 samples (InKjel 1225 TCP); Block: 20 samples (K 20) |
| Vessel Sizes | 250 ml (standard), 500 ml, 750 ml |
| Heating | Quartz infrared heaters, 830°C in 1 min |
| Programmable Programs | 25 freely configurable for block temperature and digestion time |
| Extraction | PTFE double-head membrane pump, integrated droplet separator, airflow 16–40 L/min, ACS cooling system |
| Distillation | S5 steam distillation with multiple safety mechanisms |
| External Titrator | Connection option (e.g., TB 2) |
| Operation | One-button programming, menu in local language |
| Safety Features | Door contact switch, overpressure valve, vessel monitoring, overtemperature thermostat, cooling circuit monitoring |
Advantages
- Premium, high-performance system for complete Kjeldahl workflows.
- Rapid, uniform infrared digestion with precise temperature control.
- Environmentally friendly extraction system with adjustable airflow.
- Safe and reliable steam distillation.
- Flexible configuration for multiple vessel sizes and external titration.
- Simplified, one-button operation with storeable applications for reproducible results.
The ASE-IR Kjeldahl Premium Workstation is designed for laboratories seeking the ultimate in precision, flexibility, and automation. By combining high-speed infrared digestion, advanced extraction, safe steam distillation, and optional titration integration, it ensures reproducible, accurate nitrogen and protein analysis while streamlining laboratory workflows. Ideal for research, quality control, and industrial applications, it represents a reliable, high-value investment for modern laboratories.

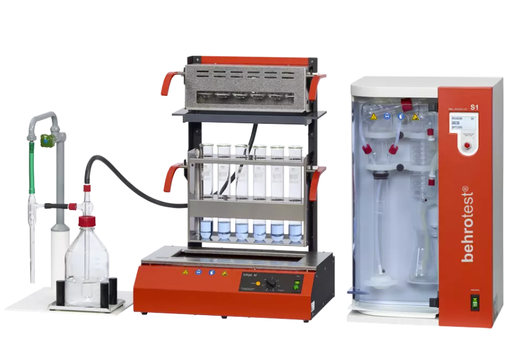

![[B00637679] BEHR Behrotest® Kjeldahl Basic Configuration Workstation (ASB-IR)](/web/image/product.product/46202/image_512/%5BB00637679%5D%20BEHR%20Behrotest%C2%AE%20Kjeldahl%20Basic%20Configuration%20Workstation%20%28ASB-IR%29%20?unique=96c5da2)

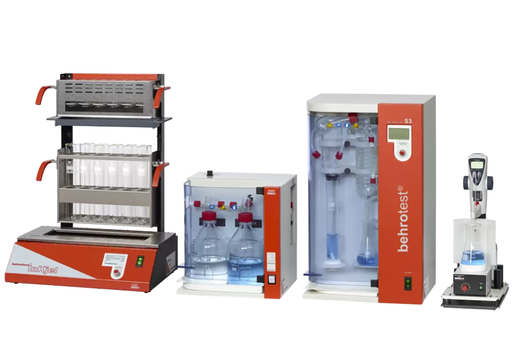

![[B00637680] BEHR Behrotest® Kjeldahl Exclusive configuration Workstation (ASM-IR)](/web/image/product.product/46203/image_512/%5BB00637680%5D%20BEHR%20Behrotest%C2%AE%20Kjeldahl%20Exclusive%20configuration%20Workstation%20%28ASM-IR%29?unique=96c5da2)
