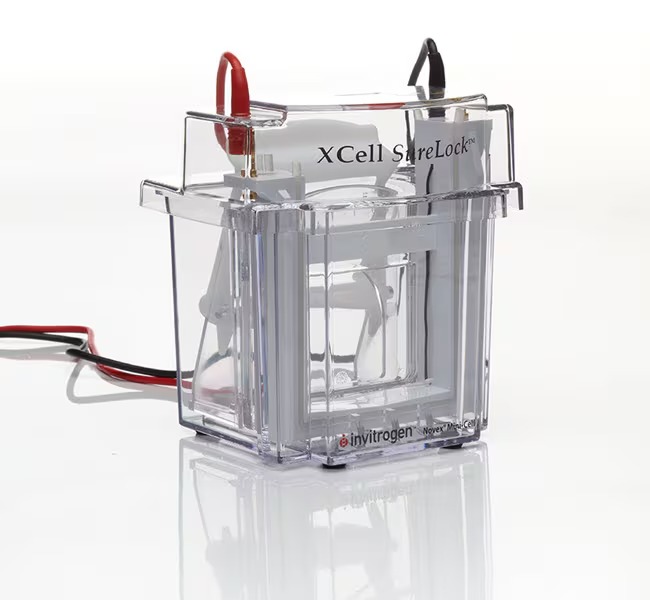

Invitrogen™ XCell SureLock™ Mini-Cell

The Invitrogen™ XCell SureLock™ Mini-Cell is a vertical mini-protein gel electrophoresis system designed for fast, reliable, and leak-free electrophoretic separation of proteins using precast or handcast mini gels. With a robust and user-friendly design, this system is compatible with all Invitrogen mini precast gels (such as Novex™ and NuPAGE™) and Surecast handcast gels, making it highly versatile for molecular biology, biochemistry, and protein analysis labs.

Featuring a gel tension wedge locking mechanism, the XCell SureLock system offers quick, clamp-free assembly, ensuring an even seal and leak-proof gel run every time. It also supports wet transfer protocols when paired with the XCell II Blot Module for western, northern, or southern blotting.

Key Features & Benefits

✅ Quick, Secure Gel Setup

• No clamps needed—uses an intuitive gel tension wedge to lock gels in place.
• Even pressure distribution prevents leaks and setup errors.

✅ Versatile Gel Compatibility

• Compatible with Invitrogen Novex™, NuPAGE™, and Surecast mini gels.
• Supports both precast and handcast gels, providing flexibility for lab workflows.

✅ Mini-Gel Format for Efficient Runs

• Supports up to two 8 x 8 cm mini gels simultaneously.
• Enables fast protein separations in a compact format.

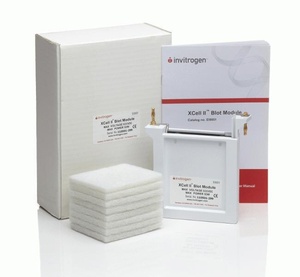

✅ Blotting Capability with XCell II Blot Module (Sold Separately)

• Converts to a wet transfer unit for western, southern, or northern blots.
• Requires <200 mL of buffer, conserving reagents and reducing costs.
• Compatible with blot sizes up to 9 x 9 cm.

✅ Uniform Electrical Field for Consistent Results

• Constructed with platinized titanium and stainless steel electrodes.
• Delivers even current distribution across the gel.

✅ Compact, Durable Design

• Rugged construction ideal for frequent use in busy labs.
• One-year warranty included.

Product Specifications

Use Cases & Applications

1. Protein Electrophoresis

• Perform SDS-PAGE, native PAGE, and other gel electrophoresis methods.
• Suitable for protein sizing, purity assessment, and expression analysis.

2. Western Blotting (Wet Transfer)

• Use with the XCell II Blot Module for protein transfer to membranes.
• Enables western blot, southern blot, and northern blot workflows.

3. Routine Molecular Biology

• Ideal for daily protein analysis in teaching, research, and clinical labs.
• Used in workflows requiring high reproducibility and ease of use.

Instructions for Use

Electrophoresis Setup:

1. Insert one or two gels into the core assembly.
2. Slide the gel tension wedge into position and lock.
3. Add running buffer to the upper and lower chambers.
4. Load samples and run gel with recommended voltage (up to 500 VDC).
5. Disassemble post-run and clean thoroughly for reuse.

Optional Wet Transfer Setup:

• Replace core assembly with the XCell II Blot Module.
• Prepare transfer sandwich and run with <200 mL of transfer buffer.

Storage & Maintenance

• Store at room temperature when not in use.
• Rinse thoroughly after each use to prevent salt buildup or buffer corrosion.
• Inspect electrodes periodically to ensure uniform current distribution.

Why Choose the XCell SureLock™ Mini-Cell?

✅ Clamp-free setup with gel tension wedge for leak-proof performance

✅ Compatible with all Invitrogen mini gels (precast and handcast)

✅ Convertible for western blotting with minimal buffer use

✅ Durable and compact design, perfect for daily protein work

✅ Backed by a 1-year warranty and industry-trusted performance

The XCell SureLock™ Mini-Cell is the go-to choice for simple, fast, and reliable protein electrophoresis, making it ideal for researchers, educators, and industrial labs seeking efficiency and versatility in gel-based workflows.
