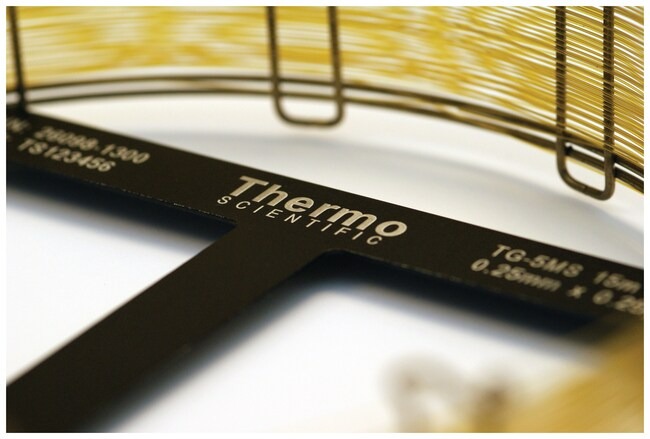

Thermo Scientific™ TraceGOLD™ TG-624SilMS GC Columns, 1.4μm film thickness, 0.25mm I.D., 30m length

The Thermo Scientific™ TraceGOLD™ TG-624SilMS GC Column is a premium mid-polarity capillary column engineered for high-performance analysis of volatile organic compounds (VOCs), residual solvents, alcohols, and oxygenated compounds. Featuring a 1.4 μm thick film, 0.25 mm internal diameter, and 30 m length, this column delivers exceptional retention and separation of highly volatile analytes, making it ideal for pharmaceutical, environmental, petrochemical, and forensic GC/MS applications.

Built with the advanced TraceGOLD™ TG-624 SilMS stationary phase, which is chemically equivalent to 6% cyanopropylphenyl / 94% dimethylpolysiloxane, the column provides superior inertness, minimal bleed, and excellent peak symmetry. Its low-bleed design enhances sensitivity and reproducibility, particularly in GC/MS systems where stable baselines and low detection limits are essential.

Equivalent to USP G43 and comparable to industry-standard columns such as DB-624, VF-624ms, CP-Select 624 CB, and ZB-624, the TG-624SilMS is a trusted choice for regulated laboratories and high-precision analytical workflows.

Key Features and Advantages

Low-Bleed, High-Stability Stationary Phase

• Mid-polarity phase optimized for volatile and semi-volatile compounds
• Low bleed minimizes baseline noise and improves detection sensitivity
• Excellent reproducibility and consistent retention times

Thick Film for Enhanced Volatile Retention

• 1.4 μm film thickness improves retention of highly volatile compounds
• Ideal for headspace GC and trace-level volatile analysis
• Prevents early elution and improves separation efficiency

Exceptional Thermal Stability

• Maximum operating temperature up to 320°C
• Supports demanding temperature programs
• Maintains phase stability and column integrity

Superior Inertness and Peak Shape

• Minimizes analyte adsorption and peak tailing
• Ensures accurate quantification of active and polar compounds
• Ideal for trace analysis and difficult compounds

Optimized for GC and GC/MS Systems

• Fully compatible with GC/MS platforms, including quadrupole and ion trap systems
• Provides low background signal and improved signal-to-noise ratio

Applications

The TraceGOLD TG-624SilMS GC column is ideal for:

• Residual solvent analysis (USP <467>)
• Volatile organic compound (VOC) analysis
• Pharmaceutical quality control and impurity testing
• Environmental air and water monitoring
• Alcohol and solvent analysis
• Oxygenated compound analysis
• Headspace GC applications
• Petrochemical and industrial solvent testing
• Forensic toxicology

Technical Specifications

Comparison with Similar Column Phases

Unique Advantages

• Optimized specifically for volatile organic compound analysis
• Thick film improves retention of highly volatile analytes
• Low bleed enhances sensitivity and MS compatibility
• Equivalent to industry-standard 624-type columns
• Ideal for pharmaceutical and regulated laboratory environments
• Long operational lifetime with consistent performance

The Thermo Scientific™ TraceGOLD™ TG-624SilMS GC Column (30 m × 0.25 mm × 1.4 μm) delivers exceptional performance for volatile organic compound and residual solvent analysis. With its low-bleed mid-polarity stationary phase, superior inertness, and thick film design, it ensures reliable, reproducible, and highly sensitive GC and GC/MS analysis. This column is an ideal choice for pharmaceutical, environmental, petrochemical, and research laboratories requiring accurate volatile compound separation.
