Hamilton Vertical Water Still, 220–240 V

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

Capacity

This combination does not exist.

Specifications:

Application	Water Purification
Storage Temperature	Ambient
Product Type	Laboratory Equipment
Product Brand	Hamilton Laboratory Glass
Product Grade	Analytical grade

Overview
Resource

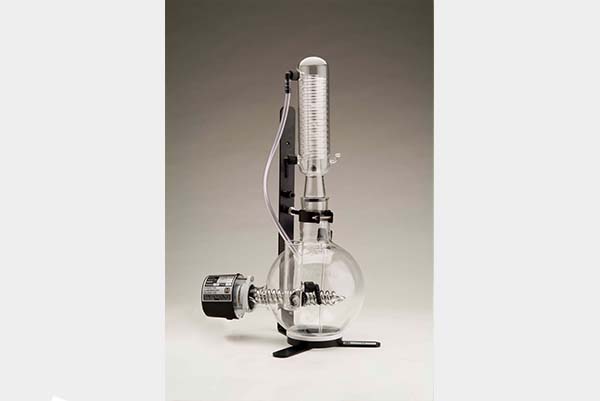

The Hamilton Vertical Water Still is a traditional, time-proven laboratory water distillation system that has been manufactured and trusted for many years. Designed for reliability, simplicity, and low capital cost, this model remains a popular choice for laboratories requiring dependable distilled water without the complexity of cabinet or fully automated systems.

The still features a double spiral (coil) condenser mounted on a spherical boiling chamber, ensuring efficient condensation and consistent distillate quality. A constant-level water control device regulates water flow, while a built-in thermostatic cut-out provides essential safety protection. A robust mounting bracket allows the unit to be installed on either a bench or wall, offering installation flexibility.

Key Features & Benefits

Traditional vertical design with long-established reliability
Double coil condenser for efficient heat exchange
Spherical boiling chamber for uniform boiling
Constant-level water control device
Thermostatic cut-out protection for safe operation
High-quality borosilicate glassware
Wall or bench mountable using sturdy supplied bracket
Low initial cost and straightforward maintenance

Water Quality Specifications (All Models)

pH: 5.5 – 6.5
Conductivity: < 2.5 µS/cm
Resistivity: 0.4 MΩ·cm
Distillate Temperature: < 35 °C

Hamilton Vertical Water Still – Model Variants

Model Variant	Output (L/hr)	Heating System	Power Supply	Fuse Rating	Min. Water Pressure	Thermostatic Cut-Out	Water Supply Cut-Out	Mounting Options	Net Weight
Vertical Water Still – 4 L/hr	4	1 × 3 kW Metal Heater	220–240 V	13 Amp	≥ 5 psi	Yes	No	Wall / Bench	10 kg
Vertical Water Still – 8 L/hr	8	2 × 3 kW Metal Heaters	220–240 V	13 Amp	≥ 5 psi	Yes	No	Wall / Bench	12 kg

Applications

Educational and teaching laboratories
General research laboratories
Chemical and biological laboratories
Glassware rinsing
Routine distilled water preparation

Installation & Operation

Requires standard mains water supply (≥5 psi)
Operates on single-phase 220–240 V power
Vertical configuration minimizes bench footprint
Manual operation with constant-level water control
Suitable where robustness and simplicity are priorities

Positioning Within the Hamilton Range

Vertical Water Still: Traditional design, low cost, proven durability

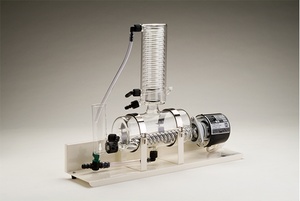

Budget Water Still (WSB): Entry-level, compact, education-focused
Economy Water Still (WSE): Lightweight, improved ergonomics

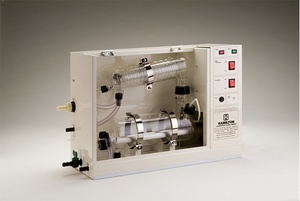

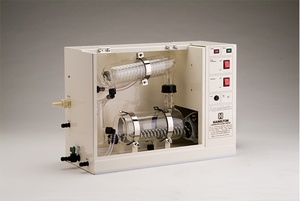

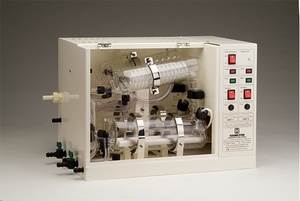

Aquamatic Cabinet Water Still (AWC): Fully automatic, highest safety and convenience

The Hamilton Vertical Water Still is a reliable, cost-effective laboratory distillation solution with a long service history. Its classic vertical design, efficient condenser system, and essential safety features make it ideal for laboratories seeking dependable distilled water production with minimal complexity and investment.
