Hamilton Economy Water Still, 4 L/hr with 2 x 1.5Kw Silica Heater
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Water Purification | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Hamilton Laboratory Glass | ||
| Product Grade | Analytical grade | ||

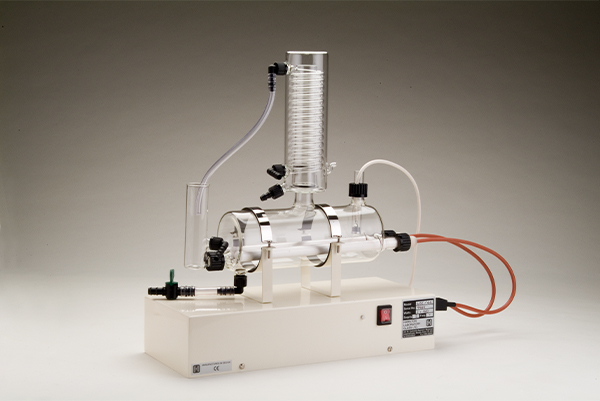

The Hamilton Economy Water Still (WSE/4S) is a compact, cost-effective laboratory water distillation unit designed to deliver the same high-quality distilled water performance as Hamilton’s 4 L/hr cabinet water stills, but in a lighter, more economical format.
Constructed with high-quality borosilicate glassware and equipped with a flow control valve, the WSE/4S produces pyrogen-free distilled water suitable for routine laboratory applications. Its compact footprint and lower weight make it ideal for small laboratories, teaching labs, and facilities with limited space or budget constraints.
Key Features & Benefits
- Produces 4 litres/hour of pyrogen-free distilled water
- Economy design with the same distillation performance as cabinet models
- Borosilicate glassware for chemical resistance and durability
- Flow control valve for optimized water usage
- Thermostatic cut-out protection for safe operation
- Wall or bench mountable for flexible installation
- Lightweight construction for easy handling and installation
Water Quality Specifications
- pH: 5.5 – 6.5
- Conductivity: < 2.5 µS/cm
- Resistivity: 0.4 MΩ·cm
- Distillate Temperature: < 35 °C
- Pyrogen Content: Pyrogen-free
Technical Specifications
| Parameter | Specification |
|---|---|
| Output | 4 Litres per Hour |
| Heating System | 2 × 1.5 kW Metal Heaters |
| Power Supply | 220–240 V |
| Fuse Rating | 13 Amp |
| Minimum Water Pressure | 5 psi |
| Thermostatic Cut-Out | Yes |
| Water Supply Cut-Out | No |
| Mounting Options | Wall or Bench |
| Net Weight | 8 kg |
Applications
- Clinical and research laboratories
- Educational and teaching laboratories
- Media and reagent preparation
- Glassware rinsing
- General laboratory distilled water supply
Installation & Operation
- Requires standard mains water supply (≥5 psi)
- Operates on single-phase 220–240 V power
- Simple setup with minimal maintenance requirements
- Suitable for laboratories that do not require fully automatic cabinet systems
Comparison Note
- Economy Water Still (WSE/4S): Compact, lightweight, cost-effective, manual water control

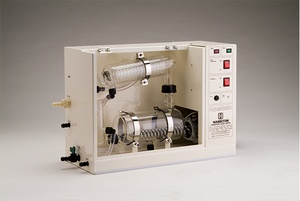

- Cabinet Water Still (AWC series): Fully automatic shut-off, enclosed cabinet, higher safety automation
The Hamilton Economy Water Still WSE/4S is a reliable and affordable solution for laboratory distilled water production, offering high-purity, pyrogen-free water in a compact and lightweight design. It is an excellent choice for small laboratories, teaching institutions, and routine applications where dependable distilled water is required without the added cost of a full cabinet system.
