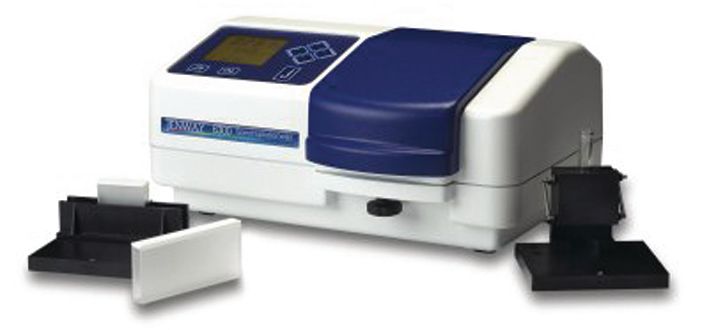

Jenway® 6305 Benchtop UV/Visible Spectrophotometer
Catalog No :
CAS Number :
Brand :
In Stock
Absorbance range: −0.3 - 1.999 A
Photometric accuracy: Up to 0.5% T @ 220, 340 nm
Photometric range: 0 – 199.9% T; −300 – 1999 °C
Wavelength range: 198 - 1000 nm
Calibration: Blank with a single standard or factor: Up to six standards
Interfaces: Analogue and RS232 serial
Light source Xenon flash
Specifications:
| Application | Spectrophotometry |
| Storage Temperature | Ambient |
| Product Type | Benchtop meters |
| Product Brand | Cole-Parmer |
| Product Grade | Analytical grade |
The Jenway® 6305 Benchtop UV/Visible Spectrophotometer is a compact, reliable instrument designed for routine UV-Vis absorbance, transmittance, and concentration measurements in laboratory environments. With a wide wavelength range of 198–1000 nm, the instrument supports a variety of analytical applications in education, environmental testing, food analysis, and general laboratory research.
Engineered for ease of use, the 6305 features a clear multi-parameter display that provides prompts, error messages, mode indication, and concentration units. The instrument also recalls previous operating settings upon power-up, helping streamline routine workflows and ensuring consistent measurement conditions.
Equipped with a Xenon flash lamp light source, the spectrophotometer provides fast warm-up times, low signal drift, and excellent reliability for daily laboratory use. The system supports absorbance, percent transmittance (%T), and concentration measurement modes, making it suitable for a wide range of analytical methods.
For data handling and integration, the instrument includes analog and RS-232 outputs, allowing connection to printers or computers for data recording and analysis. The supplied 63-Zero PC software and interface cable further enhance data management capabilities.
The Jenway 6305 is an excellent choice for teaching laboratories, routine analytical testing, and quality control environments where dependable UV-Visible spectrophotometry is required.
Key Features
- Wide wavelength range: 198–1000 nm
- Measurement modes: Absorbance (A), Transmittance (%T), and Concentration
- Compact benchtop design ideal for laboratories with limited space
- Xenon flash lamp for stable light output and fast warm-up
- Multi-parameter display showing measurement status and prompts
- Automatic recall of previous settings after power-up
- Analog and RS-232 interfaces for printer and PC connectivity
- Low drift and high reliability for routine laboratory analysis
Applications
- Educational and teaching laboratories
- Environmental and water analysis
- Food and beverage testing
- Chemical and biochemical analysis
- Quality control laboratories
- Routine spectrophotometric assays
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Jenway® 6305 UV/Visible Spectrophotometer |
| Catalog Number | 99968-69 |
| Wavelength Range | 198 – 1000 nm |
| Spectral Bandwidth | 8 nm (6 nm in UV range) |
| Photometric Range | 0 – 199.9 %T |
| Absorbance Range | –0.3 to 1.999 A |
| Concentration Range | –300 to 1999 C |
| Absorbance Accuracy | ±0.04 A at 1.000 A |
| Transmittance Accuracy | ±1 %T at 10 %T |
| Wavelength Accuracy | ±2 nm |
| Light Source | Xenon Flash Lamp |
| Electrical Requirements | 115 VAC, 60 Hz |
Included Accessories
- 63-Zero PC software
- Interface cable
- 100 disposable polystyrene cuvettes (10 mm path length)
- 1.8 m power cord (US plug)
The Jenway® 6305 UV/Visible Spectrophotometer combines ease of use, reliable performance, and compact design, making it an ideal solution for laboratories performing routine spectrophotometric measurements across a wide wavelength range.
