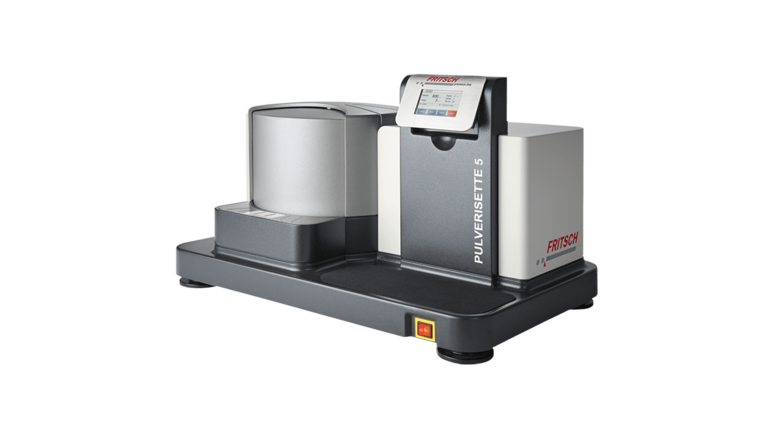

FRITSCH PULVERISETTE™ 5 Premium Planetary Mill
Catalog No :
CAS Number :
Brand :
In Stock
Instrument without grinding bowls and balls
ServoLOCK clamping system included
Voltage: 200-240 V/1~, 50-60 Hz, 2,800 watts
Specifications:
| Application | Milling & Particle Sizing | Warranty | 1 Year |
| Max Speed | 1600 RPM | ||
| Storage Temperature | Ambient | ||
| Product Type | Planetary Ball Mills | ||
| Product Brand | FRITSCH GmbH | ||
| Product Grade | Analytical grade | ||
The FRITSCH PULVERISETTE™ 5 Planetary Mill is a high-performance, premium laboratory mill designed for rapid, reproducible grinding, mixing, homogenisation, and mechanical alloying of a wide range of materials. Engineered for demanding applications, it delivers exceptional grinding efficiency down to the nano range, making it a powerful solution for advanced research and routine laboratory work.
Equipped with an extra-strong 2.2 kW drive system and capable of generating centrifugal accelerations up to 64 g, the PULVERISETTE™ 5 ensures fast comminution of hard, brittle, soft, and moist samples with consistent and reliable results.
Key Features
| Feature | Description |
|---|---|
| High-performance drive | 2.2 kW motor enabling high-energy grinding |
| Extreme acceleration | Up to 64 g for rapid particle size reduction |
| High rotational speed | Up to 800 rpm (bowl speed up to 1600 rpm) |
| Dual grinding stations | Simultaneous processing of up to 2 samples (up to 4 with accessories) |
| ServoLOCK system | Motor-driven automatic clamping for safety and reproducibility |
| Intelligent safety controls | Automatic shutoff for imbalance and unsafe conditions |
| RFID bowl detection | Ensures correct operation and optimized grinding parameters |
| Touchscreen control | Intuitive interface with programmable settings |
| Data connectivity | USB interface for process data transfer |
| Optional MillControl software | Enables monitoring of temperature and gas pressure |
Working Principle
The PULVERISETTE™ 5 operates based on the planetary ball milling principle, where grinding bowls rotate on their own axis while simultaneously revolving in the opposite direction on a main disk.
This dual motion generates intense impact and friction forces, causing grinding balls to accelerate and collide with the sample material at high speed. The result is rapid size reduction and effective homogenisation, even down to sub-micron and nano-scale particles (<0.1 µm).
Applications
The PULVERISETTE™ 5 is ideal for:
- Geology and mineralogy
- Metallurgy and mechanical alloying
- Ceramics and advanced materials
- Nanotechnology and material science
- Pharmaceuticals and life sciences
- Chemistry and chemical processing
- Biological sample preparation
Technical Specifications
| Parameter | Specification |
|---|---|
| Working principle | Impact and friction |
| Number of grinding stations | 2 |
| Sample capacity | 15 – 450 ml |
| Max. feed size | Up to 10 mm |
| Final fineness | < 0.1 µm |
| Grinding time | ~3 minutes to analytical fineness |
| Grinding modes | Wet and dry |
| Inert gas grinding | Yes |
| Grinding bowl sizes | 125, 150, 250, 420, 500 ml |
| Grinding ball size | 0.1 – 20 mm |
| Materials (bowls/balls) | Agate, zirconium oxide, stainless steel, tungsten carbide, silicon nitride |
| Max. rotational speed (disk) | 100 – 800 rpm |
| Max. bowl speed | 1600 rpm |
| Centrifugal acceleration | Up to 64 g |
| Power supply | 200–240 V, 50–60 Hz, 2800 W |
| Noise level | Approx. 84 dB |
| Weight | 110 kg |
| Dimensions (W × D × H) | 82 × 52 × 48 cm |
Accessories & Configuration Options

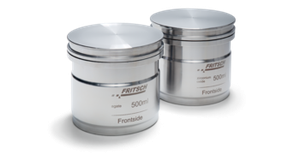

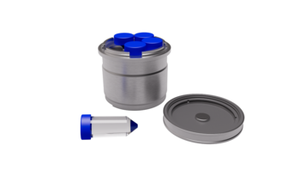

- Grinding bowls (125 – 500 ml)
- Grinding balls (various materials and sizes)
- Stacking rings for multi-sample processing
- Gassing lids for inert atmosphere grinding

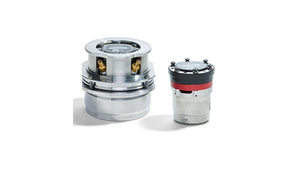

- EASY GTM system for pressure and temperature monitoring
- MillControl software for process automation
The FRITSCH PULVERISETTE™ 5 Planetary Mill is a versatile, high-performance solution for laboratories requiring fast, precise, and reproducible grinding results, even at nano-scale levels. Its combination of powerful drive technology, advanced safety systems, and intelligent control features makes it ideal for both routine sample preparation and advanced research applications.
For laboratories seeking maximum efficiency, flexibility, and process reliability, the PULVERISETTE™ 5 stands out as a premium planetary milling solution capable of handling complex and demanding materials with ease.
