ABE MEDIAWELL 10 Trolley
Catalog No :
CAS Number :
Brand :
In Stock

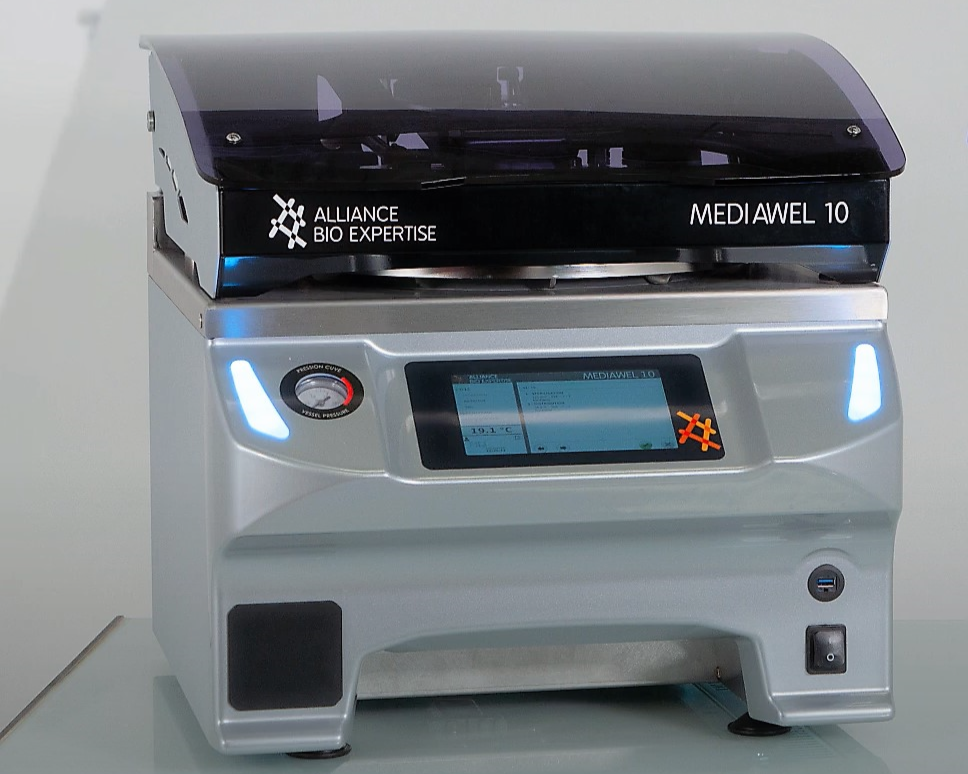

Bespoke trolley for the MEDIAWEL 10 media preparator
Specifications:
| Application | Microbiology, sterilization | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Laboratory Equipment | ||
| Product Brand | Alliance Bio Expertise | ||
| Product Grade | Microbiology grade | ||

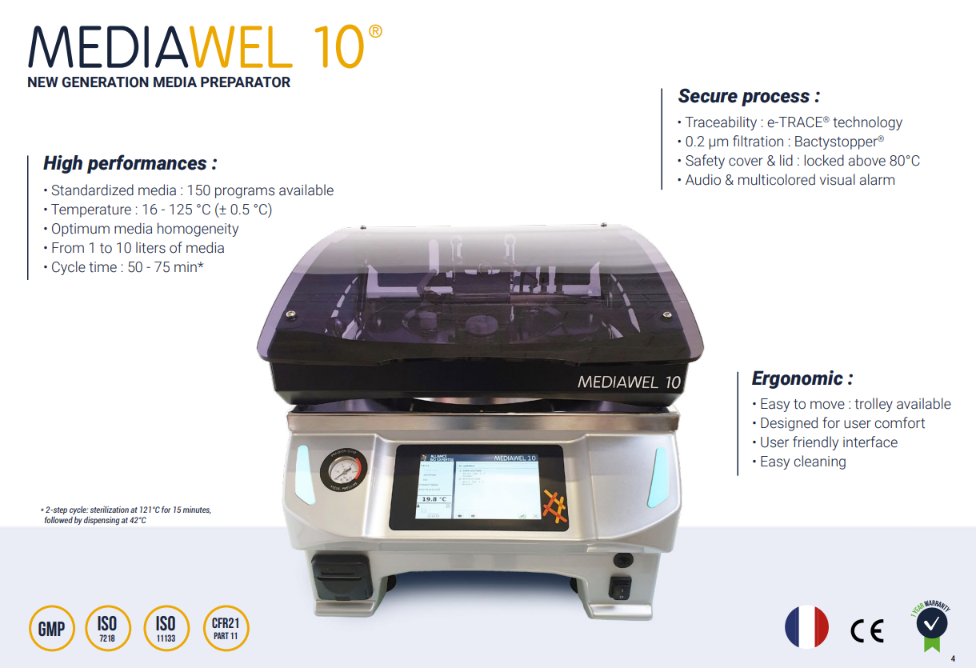

MEDIAWEL 10 is a high-performance automated media preparator designed to simplify and standardize the preparation of culture media in microbiology laboratories. With a working capacity from 1 to 10 liters, and an extended capacity up to 12 liters under fixed-position conditions, the system provides precise heating, sterilization, cooling, homogenization, and dispensing support in one compact unit.
Designed for laboratories that require reproducible media preparation, MEDIAWEL 10 combines accurate temperature control, continuous magnetic stirring, real-time monitoring, programmable cycles, and full traceability. It is ideal for routine microbiology, research, quality control, and high-throughput laboratory environments.
Key Features
| Feature | Details |
|---|---|
| Automated Media Preparation | Supports heating, sterilization, cooling, homogenization, and dispensing workflows |
| Working Capacity | 1–10 L; up to 12 L when the unit is not moved |
| Accurate Temperature Control | ±0.5 °C after temperature stabilization, measured directly inside the medium |
| Sterilization Control | Adjustable sterilization temperature from 25 °C to 123 °C |
| Programmable Sterilization Time | 1–99 minutes for flexible media processing |
| Continuous Homogenization | Double magnetic stirring blades ensure consistent media mixing |
| Real-Time Monitoring | WIFI or Ethernet connectivity for monitoring from PC, smartphone, or tablet |
| Full Traceability | Export cycle data in PDF or CSV format via USB |
| Program Memory | Stores up to 50 programs for repeatable workflows |
| Safety Lid Lock | Lid locks automatically when temperature reaches 80 °C |
| Pressure Monitoring | Integrated pressure gauge and safety valve support safe operation |
| Additive Capability | Allows addition of blood, antibiotics, or supplements during the cycle |
| Compact Design | Can be bench-mounted or placed on an optional trolley for mobility |
Applications
MEDIAWEL 10 is suitable for:
- Automated culture media preparation
- Microbiology laboratory media production
- Sterilization and homogenization of agar and broth media
- Preparation of blood agar and antibiotic-supplemented media
- Quality control and routine laboratory workflows
- Research and academic microbiology laboratories
- Pharmaceutical and industrial microbiology labs
- High-throughput laboratories requiring reproducible media preparation
- Laboratories requiring cycle documentation and traceability
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | MEDIAWEL 10 Automated Media Preparator |
| Capacity | 1–12 L; from 10–12 L, MEDIAWEL should not be moved |
| Sterilization Time | 1–99 minutes |
| Sterilization Temperature | 25 °C to 123 °C |
| Dispensing Temperature | 25 °C to 80 °C |
| Temperature Accuracy | ±0.5 °C after temperature stabilization |
| Temperature Probe | 1 PT100 probe |
| Stirring Speed | 1–5 speed levels; 40–60 RPM |
| Homogenization | Continuous homogenization via double magnetic stirring blades |
| Pressure Monitoring | 1 pressure gauge |
| Dispensing Ports | Adapters for 8 mm dispensing ports |
| Weight | 63 kg |
| Dimensions | 500 mm W x 620 mm H x 515 mm D |
| Electrical Supply | 230 V, 50–60 Hz, 16 A by phase, 3600 W |
| Country of Origin | France |
Supplied Accessories
| Included Item | Details |
|---|---|
| MEDIAWEL Unit | Automated media preparator |
| USB Key | Includes user manual and quality report |
| Bucket | MEDW2107 |
| Double Magnetic Stirrer | MEDW2105 |
| Sampling Tube | MEDW2103 |
| Stirrer Bearing Kit | MEDW4100 |
| BactiStopper | Calibrated sterile carded cotton, pack of 50, MEDW3003 |
| Inlet and Outlet Water Tubing | 4 m tubing with 4 tubing clamps, MEDW4012 |
| Draining Basin | MEDW2106 |
| Real-Time Data Monitoring License | 3 months free access |
Ideal Users
| User Type | Benefit |
|---|---|
| Microbiology Laboratories | Reliable preparation of culture media for routine microorganism cultivation |
| Research Institutions | Reproducible media preparation for microbiological studies |
| Quality Control Laboratories | Standardized and traceable preparation of agar and broth media |
| High-Throughput Labs | Efficient production of larger media volumes with reduced manual handling |
| Pharmaceutical and Industrial Labs | Supports documented, repeatable media preparation workflows |
Storage & Handling
Install the MEDIAWEL 10 on a stable laboratory bench or compatible trolley. Ensure adequate ventilation, proper water connections, and access to the required electrical supply. For 10–12 L operations, the unit should remain stationary and should not be moved during use. Follow the manufacturer’s operating instructions for sterilization cycles, dispensing setup, cleaning, and maintenance.
MEDIAWEL 10 is a compact, automated, and traceable solution for laboratories that require consistent and efficient culture media preparation. With accurate temperature control, programmable sterilization, continuous stirring, safety features, and real-time data monitoring, it helps microbiology laboratories improve productivity, reproducibility, and workflow control.
