Compact & Energy-Efficient Biosafety Cabinet for Operator and Environmental Protection
The BIOBASE Class I Biological Safety Cabinet (BYKG-II, 680mm Wide) is a compact, high-efficiency containment unit designed for operator and environmental protection during microbiological work. Equipped with a 99.999% efficiency HEPA filter, UV sterilization system, soft-touch LCD control panel, and low-noise airflow system, this cabinet is an ideal solution for laboratories, pharmaceutical testing, and research applications.
This Class I biosafety cabinet ensures safe handling of biohazardous materials by providing negative airflow containment, making it suitable for pathogen handling, forensic research, and microbiological applications.
Key Features & Benefits
✅ Class I Containment Protection – Safeguards personnel & environment from hazardous aerosols
✅ HEPA Filtration (99.999% Efficiency at 0.3µm) – Removes airborne contaminants & particulates
✅ UV Sterilization System (253.7 nm) – Provides efficient decontamination before & after use
✅ LCD Digital Display & Soft-Touch Control Panel – Allows real-time monitoring of cabinet functions
✅ Energy-Saving, Low-Noise Operation (≤55dB) – Ensures quiet & efficient lab performance
✅ Memory Function for Power Failure Recovery – Restores previous settings after power outage
✅ Durable Stainless Steel Work Surface (304 Grade) – Easy to clean and corrosion-resistant
✅ Stable Airflow System – Maintains uniform air velocity to prevent contamination leaks
✅ Compact 680mm Width Design – Space-saving solution for small laboratories
Technical Specifications
| Attribute | Details |
|---|---|
| Model | BYKG-II |
| External Dimensions (W × D × H) | 700 × 550 × 900 mm |
| Internal Work Zone (W × D × H) | 680 × 540 × 500 mm |
| HEPA Filter Efficiency | 99.999% at 0.3µm |
| Airflow Velocity | 0.75 - 1.0 m/s |
| Noise Level | ≤55dB |
| Lighting System | 8W LED Lamp |
| UV Lamp (253.7 nm) | 20W × 1 (Efficient Sterilization) |
| Power Consumption | 160W |
| Main Body Construction | Cold-rolled steel with antibacterial powder coating |
| Work Table Material | 304 Stainless Steel |
| Power Supply | AC 220V ±10%, 50/60Hz; AC 110V ±10%, 60Hz (Optional) |
| Interlock Features | Prevents simultaneous activation of UV lamp & fan |
| Caster Wheels | Not included for BYKG-II model |
Standard Accessories
✔ 8W LED Lamp (1 pc)
✔ UV Lamp (20W, 1 pc)
✔ Base Stand (Included)
Optional Accessories
✔ Electric Height Adjustable Base Stand
Applications
🔬 Microbiology & Biotech Research – Ensures operator and environmental safety
🦠 Clinical & Diagnostic Laboratories – Designed for safe handling of infectious materials
🧪 Pharmaceutical & Drug Development – Provides controlled workspace for microbiological testing
⚗️ Food & Beverage Microbiology – Supports pathogen detection in food safety testing
🛠 Forensic & Veterinary Labs – Ensures biosafety compliance for research & sample processing
Usage Guidelines
- Activate UV sterilization before and after use to ensure optimal decontamination
- Monitor LCD display for airflow velocity and HEPA filter status
- Adjust working height for ergonomic use (optional electric base stand available)
- Regularly clean stainless steel work surface to maintain sterile conditions
- Replace HEPA filters as recommended to maintain biosafety compliance
Regulatory & Safety Information
⚠️ For Research Use Only. Not intended for clinical diagnostics or therapeutic applications.
⚠️ HEPA Filter Maintenance Required – Follow scheduled filter replacements for continued efficiency.
⚠️ UV Lamp Precautions – Avoid direct eye & skin exposure when in use.
Why Choose the BIOBASE Class I Biological Safety Cabinet (BYKG-II)?
🔹 HEPA Filtration with High Efficiency (99.999%) – Provides maximum containment protection
🔹 Compact Yet Powerful (680mm Wide) – Ideal for small lab spaces
🔹 User-Friendly LCD Display & Soft-Touch Control Panel – Enhances ease of operation
🔹 Energy-Efficient & Low-Noise Operation – Ensures quiet lab environments
🔹 UV Sterilization & Antibacterial Coating – Prevents cross-contamination & ensures safety
For bulk orders, technical support, or additional information, contact LabMart Limited today.
Brochure: Class I Biological Safety Cabinet
Compact & Energy-Efficient Biosafety Cabinet for Operator and Environmental Protection
The BIOBASE Class I Biological Safety Cabinet (BYKG-II, 680mm Wide) is a compact, high-efficiency containment unit designed for operator and environmental protection during microbiological work. Equipped with a 99.999% efficiency HEPA filter, UV sterilization system, soft-touch LCD control panel, and low-noise airflow system, this cabinet is an ideal solution for laboratories, pharmaceutical testing, and research applications.
This Class I biosafety cabinet ensures safe handling of biohazardous materials by providing negative airflow containment, making it suitable for pathogen handling, forensic research, and microbiological applications.
Key Features & Benefits
✅ Class I Containment Protection – Safeguards personnel & environment from hazardous aerosols
✅ HEPA Filtration (99.999% Efficiency at 0.3µm) – Removes airborne contaminants & particulates
✅ UV Sterilization System (253.7 nm) – Provides efficient decontamination before & after use
✅ LCD Digital Display & Soft-Touch Control Panel – Allows real-time monitoring of cabinet functions
✅ Energy-Saving, Low-Noise Operation (≤55dB) – Ensures quiet & efficient lab performance
✅ Memory Function for Power Failure Recovery – Restores previous settings after power outage
✅ Durable Stainless Steel Work Surface (304 Grade) – Easy to clean and corrosion-resistant
✅ Stable Airflow System – Maintains uniform air velocity to prevent contamination leaks
✅ Compact 680mm Width Design – Space-saving solution for small laboratories
Technical Specifications
| Attribute | Details |
|---|---|
| Model | BYKG-II |
| External Dimensions (W × D × H) | 700 × 550 × 900 mm |
| Internal Work Zone (W × D × H) | 680 × 540 × 500 mm |
| HEPA Filter Efficiency | 99.999% at 0.3µm |
| Airflow Velocity | 0.75 - 1.0 m/s |
| Noise Level | ≤55dB |
| Lighting System | 8W LED Lamp |
| UV Lamp (253.7 nm) | 20W × 1 (Efficient Sterilization) |
| Power Consumption | 160W |
| Main Body Construction | Cold-rolled steel with antibacterial powder coating |
| Work Table Material | 304 Stainless Steel |
| Power Supply | AC 220V ±10%, 50/60Hz; AC 110V ±10%, 60Hz (Optional) |
| Interlock Features | Prevents simultaneous activation of UV lamp & fan |
| Caster Wheels | Not included for BYKG-II model |
Standard Accessories
✔ 8W LED Lamp (1 pc)
✔ UV Lamp (20W, 1 pc)
✔ Base Stand (Included)
Optional Accessories
✔ Electric Height Adjustable Base Stand
Applications
🔬 Microbiology & Biotech Research – Ensures operator and environmental safety
🦠 Clinical & Diagnostic Laboratories – Designed for safe handling of infectious materials
🧪 Pharmaceutical & Drug Development – Provides controlled workspace for microbiological testing
⚗️ Food & Beverage Microbiology – Supports pathogen detection in food safety testing
🛠 Forensic & Veterinary Labs – Ensures biosafety compliance for research & sample processing
Usage Guidelines
- Activate UV sterilization before and after use to ensure optimal decontamination
- Monitor LCD display for airflow velocity and HEPA filter status
- Adjust working height for ergonomic use (optional electric base stand available)
- Regularly clean stainless steel work surface to maintain sterile conditions
- Replace HEPA filters as recommended to maintain biosafety compliance
Regulatory & Safety Information
⚠️ For Research Use Only. Not intended for clinical diagnostics or therapeutic applications.
⚠️ HEPA Filter Maintenance Required – Follow scheduled filter replacements for continued efficiency.
⚠️ UV Lamp Precautions – Avoid direct eye & skin exposure when in use.
Why Choose the BIOBASE Class I Biological Safety Cabinet (BYKG-II)?
🔹 HEPA Filtration with High Efficiency (99.999%) – Provides maximum containment protection
🔹 Compact Yet Powerful (680mm Wide) – Ideal for small lab spaces
🔹 User-Friendly LCD Display & Soft-Touch Control Panel – Enhances ease of operation
🔹 Energy-Efficient & Low-Noise Operation – Ensures quiet lab environments
🔹 UV Sterilization & Antibacterial Coating – Prevents cross-contamination & ensures safety
For bulk orders, technical support, or additional information, contact LabMart Limited today.
![[11231BBC86] Biobase Class Ii A2 Biosafety Cabinet 11231Bbc86 With Base Stand & Remote Control, 700Mm Wide](/web/image/product.product/7281/image_512/%5B11231BBC86%5D%20Biobase%20Class%20Ii%20A2%20Biosafety%20Cabinet%2011231Bbc86%20With%20Base%20Stand%20%26%20Remote%20Control%2C%20700Mm%20Wide?unique=96c5da2)
![[BYKG-I] Biobase Clean Bench Class I Biological Safety Cabinet Bykg - I](/web/image/product.product/7282/image_512/%5BBYKG-I%5D%20Biobase%20Clean%20Bench%20Class%20I%20Biological%20Safety%20Cabinet%20Bykg%20-%20I?unique=96c5da2)
![[BYKG-II] Biobase Clean Bench Class I Biological Safety Cabinet Bykg - Ii](/web/image/product.product/7283/image_512/%5BBYKG-II%5D%20Biobase%20Clean%20Bench%20Class%20I%20Biological%20Safety%20Cabinet%20Bykg%20-%20Ii?unique=96c5da2)
![[F0A025200000] SafeFAST Premium 212, Class II Microbiological Safety Cabinet, 4ft/1.2m](/web/image/product.product/25110/image_512/%5BF0A025200000%5D%20SafeFAST%20Premium%20212%2C%20Class%20II%20Microbiological%20Safety%20Cabinet%2C%204ft-1.2m?unique=aa1ae57)
![[HR1200-IIA2] Haier Biomedical Biological Safety Cabinet, 1.2m (Internal Lenght: 1.31 Meters)](/web/image/product.product/33218/image_512/%5BHR1200-IIA2%5D%20Haier%20Biomedical%20Biological%20Safety%20Cabinet%2C%201.2m%20%28Internal%20Lenght:%201.31%20Meters%29?unique=f3713d6)
![[HR1200-IIA2-N] Haier Biomedical NSF Biological Safety Cabinet with base stands (Internal Lenght: 1230mm)](/web/image/product.product/18053/image_512/%5BHR1200-IIA2-N%5D%20Haier%20Biomedical%20NSF%20Biological%20Safety%20Cabinet%20with%20base%20stands%20%28Internal%20Lenght:%201230mm%29?unique=f3713d6)

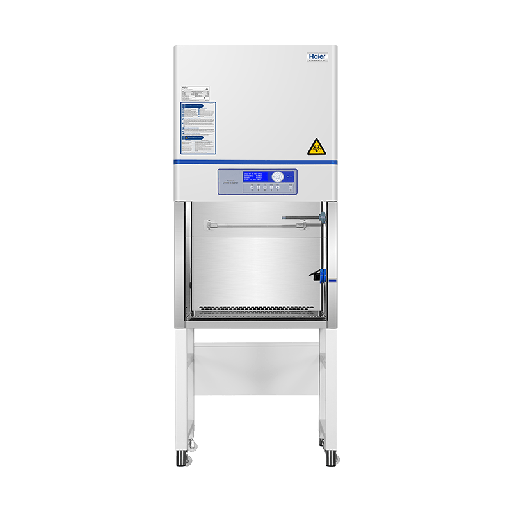

![[HR700-IIA2] Mini Biological Safety Cabinet, 600mm wide](/web/image/product.product/33217/image_512/%5BHR700-IIA2%5D%20Mini%20Biological%20Safety%20Cabinet%2C%20600mm%20wide?unique=f3713d6)
