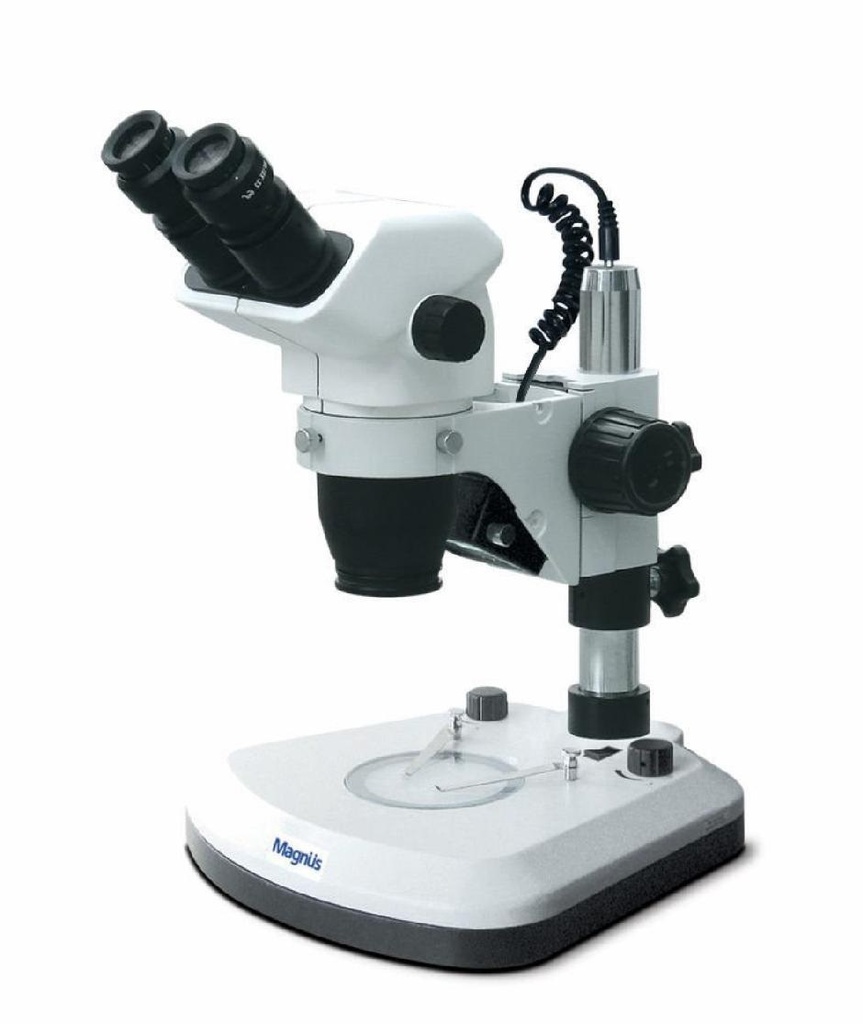

Magnus MagZoom ZM 6 Zoom Stereo Microscope (1:6.7) with LED Illumination
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | microscopy | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Microscopes | ||
| Product Brand | Magnus | ||
| Product Grade | Analytical grade | ||
The MagZoom ZM 6 Zoom Stereo Microscope is a compact, ergonomically designed stereomicroscope engineered for high-quality three-dimensional observation in laboratory, educational, and industrial inspection environments. Featuring a smooth 1:6.7 zoom ratio, integrated maintenance-free LED illumination, and a robust pillar stand with adjustable working distance, the ZM 6 provides exceptional flexibility for routine dissection, specimen handling, and precision inspection tasks.
Its wide magnification range, comfortable binocular viewing head, and stable rack-and-pinion focusing system make it an ideal choice for research laboratories, quality control, and teaching applications.
Key Features
- High-performance zoom stereo microscope with true 3D imaging
- Smooth zoom system with 1:6.7 zoom ratio
- Compact and ergonomic pillar stand with adjustable working distance
- Integrated transmitted and reflected maintenance-free LED illumination
- Independent intensity regulation for top and bottom lighting
- Wide magnification range 6.7× to 45× (standard configuration)
- Built-in 45° binocular observation tube for comfortable viewing
- Adjustable interpupillary distance (IPD) and diopter correction
- Rack-and-pinion focus drive with adjustable tension
- Supplied with stage plates, glass plate, clips, and dust cover
Optical Specifications
| Parameter | Specification |
|---|---|
| Microscope Type | Zoom Stereo Microscope |
| Model | MagZoom ZM 6 |
| Zoom Ratio | 1:6.7 |
| Magnification Range (Standard) | 6.7× – 45× |
| Objective | Built-in 1× objective |
| Working Distance (Objective) | 100 mm |
| Eyepieces | Paired Widefield WF 10× / 22 mm |
| Viewing Head | Binocular, 45° inclined |
| Interpupillary Distance (IPD) | 54 – 76 mm |
| Diopter Adjustment | ±5 mm |
Stand and Focus System
| Feature | Description |
|---|---|
| Stand Type | Ergonomic pillar stand |
| Adjustable Working Distance Range | 26 mm – 286 mm |
| Focus Mechanism | Rack-and-pinion focus drive |
| Focus Control | 360° rotatable with adjustable tension |
Illumination System
The MagZoom ZM 6 is equipped with:
- Integrated transmitted (bottom) LED illumination
- Integrated reflected (top) LED illumination
- Independent brightness control for each light source
- Universal power supply: 110–240V / 50Hz
LED lighting is maintenance-free, energy-efficient, and provides stable illumination for delicate specimens.
Stage and Accessories Included
Standard set includes:
- 100 mm glass plate
- Black & white stage plate with clips
- Dust cover
- Complete microscope system ready for use
Optional Magnification Expansion
The magnification range can be extended from:
- 2× up to 225×
with optional auxiliary objectives and eyepieces, allowing customization for specialized inspection and research requirements.
Applications
The MagZoom ZM 6 is suitable for:
- Biological dissection and specimen observation
- Parasitology and entomology laboratories
- Medical and educational teaching labs
- Electronics and component inspection
- Gemstone and jewelry evaluation
- Precision engineering and quality control
The MagZoom ZM 6 Zoom Stereo Microscope combines ergonomic design, integrated LED illumination, flexible working distance adjustment, and reliable zoom performance in a compact stereomicroscope platform. With its broad standard magnification range and optional expansion capability, it is an excellent solution for laboratories and industries requiring versatile, high-quality stereoscopic imaging for dissection, inspection, and precision observation workflows.
