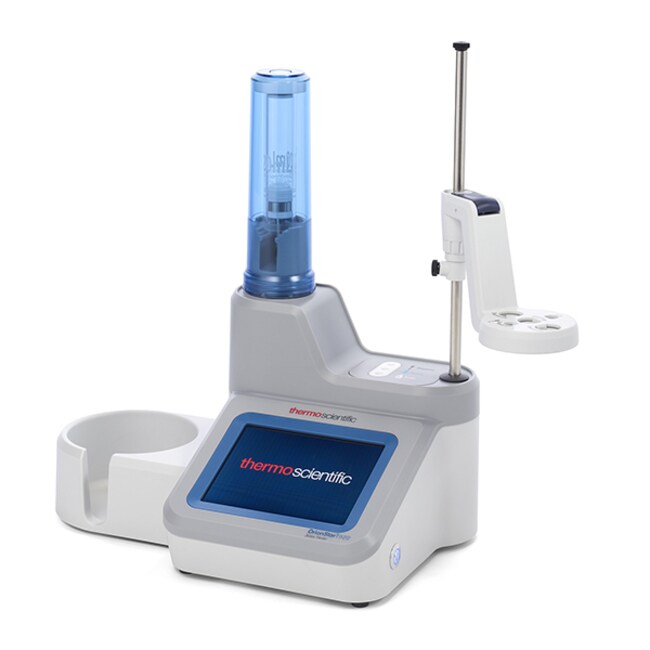

Thermo Scientific™ Orion Star™ T920 Redox Titrator
Catalog No :
CAS Number :
Brand :
In Stock
Specifications:
| Application | Titration | Warranty | 1 Year |
| Storage Temperature | Ambient | ||
| Product Type | Titrators | ||
| Product Brand | Thermo Fisher Scientific™ | ||
| Product Grade | Analytical grade | ||
The Thermo Scientific™ Orion Star™ T920 Redox Titrator is an advanced automated titration system designed for precise and reproducible redox titrations in laboratory environments. By integrating Thermo Scientific’s proven electrochemistry technology with a high-precision automated dispensing system, the T920 simplifies titration workflows while improving analytical reliability compared with traditional manual titration methods.
The system automates the entire titration process—from setup and calibration to titration and data recording—ensuring consistent analytical conditions and reducing operator variability. With programmable methods and automated calculation features, the instrument enables laboratories to perform routine redox analyses quickly and accurately.
The Orion Star T920 is particularly well suited for applications in food and beverage analysis, environmental monitoring, wastewater testing, chemical laboratories, and research institutions where accurate determination of redox-active compounds is required.
Key Features
Automated Redox Titration
- Fully automated titration workflow
- Consistent analytical conditions for reproducible results
- Enables unattended operation to improve laboratory throughput
Flexible Titration Techniques
- Equivalence point titrations (1 or 2 equivalence points)
- Preset mV endpoint titrations (1–3 endpoints)
- Supports direct titration and back titration
Programmable Methods
- Save up to 10 user-defined titration methods
- Password protection option for method security
- Import/export methods via USB flash drive
Large Color Touchscreen Interface
- 5.7-inch capacitive color touchscreen display
- Resolution: 640 × 480
- Clear visualization of titration curves, results, and system instructions
- Guided titration setup workflow
Precision Dispensing System
- High-precision automated burette drive
- 25,600 micro-steps per motor revolution
- Over 2 million micro-steps across full burette stroke
- Smooth and highly accurate titrant delivery
Applications
The Orion Star T920 Redox Titrator supports a wide range of analytical applications including:
Food and Beverage Analysis
- Sulfite (SO₂) determination in wine and juice
- Reducing sugar analysis
- Vitamin C (ascorbic acid) determination
- Peroxide value analysis in edible oils
Environmental Testing
- Dissolved oxygen determination using Winkler titration
- Wastewater redox analysis
Soil and Agricultural Analysis
- Organic matter determination in soil
Chemical and Industrial Laboratories
- General redox titration analysis
- Quality control testing of redox-active compounds
Orion Star T920 Standard Kit
The START9201 Redox Titrator Standard Kit includes:
- Orion Star T920 Redox Titrator
- 9778BNWP glass-body redox electrode
- 20 mL burette
- Stirrer probe
- Dispenser probe
- Standard tubing kit
- 1 L plastic bottle
- GL38 bottle cap with two ports and drying tube
- Computer cable
- USB drive with documentation
- Universal power supply (110–240 V)
The included 9778BNWP ORP electrode features a durable glass body, providing chemical resistance and reliable measurements across a wide range of sample types.
Data Management and Connectivity
Data Storage
-
Stores up to 100 data sets for:
- Sample titration
- Titrant standardization
- Calibration
- Direct measurements
Data Export
- Export data as CSV or PDF files
- Transfer data via USB connectivity
Connectivity
-
3 USB ports for:
- Printer
- USB flash drive
- Computer integration
Measurement Specifications
| Parameter | Specification |
|---|---|
| mV Range | −2000.0 to +2000.0 mV |
| mV Accuracy | ±0.2 mV |
| mV Resolution | 0.1 mV |
| Precision | 0.5% RSD |
| Temperature Accuracy | ±0.2 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Range | −5 to +100 °C |
Instrument Specifications
| Parameter | Specification |
|---|---|
| Display | 5.7″ color capacitive touchscreen |
| Dimensions | 10 × 16 × 14 in (25.4 × 40.6 × 35.6 cm) |
| Memory | Non-volatile storage |
| Power Supply | 100–240 V AC |
| Operating Temperature | 5–40 °C |
| Humidity Range | 5–85% RH (non-condensing) |
| Protection Rating | IP51 |
Certifications and Compliance
The Orion Star T920 complies with key laboratory safety and performance standards:
- CE Certification
- TÜV 3-in-1
- FCC Compliance
- EN/IEC 61326-1
- IEC 61010
These certifications ensure safe operation in regulated laboratory environments.
Ordering Information
| Catalog Number | Description |
|---|---|
| START9200 | Orion Star T920 Redox Titrator (instrument only) |
| START9201 | Orion Star T920 Redox Titrator Standard Kit with 9778BNWP Redox Electrode |
The Thermo Scientific™ Orion Star™ T920 Redox Titrator provides laboratories with a modern automated solution for performing redox titrations with improved precision, reproducibility, and efficiency. Its intuitive touchscreen interface, programmable methods, automated dispensing system, and integrated data management capabilities make it an excellent choice for laboratories conducting sulfite, vitamin C, dissolved oxygen, peroxide value, and other redox-based analyses. Designed for reliability and ease of use, the Orion Star T920 enhances laboratory productivity while ensuring high-quality analytical results.
- Model: Titrator Only Titrator Standard Kit with 9778BNWP Redox Electrode
