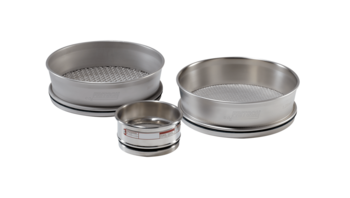

FRITSCH ANALYSETTE™ 3 Test Sieves (200 mm Dia., 50 mm Height), According to ISO 3310-1 with Compliance Certificate
Catalog No :
CAS Number :
Brand :
Availability :
In Stock
Specifications:
| Application | Particle size distribution |
| Material | Stainless steel |
| Storage Temperature | Ambient |
| Product Type | Laboratory Sieves |
| Product Brand | FRITSCH GmbH |
| Product Grade | Analytical grade |
The FRITSCH ANALYSETTE™ 3 Test Sieves are high-precision analytical sieves designed for accurate and reproducible particle size analysis in laboratory environments.
Manufactured in accordance with ISO 3310-1, each sieve features a stainless steel frame and woven wire mesh, ensuring mechanical stability, corrosion resistance, and long-term durability.
Supplied with a compliance certificate, these test sieves are ideal for quality control, research, and regulated laboratory applications, delivering consistent and traceable results across a wide particle size range from 63 mm down to 20 µm.
Key Features
-
ISO 3310-1 Certified Accuracy
- Guaranteed mesh precision and reproducibility
- Suitable for regulated laboratory environments
-
High-Quality Stainless Steel Construction
- Corrosion-resistant frame and mesh
- Long-lasting and dimensionally stable
-
Wide Measurement Range
- Mesh sizes from 63 mm to 20 µm
- Covers coarse to fine particle analysis
-
Compliance Certificate Included
- Ensures traceability and audit readiness
-
Optimized for ANALYSETTE™ 3
- Fully compatible with FRITSCH sieve shakers
- Suitable for dry and wet sieving
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard | ISO 3310-1 |
| Diameter | 200 mm |
| Height | 50 mm |
| Material | Stainless Steel (Frame & Mesh) |
| Mesh Range | 63 mm – 20 µm |
| Certification | Compliance Certificate Included |
Ordering Information
| Order No. | Description |
|---|---|
| 30.0000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 63 mm mesh |
| 30.0005.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 45 mm mesh |
| 30.0100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 31.5 mm mesh |
| 30.0200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 25 mm mesh |
| 30.0300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 22.4 mm mesh |
| 30.0400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 20 mm mesh |
| 30.0500.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 19 mm mesh |
| 30.0600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 18 mm mesh |
| 30.0800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 16 mm mesh |
| 30.0900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 14 mm mesh |
| 30.1000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 12.5 mm mesh |
| 30.1100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 11.2 mm mesh |
| 30.1200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 10 mm mesh |
| 30.1300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 9 mm mesh |
| 30.1400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 8 mm mesh |
| 30.1500.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 7.1 mm mesh |
| 30.1600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 6.3 mm mesh |
| 30.1700.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 5.6 mm mesh |
| 30.1800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 5 mm mesh |
| 30.1900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 4.5 mm mesh |
| 30.2000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 4 mm mesh |
| 30.2100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 3.55 mm mesh |
| 30.2200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 3.15 mm mesh |
| 30.2300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 2.8 mm mesh |
| 30.2400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 2.5 mm mesh |
| 30.2500.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 2.24 mm mesh |
| 30.2600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 2 mm mesh |
| 30.2700.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1.8 mm mesh |
| 30.2800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1.6 mm mesh |
| 30.2900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1.4 mm mesh |
| 30.3000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1.25 mm mesh |
| 30.3100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1.12 mm mesh |
| 30.3200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 1 mm mesh |
| 30.3300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 900 µm mesh |
| 30.3305.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 850 µm mesh |
| 30.3400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 800 µm mesh |
| 30.3500.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 710 µm mesh |
| 30.3600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 630 µm mesh |
| 30.3605.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 600 µm mesh |
| 30.3700.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 560 µm mesh |
| 30.3800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 500 µm mesh |
| 30.3900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 450 µm mesh |
| 30.4000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 400 µm mesh |
| 30.4100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 355 µm mesh |
| 30.4200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 315 µm mesh |
| 30.4205.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 300 µm mesh |
| 30.4300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 280 µm mesh |
| 30.4400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 250 µm mesh |
| 30.4500.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 224 µm mesh |
| 30.4505.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 212 µm mesh |
| 30.4600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 200 µm mesh |
| 30.4700.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 180 µm mesh |
| 30.4800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 160 µm mesh |
| 30.4805.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 150 µm mesh |
| 30.4900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 140 µm mesh |
| 30.5000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 125 µm mesh |
| 30.5100.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 112 µm mesh |
| 30.5105.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 106 µm mesh |
| 30.5200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 100 µm mesh |
| 30.5400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 90 µm mesh |
| 30.5600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 80 µm mesh |
| 30.5700.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 75 µm mesh |
| 30.5800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 71 µm mesh |
| 30.6000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 63 µm mesh |
| 30.6200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 56 µm mesh |
| 30.6300.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 53 µm mesh |
| 30.6400.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 50 µm mesh |
| 30.6600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 45 µm mesh |
| 30.6800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 40 µm mesh |
| 30.6900.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 38 µm mesh |
| 30.7000.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 36 µm mesh |
| 30.7200.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 32 µm mesh |
| 30.7600.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 25 µm mesh |
| 30.7800.03 | Sieve, stainless steel, 200 mm dia., 50 mm height, 20 µm mesh |
Applications
- Particle size distribution analysis
- Food and agricultural testing
- Pharmaceutical and chemical quality control
- Environmental and soil analysis
- Construction materials testing
- Research and development laboratories
Unique Advantages
- High precision and compliance with international standards
- Wide range of mesh sizes for versatile applications
- Durable stainless steel construction
- Traceable results with compliance certification
- Seamless integration with FRITSCH sieve systems
Comparison Guide
| Feature | ASTM E11 Sieves (8") | ISO 3310 Sieves (200 mm) |
|---|---|---|
| Standard | ASTM E11 | ISO 3310-1 |
| Region | US / International ASTM markets | Europe / International ISO markets |
| Diameter | 8" (203 mm) | 200 mm |
| Mesh Labeling | Mesh number & inch | Metric (mm / µm) |
| Applications | Construction, aggregates, geotech | Pharma, food, general lab |
For optimal particle size analysis:
- Use stacked sieve configurations for multi-fraction separation
- Combine with AUTOSIEVE software for automated evaluation
- Select mesh sizes strategically to match your sample distribution
The FRITSCH ANALYSETTE™ 3 Test Sieves (200 mm) provide a comprehensive, precise, and reliable solution for particle size analysis across a wide range of industries.
With ISO-certified accuracy, durable construction, and extensive mesh size options, they are essential tools for laboratories requiring consistent and traceable analytical results.
