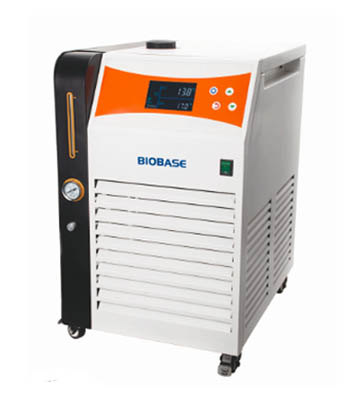

Biobase Recirculating Chiller with adjustable temperature control

Catalog No :

CAS Number :

Brand :

Availability :

In Stock

Temperature Control Range: 5 °C ~ 40°C
Temperature Stability: ±0.3°C
Temperature Sensor: PT100
Pump Flow Rate: 20L/min
Cooling Capacity: 1.2Kw
Pump Capacity Pressure: 0~1.5bar
Filling Volume Liters: 8L
Power Supply: AC220V±10%, 50Hz

Termini e condizioni
Garanzia di rimborso di 30 giorni
Spedizione: 2-3 giorni lavorativi

    This combination does not exist.

    Place Inquiry

    This combination does not exist.

    Specifications:


    Features:
    * Cooling system adopt TECUMSEH compressor in order to ensure cooling efficiency, and reduce noise.
    * PID temperature controlling technology is adopted. Cooling method
    is not the traditional start-stop type, EEV technology improve the stability.
    * Over-temperature protection and auto-alarm function is used in refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value.
    * Water level observation window and automatic water level detection device, automatic alarm when low liquid level.
    * Water current detection device is adopted. When external cycle closed or blocked, internal cycle will be switched automatically.
    * High performance circulating water pump guarantee the long time continuous running, and good sealing avoid leakage. The pressure of pump is 0~1.5 bar, adjustment is available by rotary knob. Pressure value is displayed.
    * Color LCD screen display more running data and dynamic identifier. Easy to monitor.Product Paramenters

    ModelFC1200
    Temp. Control Range5°C ~ 40°C
    Temp. ControlPID
    Temp. Stability±0.3°C
    Temp. SensorPT100
    Display Resolution0.1°C
    Pump Flow Rate20L/min
    Cooling Consumption1.2KW
    RefrigerantR134a
    Pump Capacity Pressure0-1.5 bar
    Filling Volume8L
    Power SupplyAC220V±10%, 50Hz
    External Size(W*D*H)550*400*650mm
    Package Size(W*D*H)810*640*980mm
    Gross Weight87kg
